5

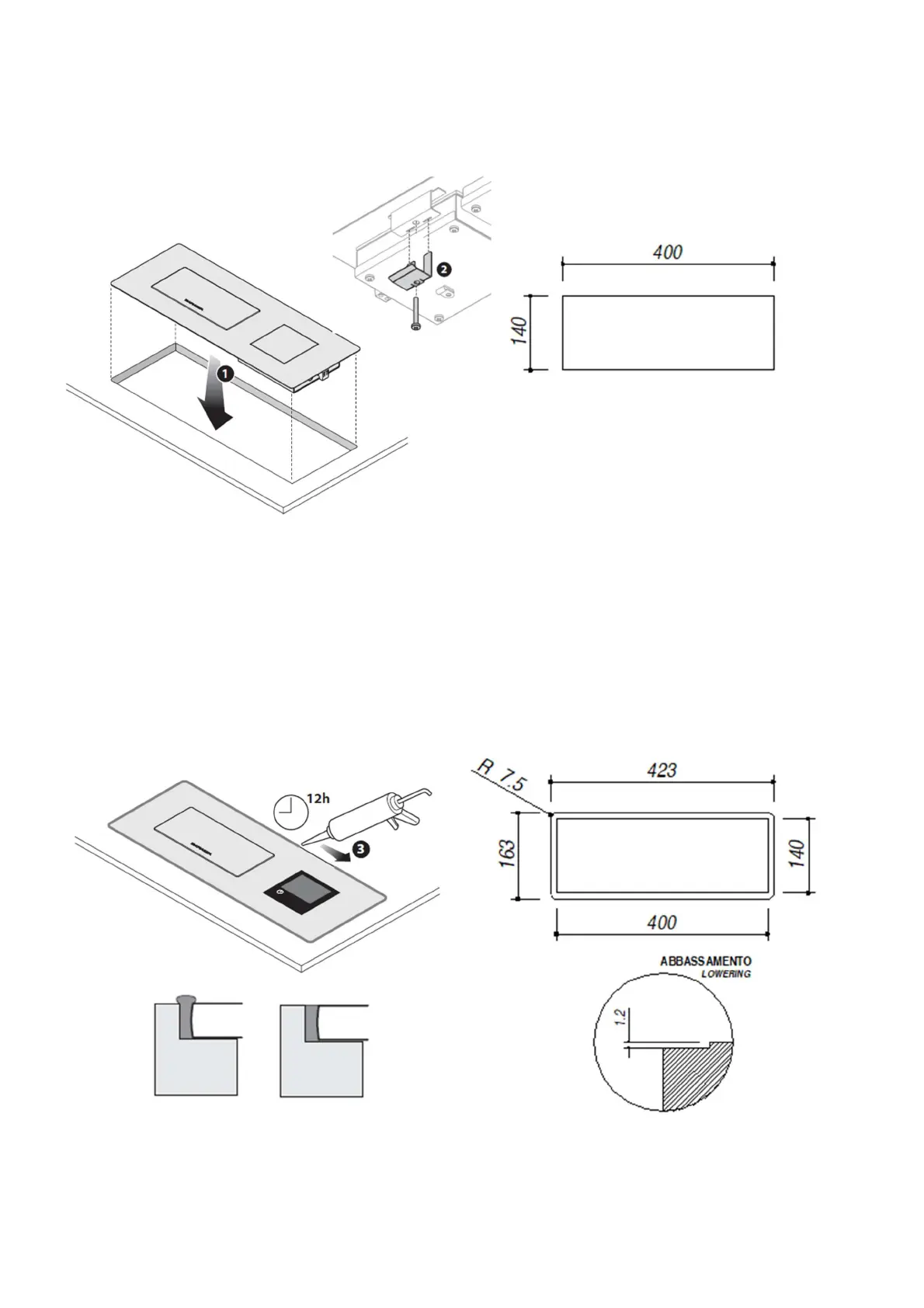

INCASSO
BUILT
-
IN
Sistemare l’apparecchiatura sopra il foro di incasso
spingendola contro il top
.
Bloccare l’apparecchiatura con le viti e le staffe
date in dotazione
.
Arrange the appliance above the embedded hole .
secure it using the screws and brackets provided
.
FILOTOP
FLUSH
Sistemare l’apparecchiatura sopra il foro di incasso
spingendola contro il top
.
Bloccare l’apparecchiatura con le viti e le staffe
date in dotazione .
Sigillare la fessura tra piano ed abbassamento con
silicone
e pulire l’eccesso.
Arrange the appliance above the embedded hole .
secure it using the screws and brackets provided
.
Seal the gap between the panel and lowering with
silicone and remove any excess
