7. Advanced
The item is focused

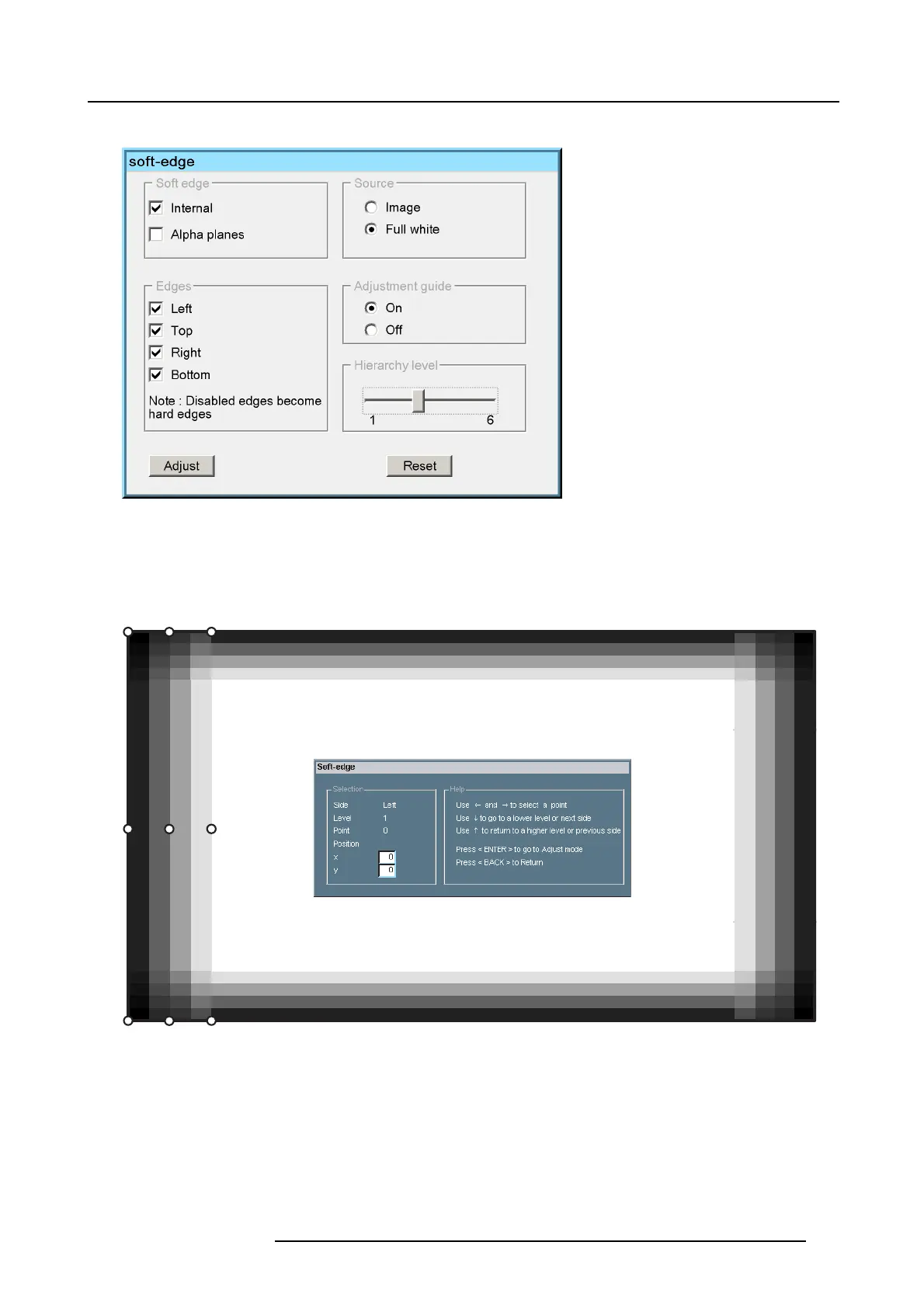

Image 7-162
2. Use the ← and → to select the level (from 1 to 6)
How to adjust the soft edge ?
1. Press Adjust
A Edit dialog box is displayed and the left side soft edge zone is selected. The default level is the level 1.
Image 7-163
2. Use the arrows to select a point to be displaced
3. Press ENTER to go to the Edit mode
4. Use the arrows to select t
he desired field
5. Press ENTER to edit the field
The edit field is put in the edit mode
6. Use the arrows or the digits to fill in the desired x position of the selected point (in this case the left top point of level 1)
7. Press ENTER to confirm
R59770286 NW-12 07/09/2009
145
