12. Convergence
1

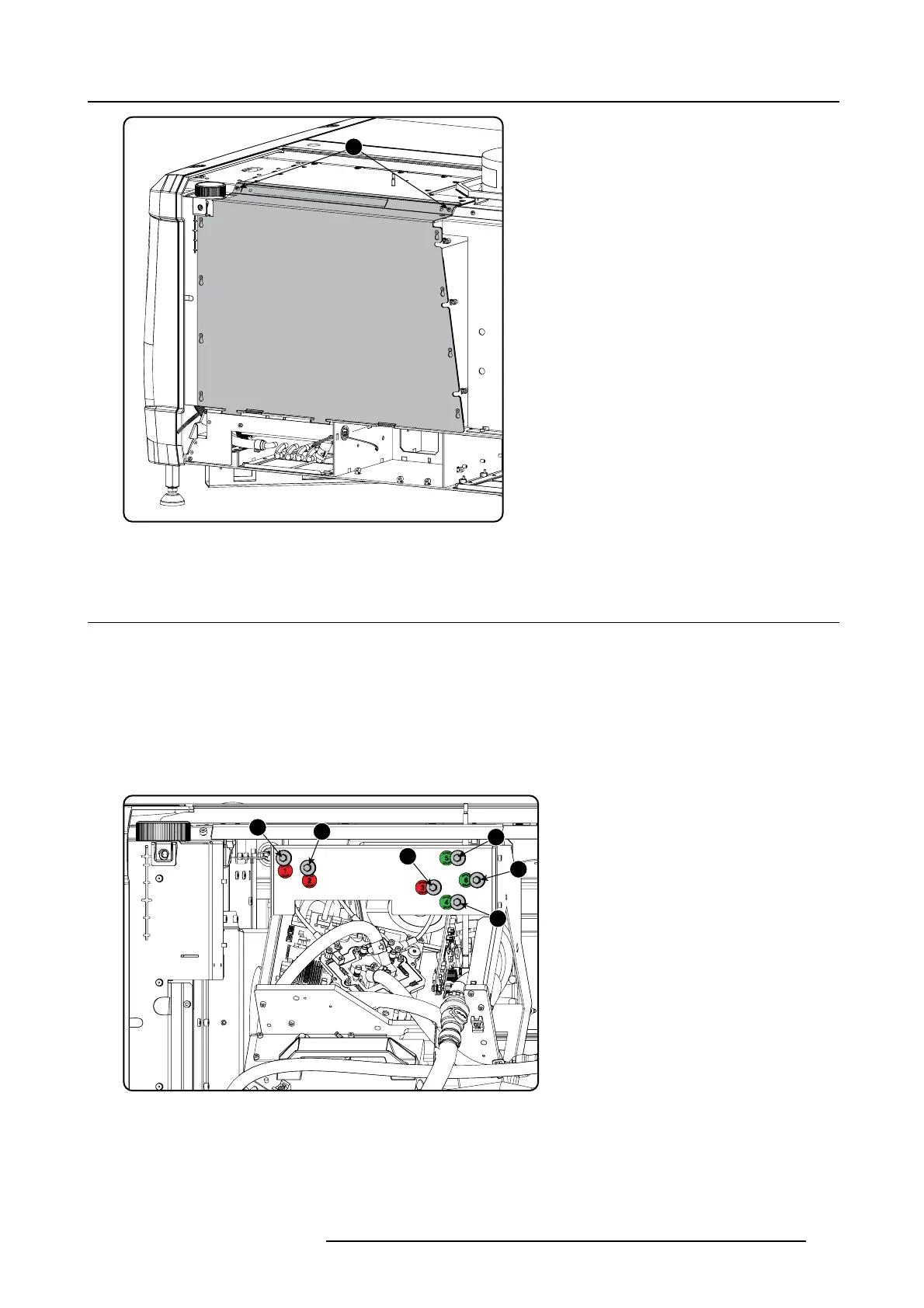

Image 12-4
Sealed cover, fixation
12.3 Convergence controls
Definitions-Abbreviations
• X: H orizontal d irection on the s creen, with origin in the centre of the screen and + to the right
• Y: Vertical direction on the screen, with origin in the centre of the s creen and + t o the top
• Z rotation: Tilting of the X and Y ax es in their plane: + is clockwise rotation
• [1] ; [2 ] ; [3] ; [4] ; [5 ] ; [6] : these ar e the 6 adjustments av ailable as they appear on the standard convergence adjustment
screen.
Convergence controls, location
1
2
3
4
5
6
Image 12-5
Convergence knobs
1 Red channel, knob number 1 (position of knob can slightly differ)
2 Red channel, knob num ber 2
3 Red channel, knob num ber 3
4 Green channel, knob number 4
5 Green channel, knob number 5
6 Green channel, knob number 6
R5905067 DPXK-19B/23B/P 17/09/2012 103
