Bottom layout of the Base Unit
The serial number label containing the Barco part number, the revision number, production date (week-year)
and the serial number.
The product label with the applicable certification logos.
The product label contains:
• the Barco logo
• the product name
• the Barco part number
• the power rating
• markings for applicable standards (CE, CCC, UL, ...)
• markings for waste regulation
• “Made in ...”
Bluetooth
Bluetooth functionality is currently not available and Bluetooth signal is disabled.
2.4 About the Button
Button
A Button toggles the sharing of the individual PC or MAC screen on the meeting screen.
Button layout
A Button consists of three main components.
1 2 3

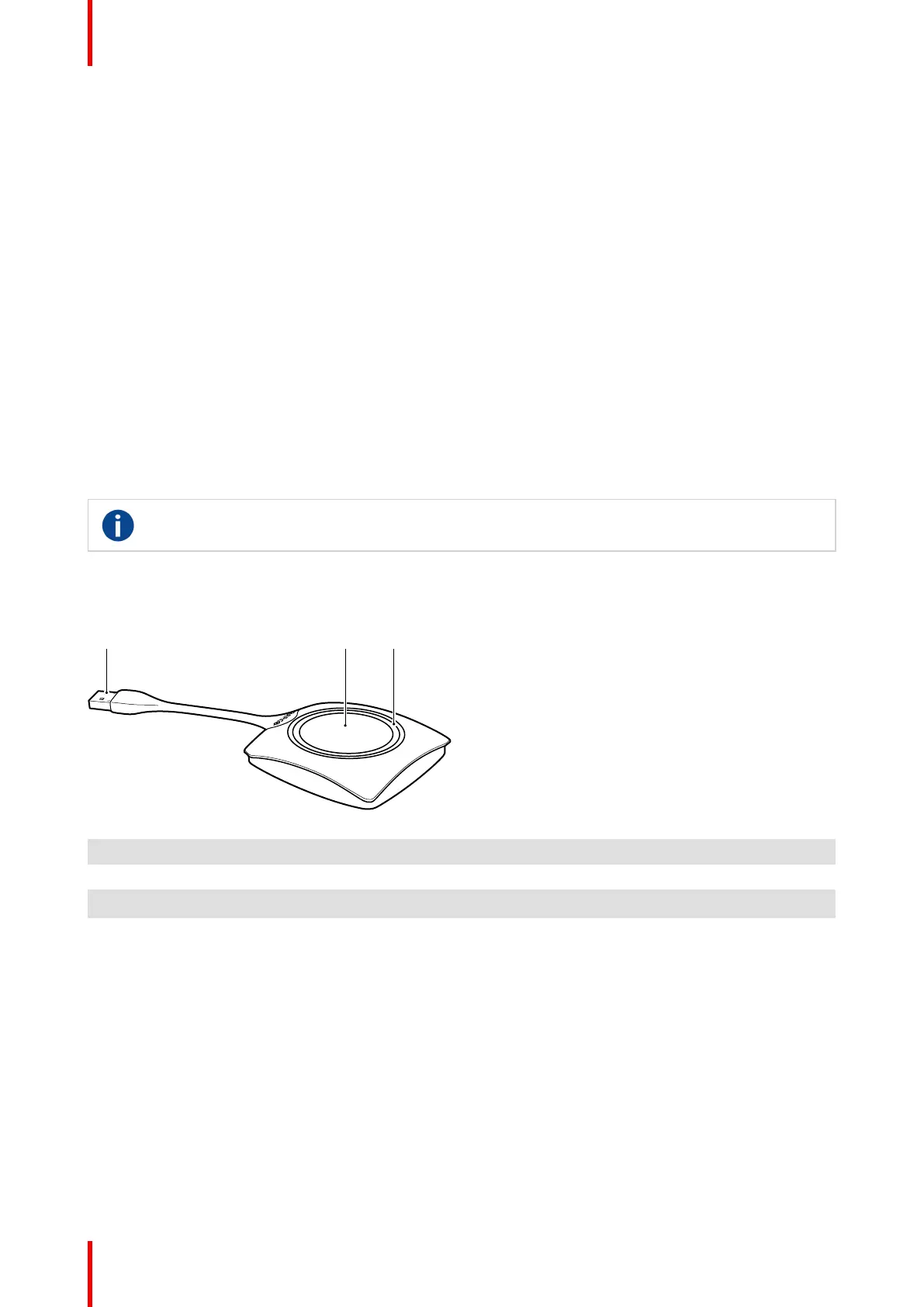

Image 2-5: Button layout
1 USB connector
2 Button
3 LED ring
USB connector
Using the USB connector the Button can be plugged into a laptop (for sharing your screen) or the Base Unit
(for pairing the Button to the Base Unit or updating its software). Button R9861500D1 has a USB Type-A
connector, Button R9861500D1C has a USB Type-C
TM
connector. Depending on the type of USB port on your
laptop or on the Base Unit a convertor must be use.
Button
Click the Button to display the content of the laptop's screen on the meeting room display. Clicking the Button
during the meeting will toggle the sharing of the screen.
LED ring
The LED ring indicates the current status of your ClickShare.
CSE-800 Specifications

Barco R9861580US Specifications

General

Brand	Barco
Model	R9861580US
Category	Projector Accessories
Language	English
