Barco RHDM-2301 - Control; Signal Inputs

178 Barco - RHDM-2301 - User manual
Addendum
Power supply output for the control panel
• DC Power connector: 12 Vdc out
Others
• Kensington lock
IMPORTANT :
In order to meet the EMI/EMC specifications as described in the environmental specifications paragraph, shielded
network cables (Ethernet, Tally) should be used.
7.1.1.4.2 Signal inputs
Connectors SDI module
• 4 BNC connectors
7.1.1.4.3 Control

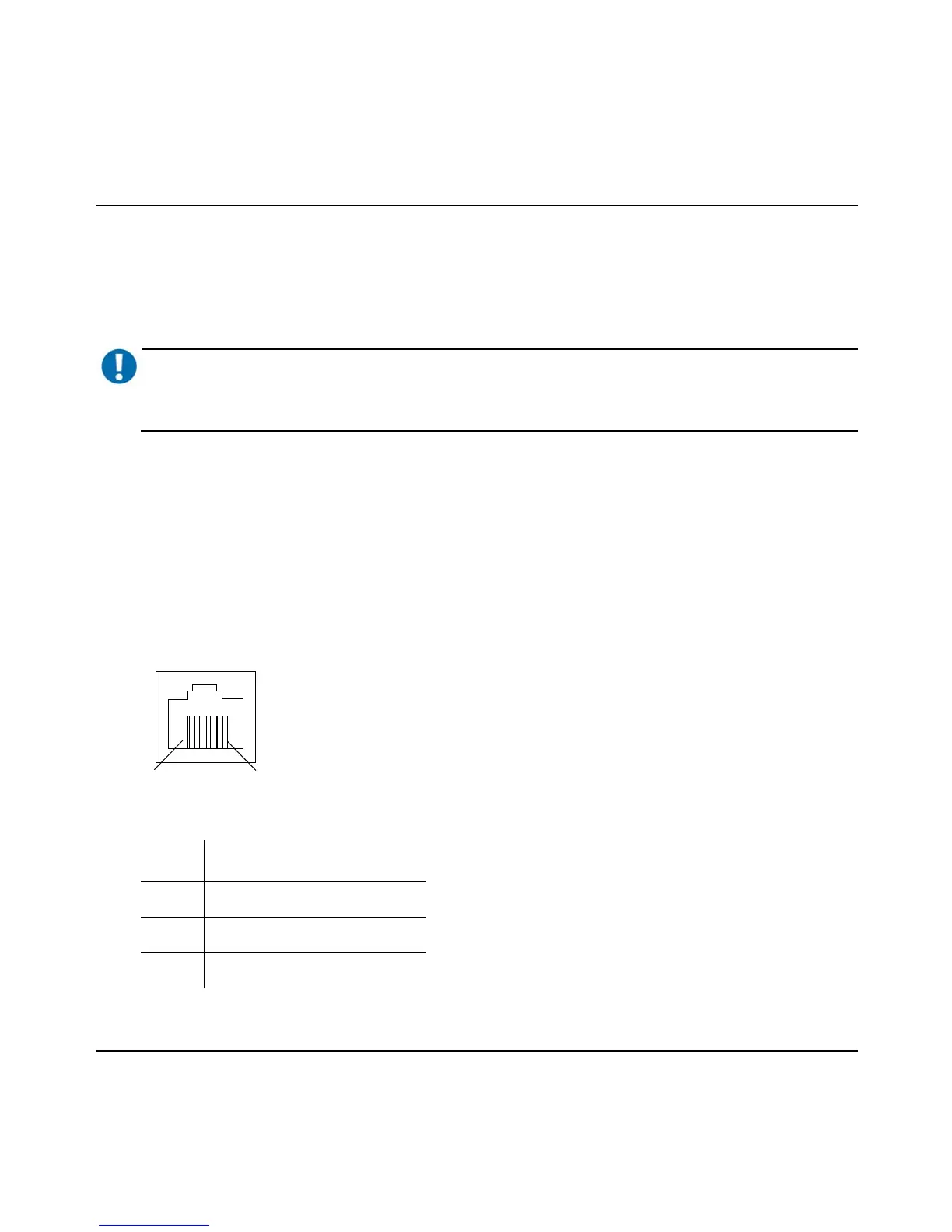

RS485 Tally serial connector
• RJ45
Pinning
Pin Signal
1GND
2GND
3TX-
8
1
