PARTS:
ITEM PART# REQ'D DESCRIPTION
1 28259 1 CRANK HANDLE
2 600-0011 1 HEX BOLT (.5-20 X .75)
3 30330 1 CAP ASS'Y BLACK
3 30331 1 CAP ASS'Y WHITE
4 736-0009 1 TOGGLE SWITCH
5 736-0008 1 TOGGLE SWITCH
6 606-5001 2 #10 X .50 PHILLIPS HEAD SCREW
7 27253 1 LAMP WIRE ASSEMBLY
8 10017 1 POST ADAPTER (2" POST ONLY)
9 32152 1 COVER, FINISHED WHITE
9 32153 1 COVER, FINISHED BLACK
10 29306 1 GASKET
11 28207 1 GEAR ASSEMBLY-DRIVE
12 28917 1 DRIVE GEAR ASSEMBLY
13 30783 1 BASE FINISHED WHITE
13 30782 1 BASE FINISHED BLACK
14 608-0006 3 .312-18 X .50" SET SCREW
15A 27313 1 POST ASSEMBLY(BLACK- Ø2.25)
15B 27335 1 POST ASSEMBLY(BLACK- Ø2)
15A 27527 1 POST ASSEMBLY(WHITE-Ø2.25)
16 619-0003 3 INTERNAL TOOTH LOCKWASHER
17 21349 1 BASE H.T. (BLACK)
17 12752 1 BASE H.T. (WHITE)
18 27262 1 LENS
19 27276 1 MOTOR SLEEVE (BLACK)
19 27344 1 MOTOR SLEEVE (WHITE)
20 26236 1 RUBBER GROMMET
21 17414 1 MOTOR
22 611-2100 2 HEX LOCK NUT
23 605-0012 4 SCREW
24 12393 1 SYNCHRONIZE LABEL
25 27338 1 COVER (WHITE)
25 27259 1 COVER (BLACK)
26 80208 1 WASHER, SPACER
27 29880 1 CONNECTOR/FUSE HOLDER ASSEMBLY
28 623-1216 1 GROOVE PIN
29 606-0009 2 #10 X .38 SCREW (LIMIT SWITCH)
30 636-0000 1 HEX KEY
31 618-1002 1 LOCKWASHER (.50")
32 30341 1 LOCK INDICATOR LABEL, BLACK
32 30683 1 LOCK INDICATOR LABEL, WHITE
33 80501 2 BUSHING
34 645-0024 1 FLANGE BUSHING
35 641-0009 1 BUSHING
36 634-0028 2 RETAINING RING
37 16434 2 HOLE PLUG
38 621-0004 2 Ø.13" X .75 DOWEL
39 634-0023 1 RETAINER RING
40 27512 1 LIMIT SWITCH ASSEMBLY
41 27257 1 BLACK WIRE ASSEMBLY
42 27256 1 WHITE WIRE ASSEMBLY
43 27254 1 BLUE WIRE ASSEMBLY
44 27252 1 GREEN WIRE ASSEMBLY
45 606-0008 2 #10-16 X .75 TEK SCREW (BLACK)
45 606-0010 2 #10-16 X .75 TEK SCREW (SILVER)
46 30313 1 LENS GASKET
47 27277 1 POT/REED DRIVE GEAR
48 27264 1 COVER LABEL
49 27274 1 MOTOR SEAL
50 603-5016 2 #10-32 X .75" PHILLIPS SCREW
51 17808 1 WIRE CLAMP
52 24047 1 WARNING LABEL
53 17892 2 CABLE TIE (GREY)
53 16392 2 CABLE TIE (BLACK)
2
4
5
6
9
10
11
12
13
14
15A
15B
52
52
24
24
16
17
31
50
19
21
49
30
28
38
27
22
35
33
26
23
29
47
39
40
20
41
7
43
44
18
46
36
25
45
NOT SHOWN: PN 742-0051 FEMALE TERMINAL 1 REQ'D
37
34
51
38
32
3
8
1
53

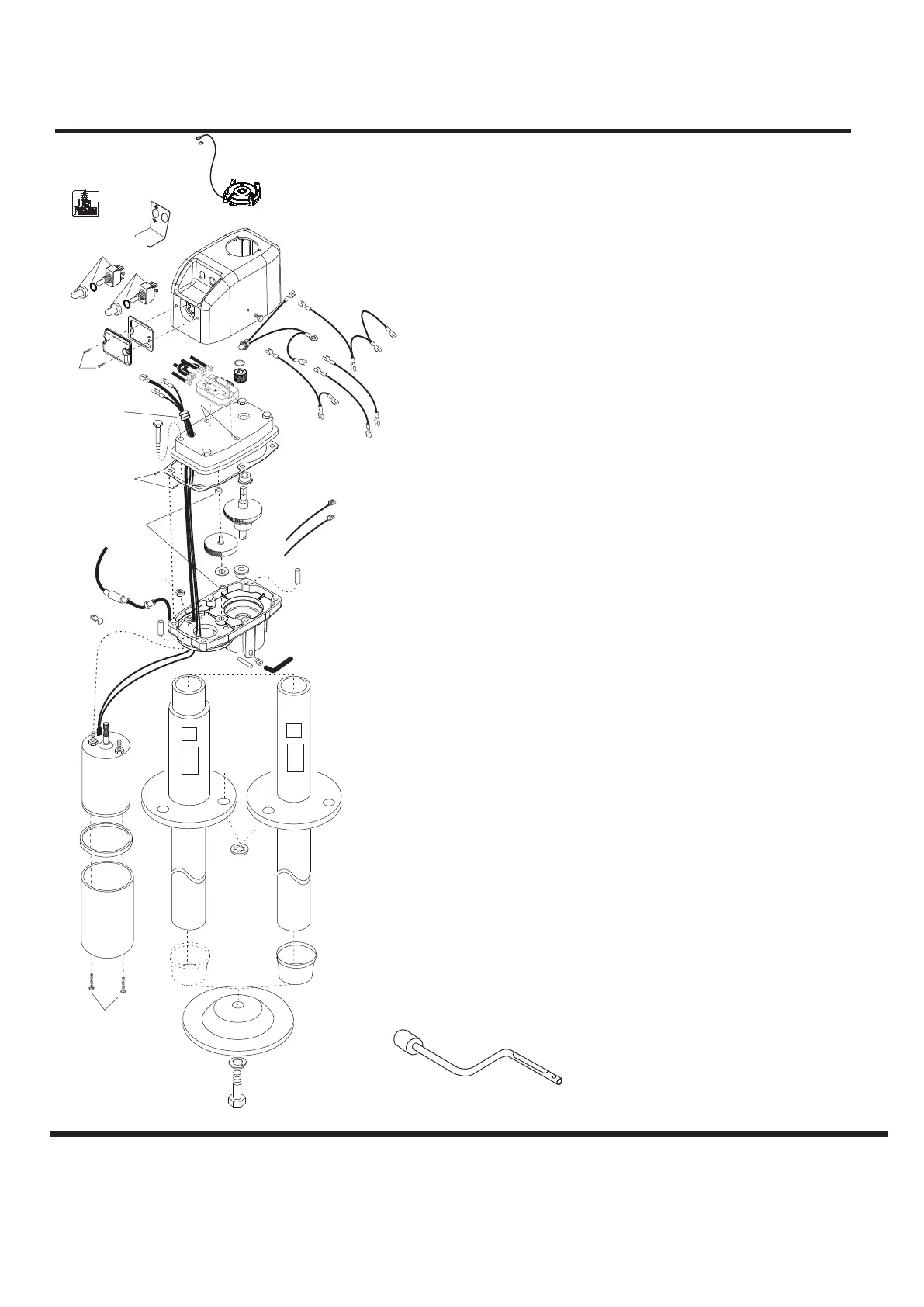

HIGH-POWER 3,000 ACME JACK OWNER'S INSTRUCTIONS
P/N’S: 27265, 27295, 27300, 27720, 27721, 28762
48
