VIP 3500 POWER JACK OWNER'S INSTRUCTIONS
P/Ns 30828, 30900, 31558 (WHITE) and P/Ns 32454, 32455 (BLACK)

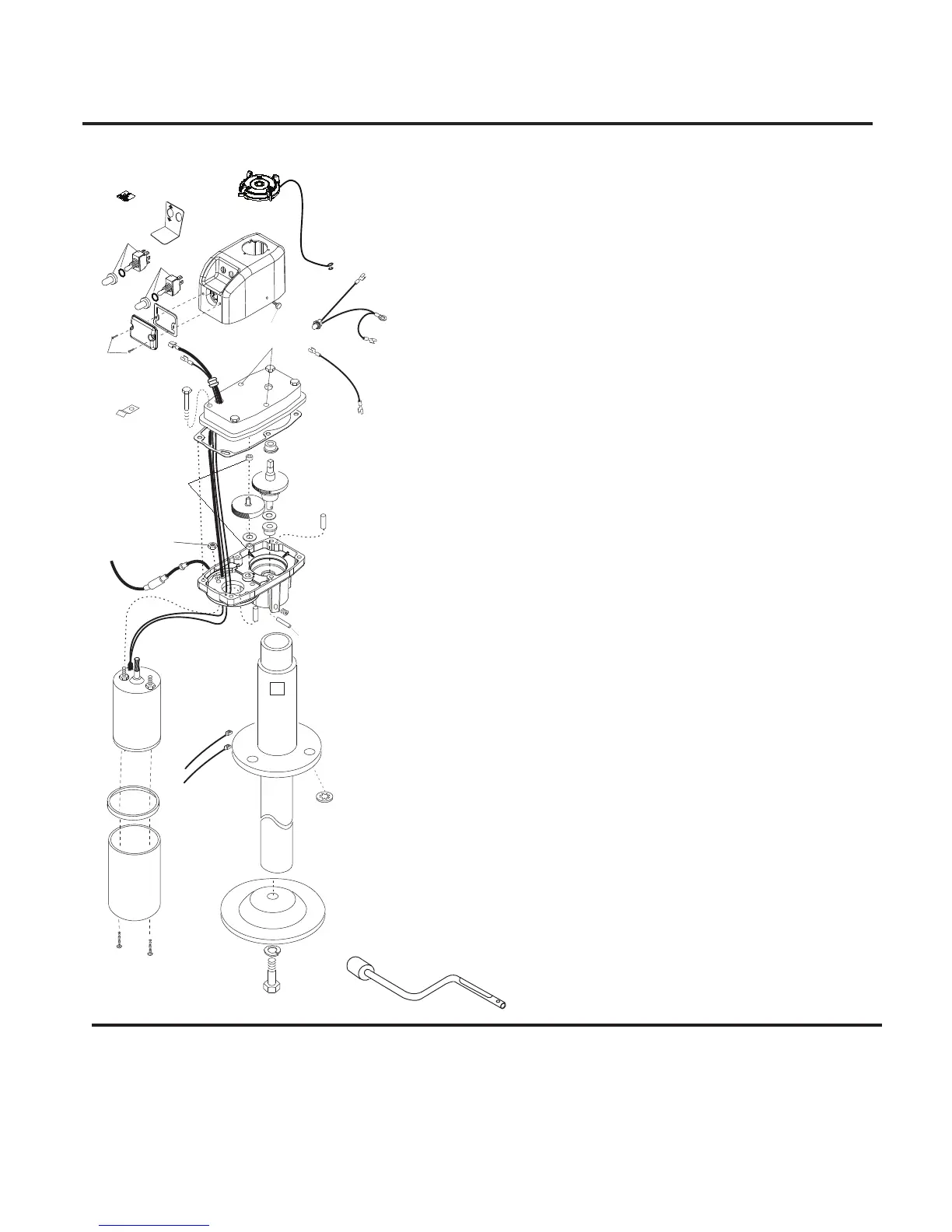

ITEM PART# REQ'D DESCRIPTION
1 30683 1 LOCK INDICATOR LABEL (WHITE)
1 30341 1 LOCK INDICATOR LABEL (BLACK)
2 30331 1 CAP ASS'Y (WHITE)
2 30330 1 CAP ASS’Y (BLACK)
3 619-0003 3 LOCKWASHER INTERNAL TOOTH
4 736-2300 1 TOGGLE SWITCH
5 736-0008 1 TOGGLE SWITCH
6 606-5001 2 SCREW #10 X .50 PHILLIPS HEAD
7 16392 2 CABLE TIE
8 617-0009 1 THRUST WASHER
9 17419 1 COVER, MACHINED
9 30774 1 COVER, FINISHED (BLACK)
10 29306 1 GASKET
11 28207 1 DRIVE GEAR ASSEMBLY
12 28487 1 TORQUE LIMITER
13 30783 1 BASE FINISHED (WHITE)
13 30782 1 BASE FINISHED (BLACK)
14 608-0006 3 SET SCREW .63-18 X .50
15 618-1002 1 LOCKWASHER .50
16 27257 1 BLACK WIRE ASS'Y
17 17808 1 WIRE CLAMP
18 27262 1 LENS
19 27344 1 MOTOR SLEEVE (WHITE)
19 27276 1 MOTOR SLEEVE (BLACK)
20 26236 1 RUBBER GROMMET
21 17414 1 ELECTRIC MOTOR
22 611-2100 2 HEX LOCK NUT
23 605-0012 4 SCREW
24 27274 1 MOTOR SEAL
25 27338 1 COVER WHITE MACHINED
25 27259 1 COVER BLACK MACHINED
26 80208 1 WASHER, SPACER
27 29880 1 CONNECTOR/FUSE HOLDER ASS'Y
28 623-1216 1 GROOVE PIN
29 30837 1 COVER LABEL
30 606-0010 2 #10-16 X .75 TEK SCREW (ZINC PLATED)
30 606-0008 2 #10-16 X .75 TEK SCREW (BLACK HEAD)
31 27313 1 POST ASS'Y -18" BLACK
31 31367 1 POST ASS'Y- 24" BLACK
32 600-0011 1 HEX BOLT .50-20 X .75
33 80501 2 BUSHING
34 645-0024 1 FLANGE BUSHING
35 641-0009 1 BUSHING
36 603-5016 2 SCREW #10-32 X .75” PHILLIPS
37 16434 2 HOLE PLUG
38 621-0004 2 DOWEL Ø.13" X .75 DOWEL
39 27253 1 LAMP WIRE ASSEMBLY
40 30313 1 LENS GASKET
41 634-0028 1 RETAINING RING
42 26097 1 STRAP
43 21349 1 BASE
44 28259 1 CRANK HANDLE
20
9
10
35
11
26
38
33
22
23
34
13
38
14
28
24
21
27
4
5
6
18
40
29
25
30
36
12
8
17
16
37
1
39
19
OFF
LIGHT ON
BA R K E R M F G . B A T T L E C R E E K
Performance
SERIES
3000
High
30 0 0 0 L B S C A P A C I T Y
PARTS:
32
31
3
43
15
7
44
2
42
41
