Barton 99911 - Diagram and Parts List; Unit Diagram

4
Certication:ETL and UL Listed. Operating Modes Available:Heater/Air conditioner.
Cooling Capacity:14,000 BTU
Air condition:Yes. Heater Mode:Yes.
Fan Speeds:3
Adjustable Temperature:62F - 82F
Power:120VAC 60Hz
Timer Setting:Up to 24 hours
Dehumidify:Yes. Auto Clean:Yes.
Refrigerant/Charge:R410A/20.45oz. Air Flow:430m3/h 253 cfm.
Max Noise Level:56dB(A)
RemoteControl:Yes. Window Venting Kit:Yes.
Overall Dimension:14”(L) x 18-1/2”(W) x 33-1/2”(H)

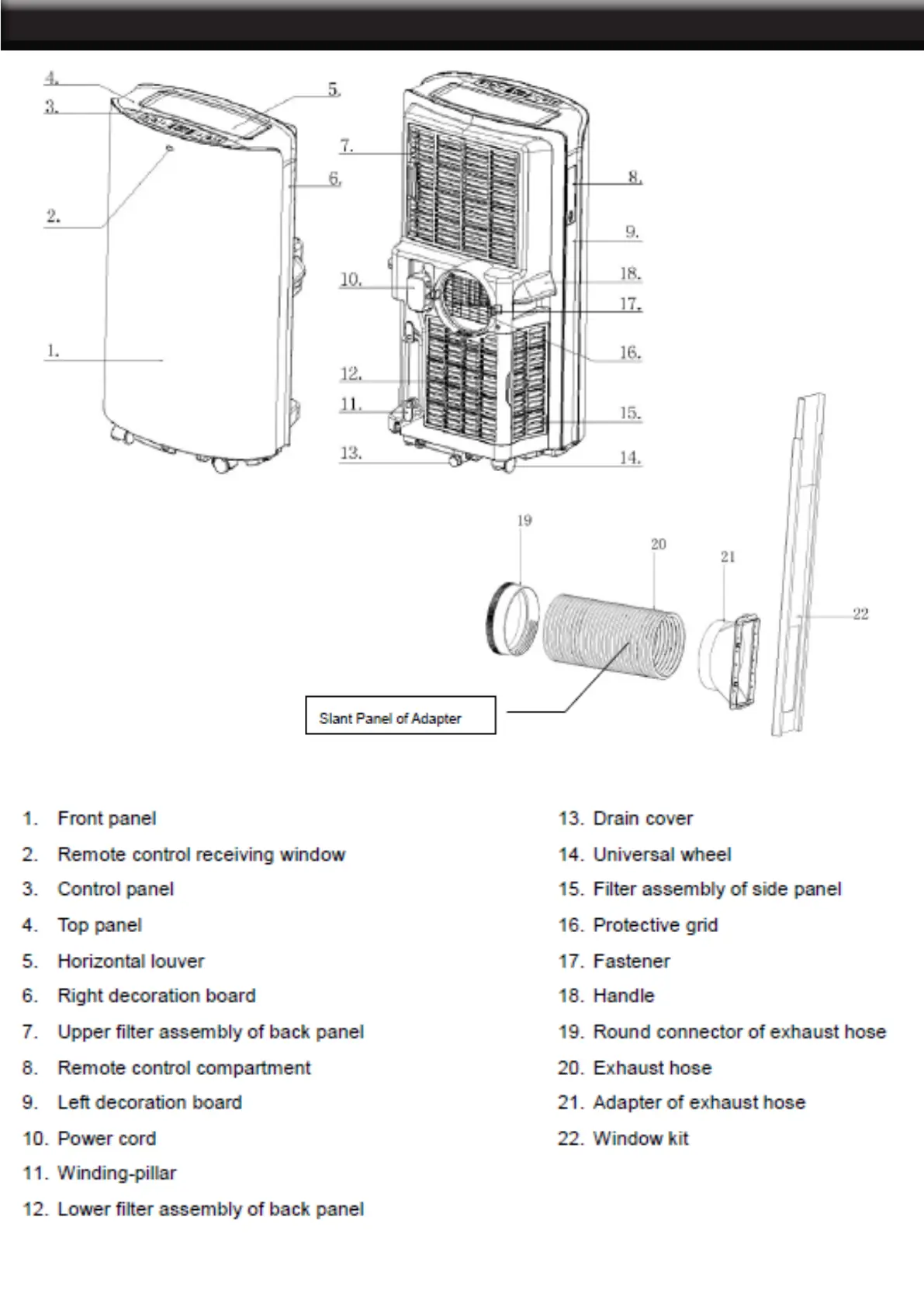

DIAGRAM
