BAS-IP AA-14FB - Page 5

EAN: 5060514912850 (BLACK)
EAN: 5060514912874 (GOLD)
EAN: 5060514912867 (SILVER)

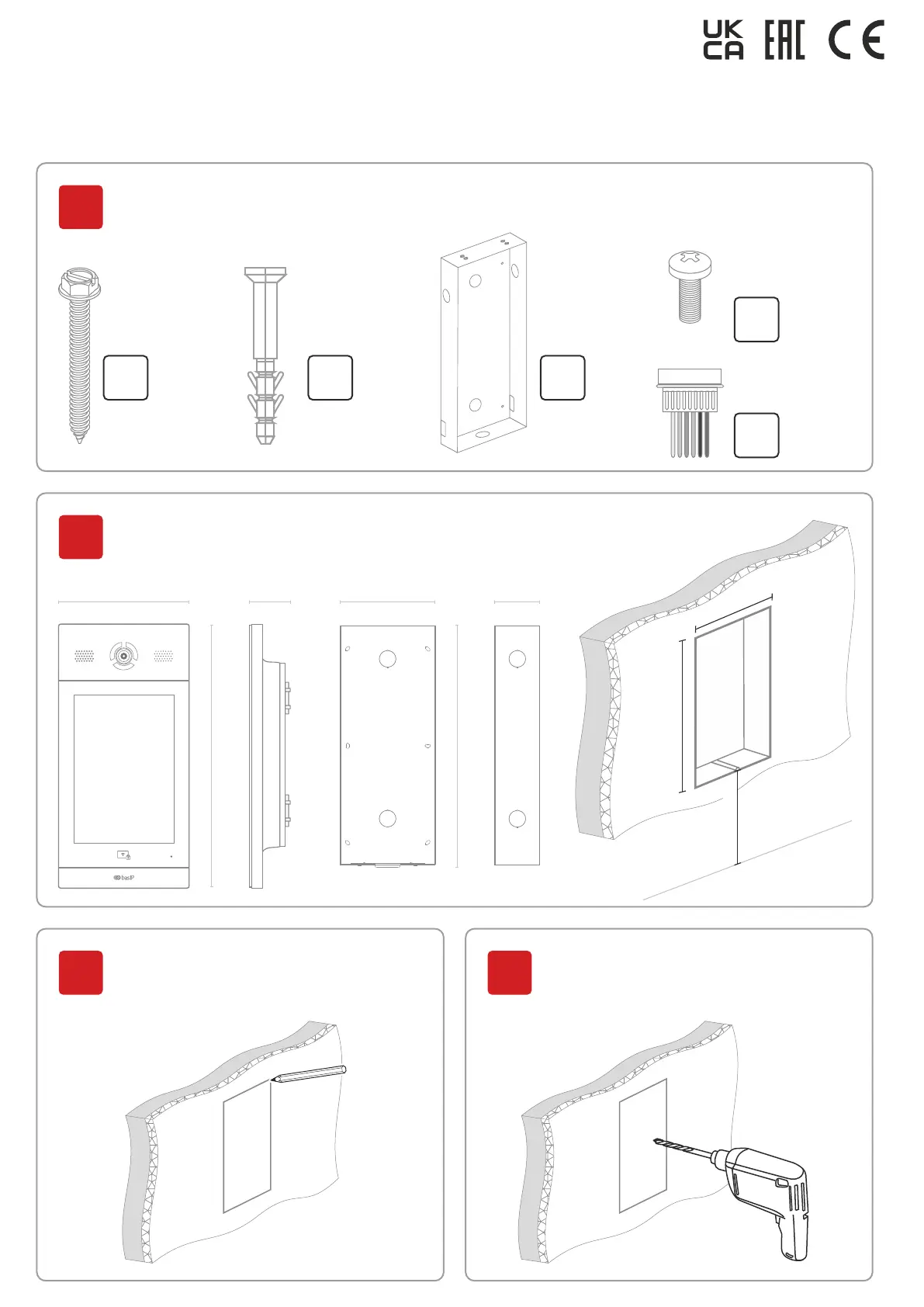

Flush mounting using complete brachet
Check the availability of all components required for installation,
connection and fastening.
fastening
screws
x4
fastening
anchor
dowels
x4
flush
mount
bracket
x1
panel
fastening
bolts
x4
connection
cords
x5
185 mm
400 mm
45 mm 172 mm
373 mm
58 mm
1
Measure the bracket dimensions required for carving out a niche
for further bracket mounting.
2
On the wall, draw a rectangle
according to the dimensions
done in the previous step.
3
Make a niche in the wall by
hollowing the wall or any other
appropriate way.
4
174 mm
37
5 mm
109
0-1300
mm
