Installation Manual
SOCKET POWER OUTLET
© 2022
basalte v1.0
Technical data
Rated voltage: 250V AC
Maximum current: 16A
Installation instructions
1. Use a standard European back box with screws. The distance between the screws needs to be 60mm. The
required depth is 45mm, although additional depth should be reserved for connecting the cables.
For 2-gang sockets, use a 2-gang European back box with a centre to centre distance of 71mm.
To verify your compatible back box, please refer to the back box application note on basalte.world.
2. Connect the 220V power lines using the screwless terminals.
3. Fix the power outlet to the wall box with 2 screws using the holes on vertical axis.
For 2-gang and 3-gang sockets, use the alignment guides for positioning of the outlets.

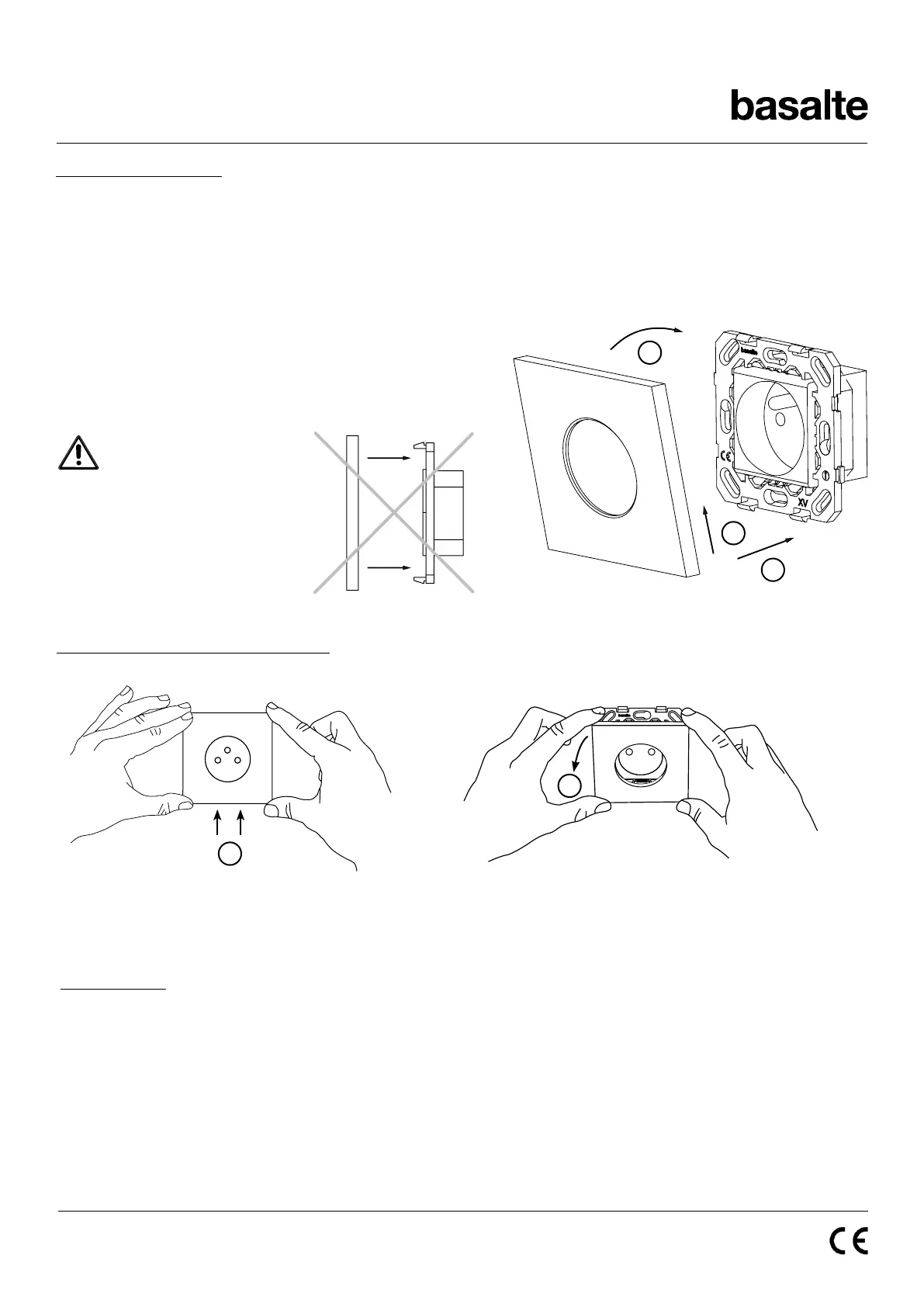

4. Mount the cover frame using the clips (see drawing below)
A
B
How to remove the Socket front cover (see drawing below)
A Place the frame over the lower clips
B Push the frame upwards and tilt towards the wall
C Attach the frame over the top clips
Pushing the frame straight
into the clips without
pushing upwards and
lifting, might damage the
wall base.
C
E Push the frame upwards
F Tilt the frame away from the wall
E
F
