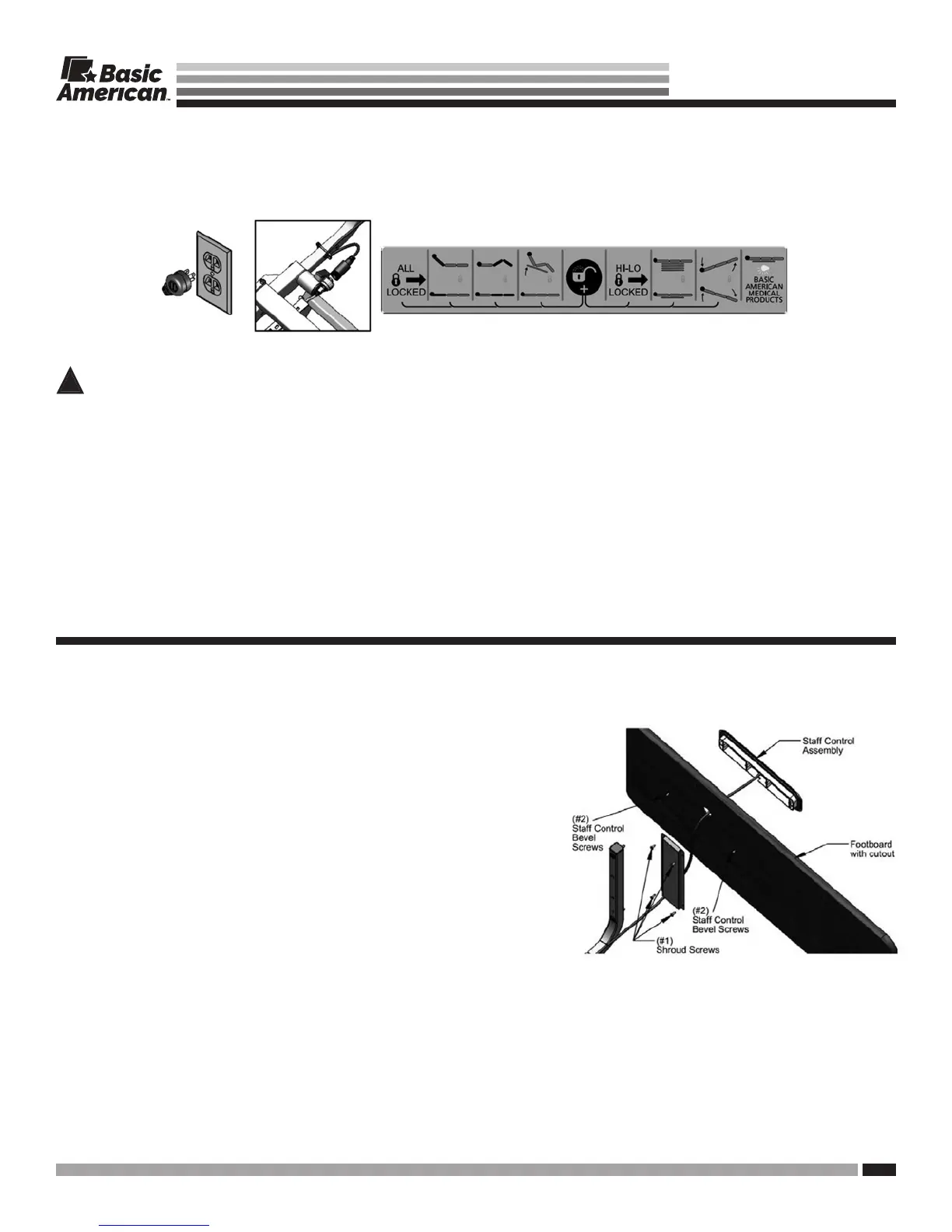

TROUBLESHOOTING STAFF CONTROL: STAFF CONTROL LIGHTS BLINK;
NOTHING ON STAFF CONTROL WORKS, BUT HAND CONTROL PENDANT WORKS
ALWAYS UNPLUG THE POWER CORD
BEFORE PERFORMING MAINTENANCE ON
THE BED.
1. This could mean the Staff Control is not
getting enough power from the Control Box.
2. Unplug the power cord from the wall outlet.
Unplug the Staff Control Cable from the
T-Cable at the foot end of the bed.
3. If you have a spare Staff Control Assembly,
plug the cable into the foot end T-cable and
test.
a) STAFF CONTROL WORKS AND
LIGHTS NO LONGER BLINK: Replace
the Staff Control Assembly.
b) STAFF CONTROL DOESN’T WORK
AND LIGHTS STILL BLINK: Continue
Troubleshooting below.
Note: Staff Control with Advanced Positioning
functions is shown above. Operation of Staff
Control with Standard Positioning functions is
identical.
TROUBLESHOOTING STAFF CONTROL: NOTHING ON STAFF CONTROL WORKS,
BUT HAND CONTROL PENDANT WORKS
1. Check the Staff Control connections at the foot end.
Is the Staff Control cable plugged securely into the
T-cable? Also check if the other end of the T-cable is
plugged securely into the Control Box (or Underbed
Light). If the STAFF CONTROL STILL DOESN’T
WORK: go to step 2.
2. Unplug the power cord from the wall outlet. Remove
the Cable Cover (Shroud) on the inside of the
footboard and locate the single terminal end that
plugs directly into the back of the Staff Control Panel.
Ensure it is properly seated in the panel. Plug in the
power cord and test the Staff Control. If the STAFF
CONTROL STILL DOESN’T WORK: Replace the
Staff Control Assembly.
GF Health Products, Inc. - www.grahameld.com Matrix Series Instructions for Use 999-0908-190A
MATRIX SERIES
®
32
