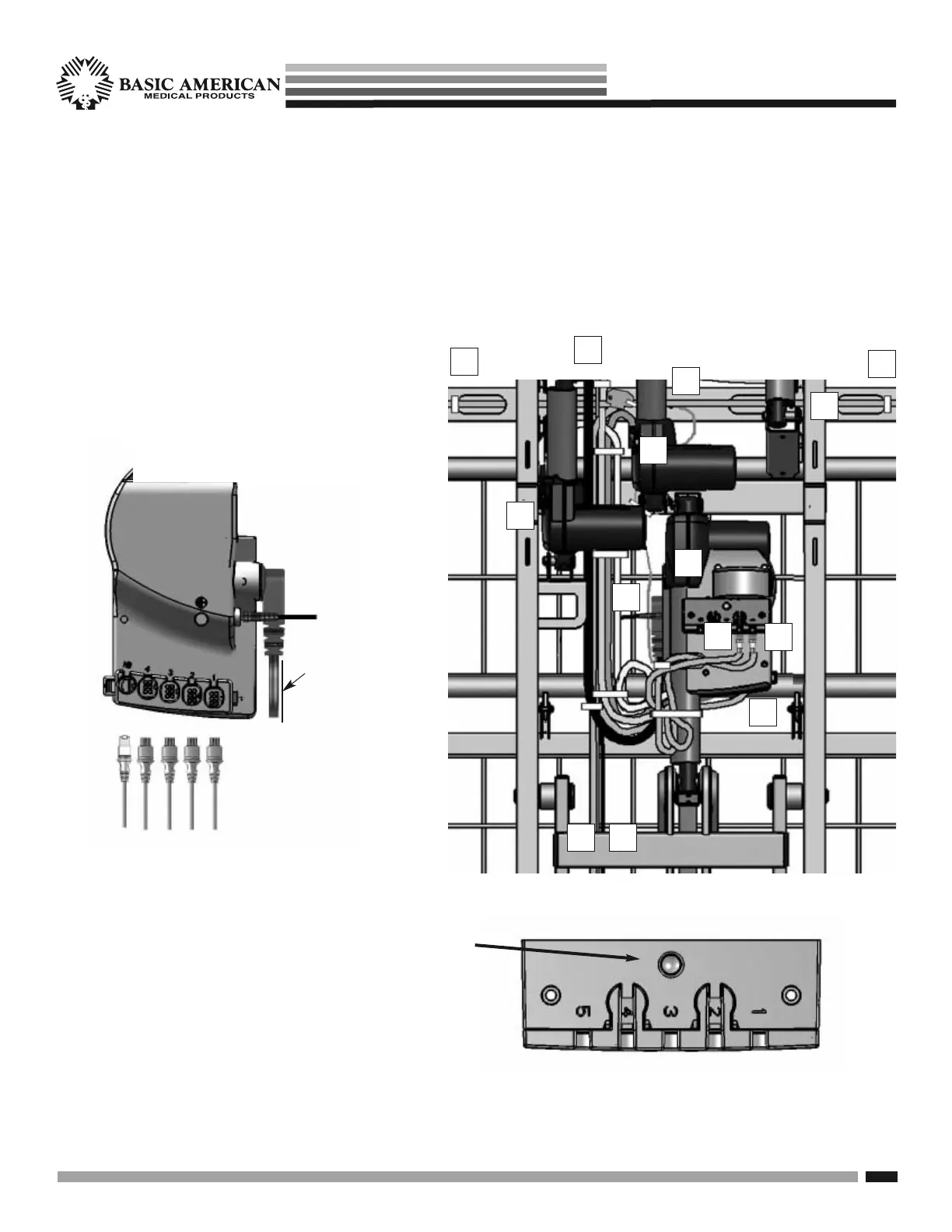

APS9000 SERIES ELECTRICAL CABLING - WITH UNDERBED LIGHT
UBL-Cable
Hi/Lo (Ft)
Foot
Hi/Lo (Hd)
Head
Power Cable
Ground
Wire
Light
T-Cable - Port 2 in Underbed Light Box
Hi/Lo (Ft) - Port 4 in Control Box
Foot - Port 3 in Control Box
Hi/Lo (Hd) - Port 2 in Control Box
Head - Port 1 in Control Box
Power Cable &
Battery Cable -
Side of Control Box
Portable
Battery
Cable
Extension
POWER CABLE
T-CABLE
HEAD CABLE
FOOT CABLE
HI/LO CABLE (FOOT)
HI/LO CABLE (HEAD)
BATTERY BACKUP CABLE
GROUND WIRE
UNDERBED LIGHT CABLE (UBL)
u
v
w
x
y
z
{
|
}
u
}
}
v
v
v
v
w
y
{
{
|
x
z
NOTE: Cabling for Beds with Underbed Light feature
is identical to Standard APS beds, except that the
T-Cable plugs into Port 2 in the Underbed Light Box
and an extra Extension Cable is plugged into Port 1
on the Underbed Light Box and the HB Port in the
Control Box.
T-Cable
UBL Cable
UNDERBED
LIGHT (UBL)
