Basic American ZENITH Series - Section E: Framing Service Parts

Basic American Medical Products, a division of GF Health Products, Inc. www.grahamfield.com 999-0831-190A Service Manual
34
Zenith aps seRies
WHEN ORDERING REPLACEMENT PARTS WITH CUSTOMER SERVICE,
PLEASE HAVE YOUR BED’S SERIAL NUMBER AVAILABLE
TO CONFIRM WHETHER THE PART IS COVERED UNDER WARRANTY.
(SEE PAGE 5 FOR LOCATION OF SERIAL NUMBER ID LABEL.)

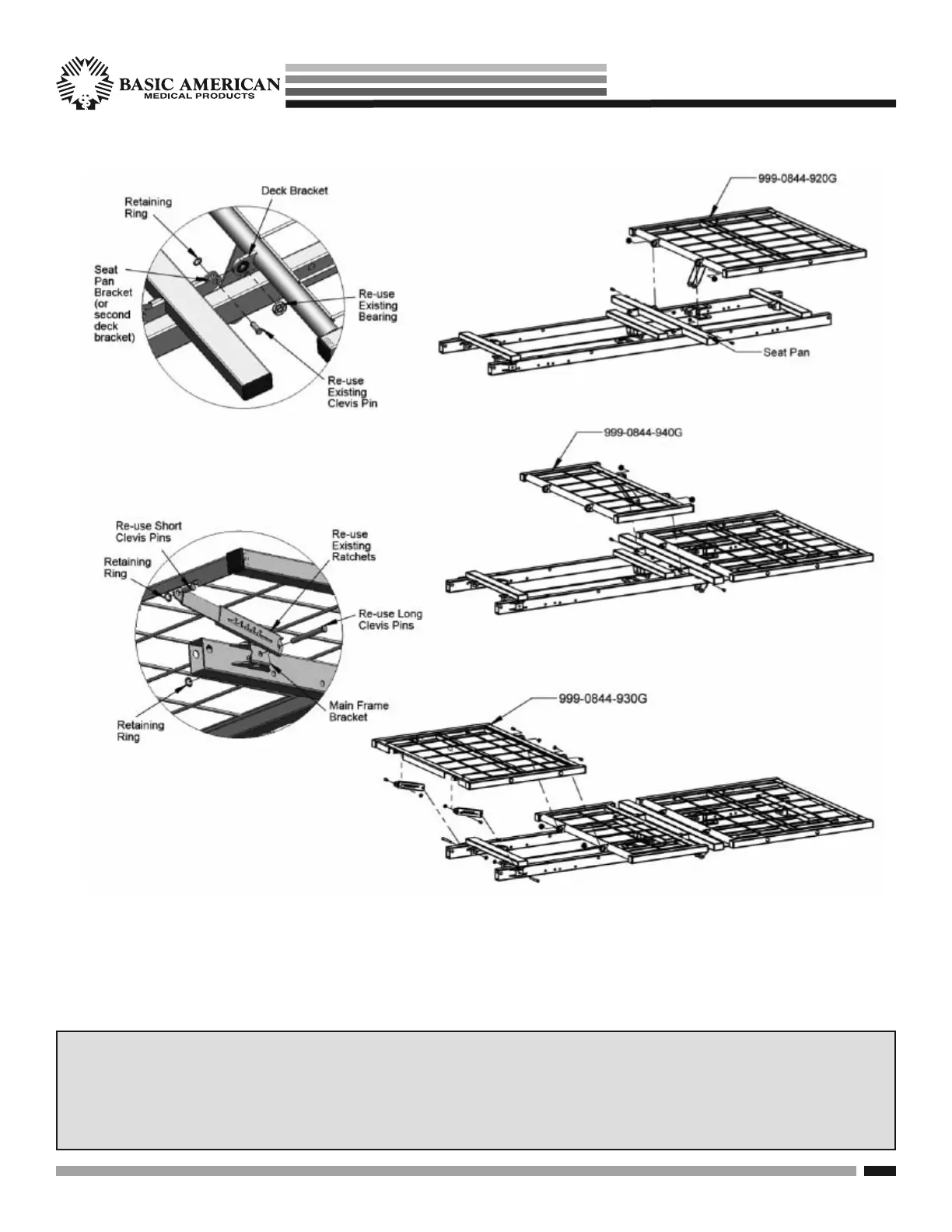

SERVICE/REPLACEMENT PART DIAGRAM - DECKING
1. TO ORDER A REPLACEMENT
HEAD DECK USE SERVICE PACK
999-0844-920SP (includes deck,
mounting hardware & installation
instruction sheet).
2. TO ORDER A REPLACEMENT
KNEE DECK USE SERVICE PACK
999-0844-940SP (includes deck,
mounting hardware & installation
instruction sheet).
3. TO ORDER A REPLACEMENT
FOOT DECK USE SERVICE PACK
999-0844-930SP (includes deck,
mounting hardware & installation
instruction sheet). Re-use existing
edema ratchets & ratchet hardware.
DETAIL OF DECK
ATTACHMENT
(Similar for all decks)
DETAIL OF EDEMA
RATCHET RE-ATTACHMENT
(Use existing ratchets
and hardware)
HEAD DECK
TO MAIN FRAME
SEAT PAN BRACKETS
KNEE DECK
TO MAIN FRAME
SEAT PAN BRACKETS
FOOT DECK
TO KNEE DECK
MOUNTING BRACKETS
