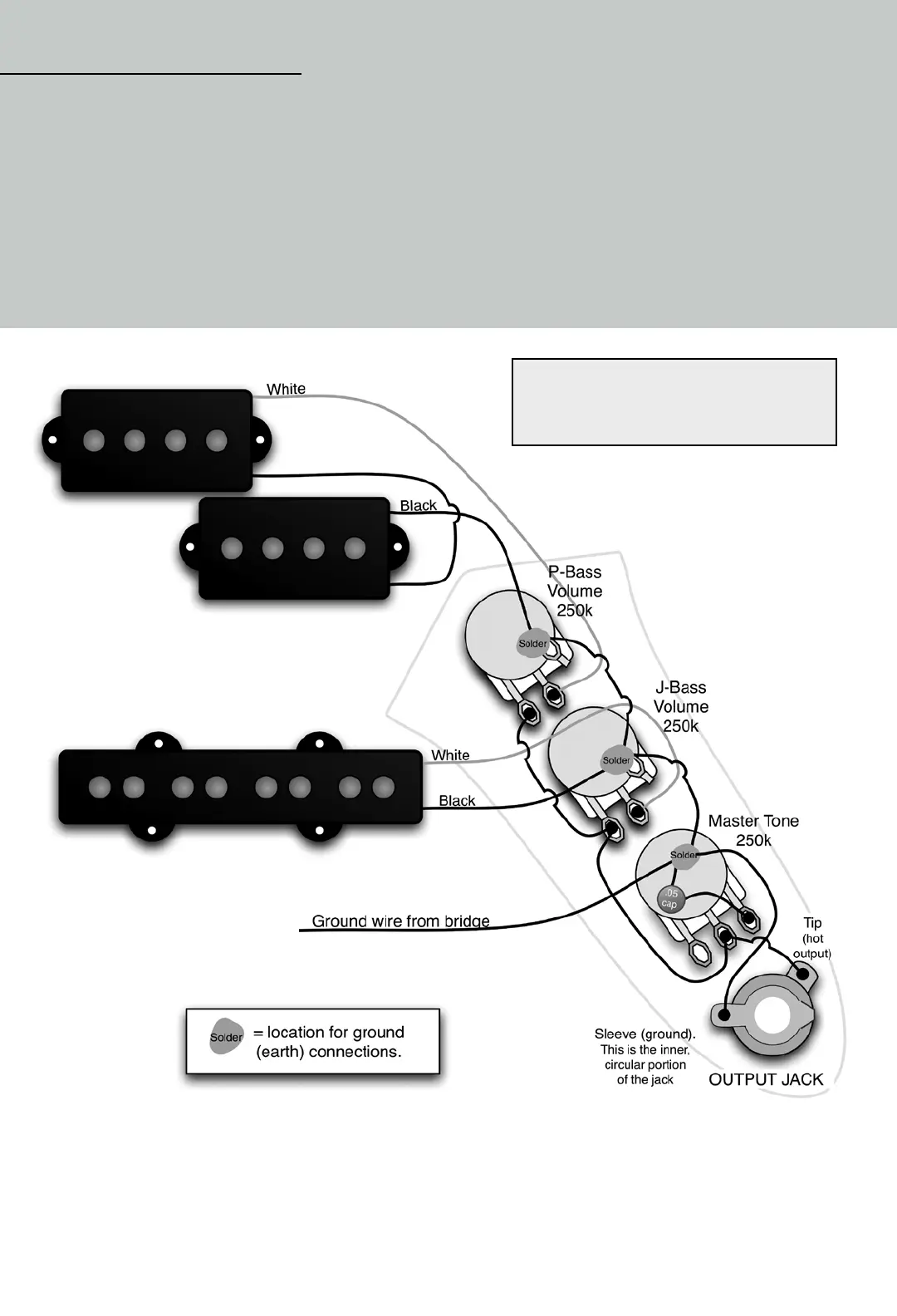

Wiring Diagram for
P/J Bass:
SPB-1 Vintage for
P-Bass
®
SPB-2 Hot for
P-Bass
®
SPB-3 Quarter-Pound for
P-Bass
®
SJB-1b Vintage for
Jazz Bass
®
SJB-2b Hot for
Jazz Bass
®
SJB-3b Quarter-Pound for
Jazz Bass
®
P/N 501030-100 Rev. C
If two pickups sound thin and wimpy when used together, chances are, they’re out
of phase with each other. If you’re combining your Basslines pickup(s) with Fender
®
pickup(s) in the same bass, you’ll need to reverse the black and white wires on the
Basslines. In other words, solder the white wire to ground and the black wire to the
selector switch.
For real-time peer-to-peer tech support, consult
the gurus on the Seymour Duncan User Group
Forum. Also, check out the specialty wiring
diagrams available for free on our site.
We’re not just pickups anymore. Seymour Duncan also makes super cool stomp boxes.
And our sister company, D-TAR, is turning out some really hip products for
serious acoustic guitarists (d-tar.com).
Visit basslines.com for additional wiring diagrams.
