www.batcafitness.com 11 Fusion 2 Owner’s Manual
Step 1:
Item # Part # Description Qty
1 BFM-10593 Rear Base 1
2 BFM-10566 Left Vertical Support 1
3 BFM-10567 Right Vertical Support 1
4 BFM-10568 Middle Base 1
37 BFM-10583 Top Swivel Pulley 2
55 BFH-50165 1” Snap Ring 4
56 BFH-50146 3/8" Flat Washer (Black) 8
57 BFH-50157 3/8"-16 Nylock (Black) 4
58 BFH-50270 HCS 3/8"-16 X 5 1/4" P5 2
118 BFH-50279 HCS 3/8-16 X 5" P5 2
182 BFH-50337 Wavy Washer 2
All Flat Washers and Nylocks are 3/8”
PLEASE FOLLOW ALL DIRECTIONS VERY CAREFULLY FOR PROPER
INSTALLATION.
Note: For a more consistent appearance, position
all bolts in the direction shown in each
figure.

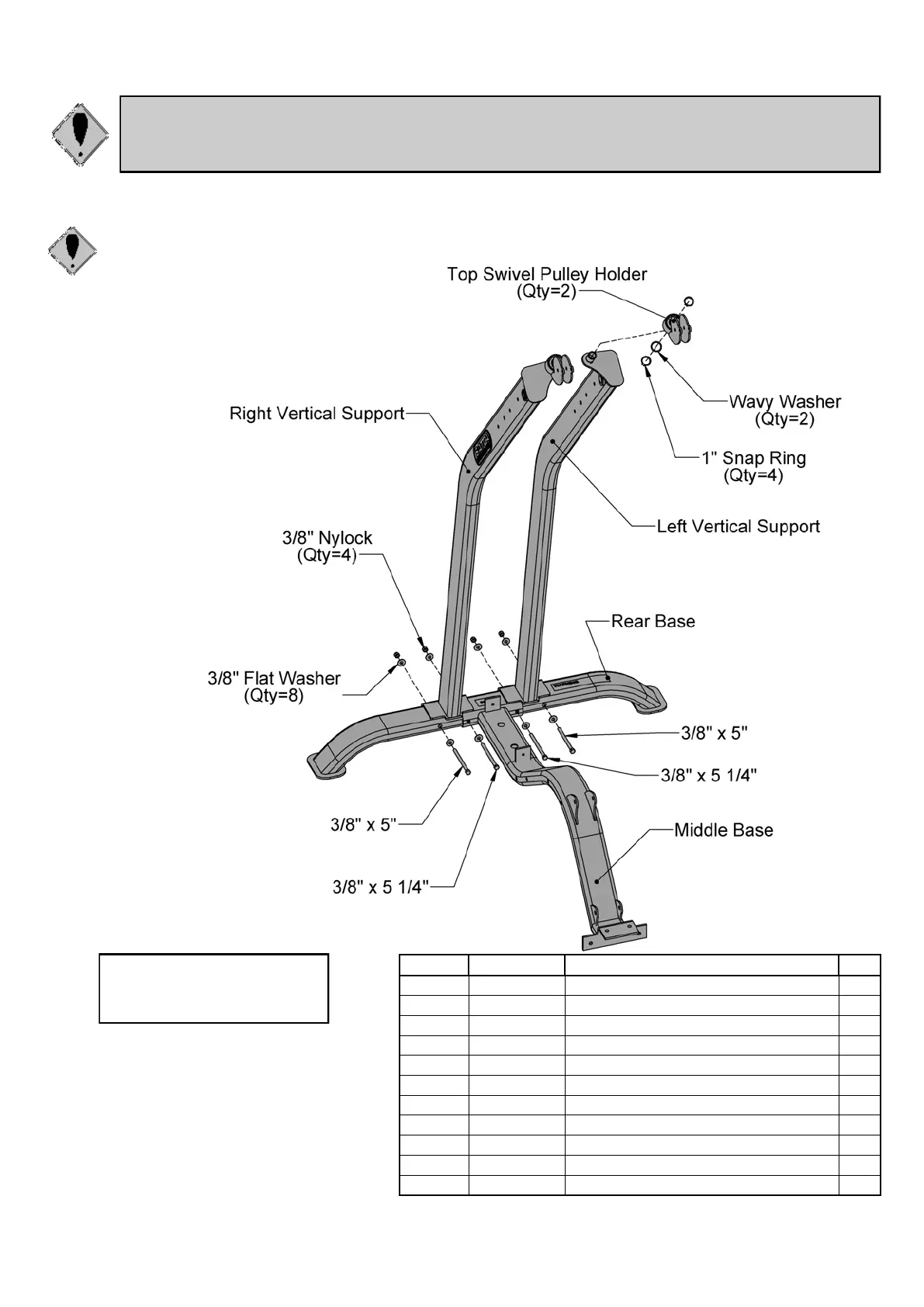

Figure 1
Do Not Tighten Hardware
Until Step 3
To Next Page
