www.batcafitness.com 23 LD-4 Owner’s Manual

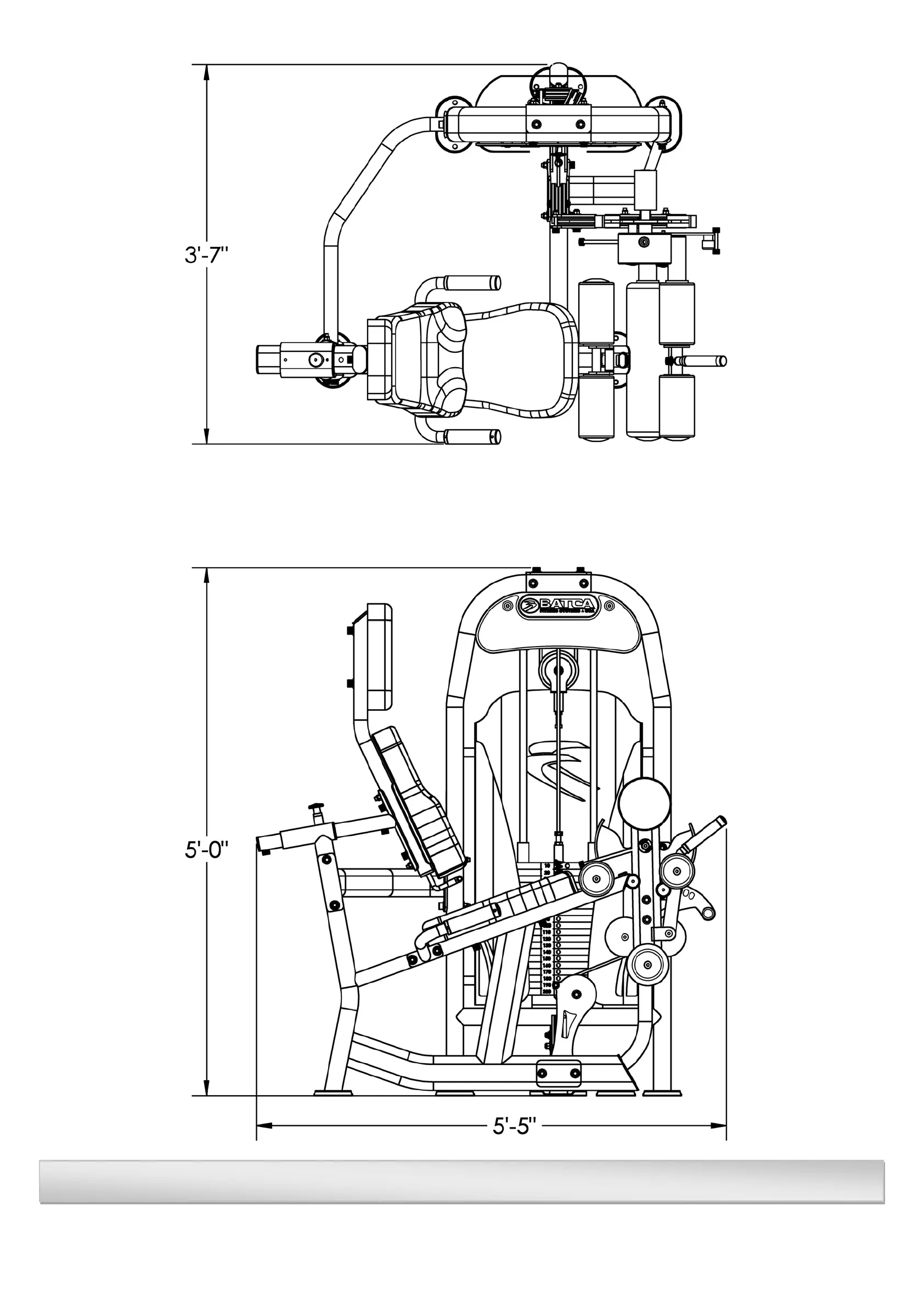

The LD-4 has a layout dimension of 3’-7” (width) x 5’-5” (length) x 5’-0” (height). There should be a minimum of 18”,
preferably 24”, of working space around the entire unit.
Layout Diagram
