www.batcafitness.com 5 LD-4 Owner’s Manual
Item # Part # Description Qty
1 BFP-10866 LD-4 Cage 1
2 BFP-10864 Connector Base 1
3 BFP-10863 Leg Ext/Leg Curl Frame 1
4 BFP-51861 Anti Deection Plate 1
58 BFP-51750 SHCS 3/8” x 2 3/4” 2
61 BFP-51748 SHCS 3/8” x 3 1/4 2
70 BFH-50146 3/8” Flat Washer 8
71 BFH-50157 3/8” Nylock 4
LD-4

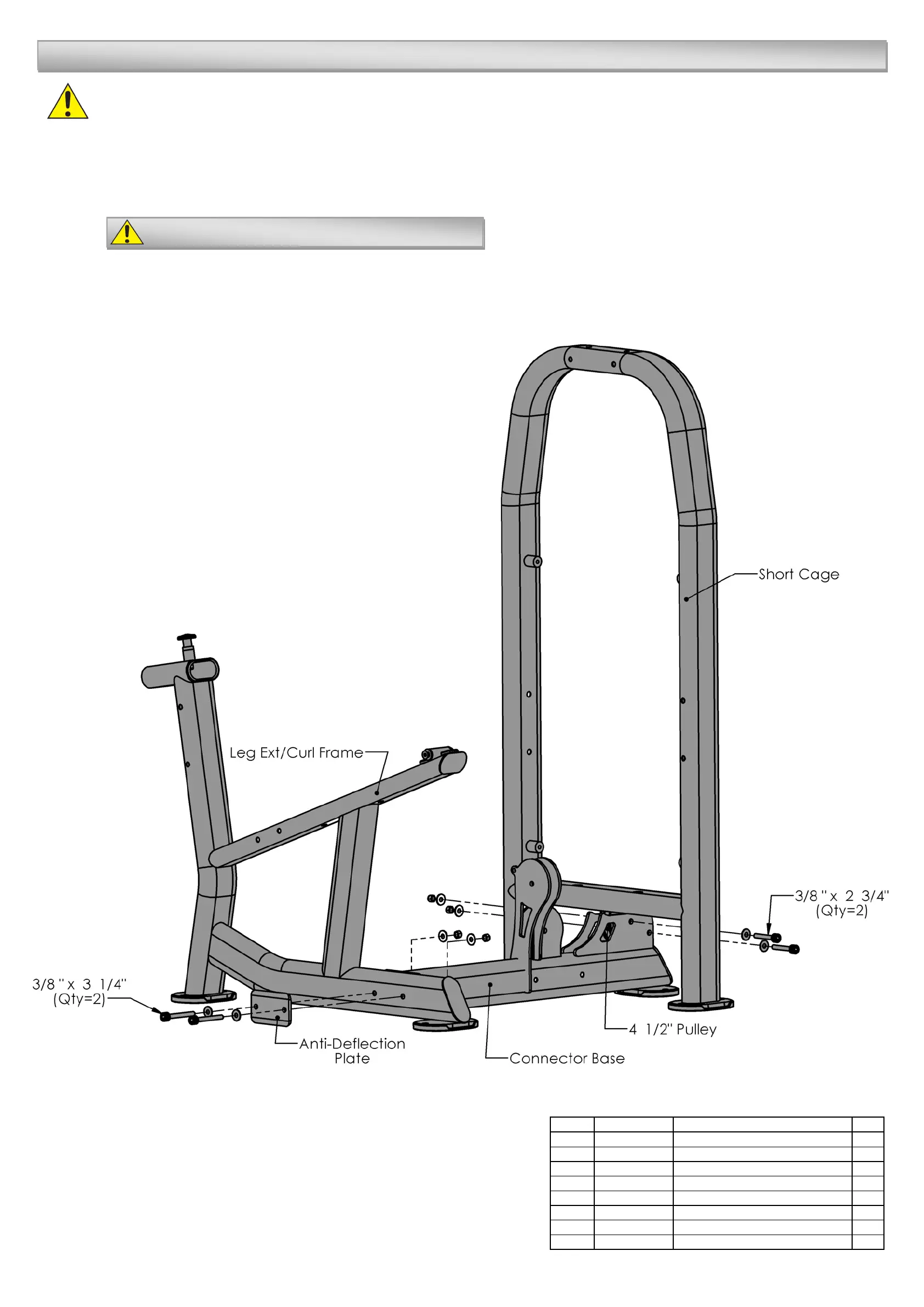

Step 1:
Note: Please Position Hardware in the same direction as shown in the figure. This will
make future steps easier to assemble
PLEASE READ AND FOLLOW ALL DIRECTIONS VERY CAREFULLY FOR PROPER INSTALLATION.
All Flat Washers and Nylocks are 3/8” unless otherwise noted. Anywhere a washer is against the
round side of a tube there is to be a 3/8” CURVED WASHER instead of a 3/8” FLAT WASHER.
DO NOT TIGHTEN BOLTS UNTIL STEP 4
