20

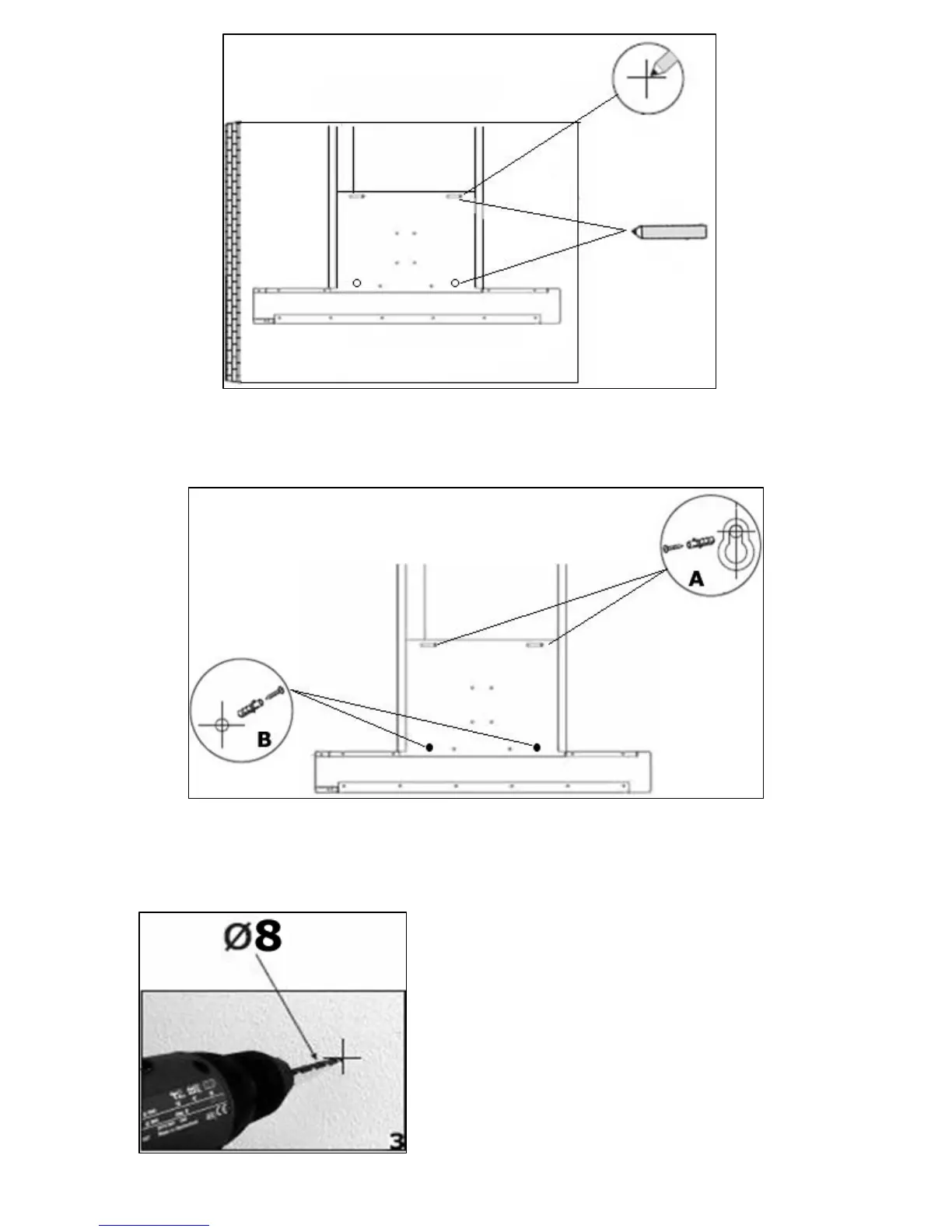

2) Position the hood against the wall that you are intending to
install it on and mark the position of the support holes that are
to be drilled (as shown in the figure below).
2a) The support screw holes are indicated by figure A in this drawing
and the anchoring screw holes are indicated by figure B.
3) Using a drill bit with an 8 mm
diameter, make holes in the wall on the
positions that you have marked in step
2.
