Bayliner Ciera - Page 45

Ciera 22’ to 28’ Cruisers • Owner’s Manual Supplement CHAPTER 3: DRAWINGS & DIAGRAMS
39

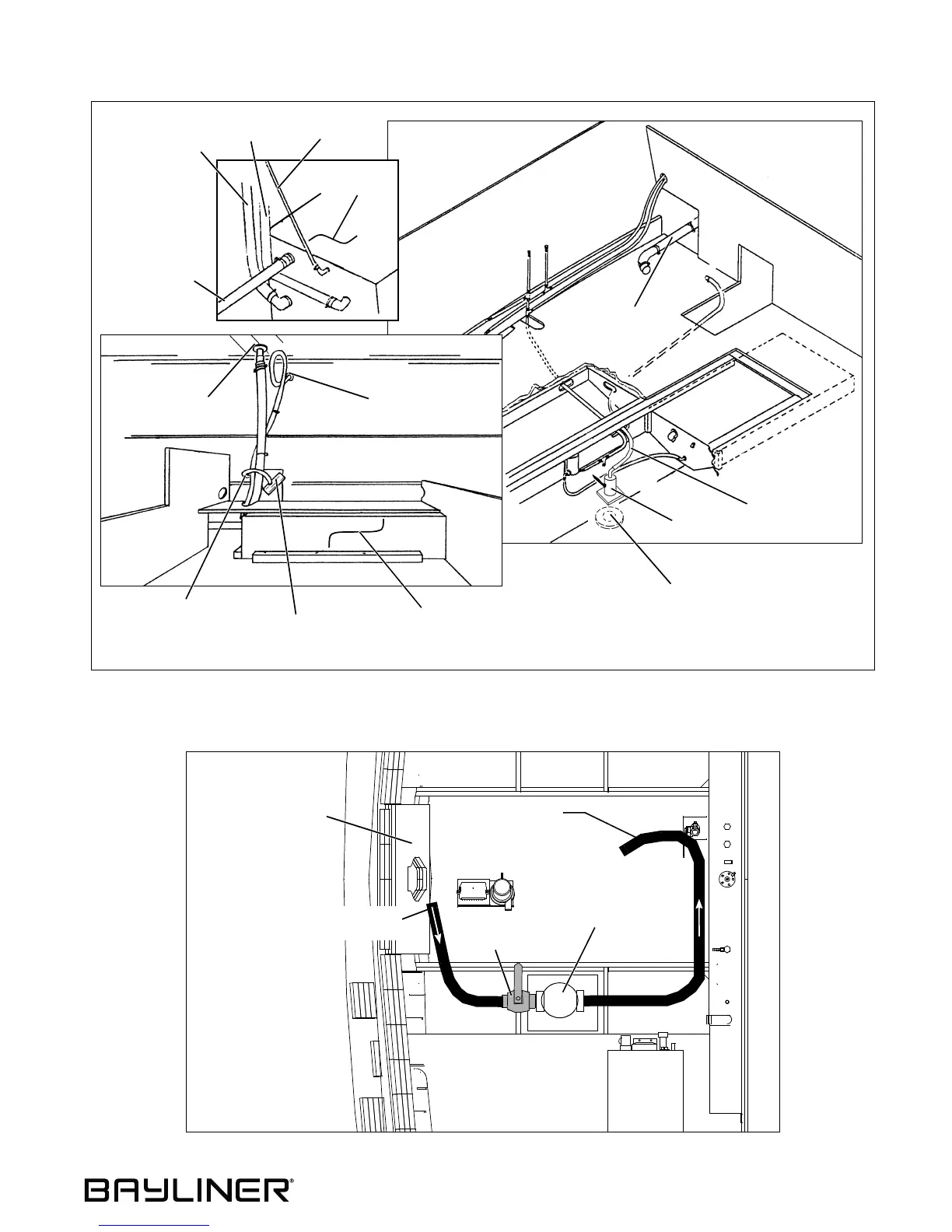

Marine Head System
Seawater Pickup System (Diesel Engine Option)
MACERATOR
FROM
TO THRU-HULL
HEAD TO
HOLDING TANK
SEACOCK
SEA
PICK UP
TO HEAD
WATER
HOSE
HOLDING
TANK
HEAD TO
TANK
TANK TO
MACERATOR
THRU-HULL
TO VENT
MACERATOR
PUMP
DECK WASTE
FITTING
TANK VENT
THRU-HULL
STRAINER
HOLDING TANK
TANK VENT
THRU-HULL
BALL
VALVE
TO DIESEL ENGINE
WATER INLET FITTING
SEAWATER
STRAINER
TRANSOM
TO GIMBAL HOUSING
WATER INLET FITTING
