POWER CONNECTIONS
IMPORTANT! Before making any connections, disconnect the car’s battery until the
installation is completed to avoid possible damage to the electrical system.
SPEAKER
FUSE
+
-
BRIDGED
POWER
GNDREM
+12V
+
L
L
-
+
R
R
-
CAR BATTERY
+12V
CAR BATTERY
+12V
--
++
94.794.7
RADIO'S REMOTE
TURN-ON OUTPUT
RADIO'S REMOTE
TURN-ON OUTPUT
IN-LINE POWER FUSE
MOUNTED WITHIN 12"
FROM BATTERY RECOMMENDED
IN-LINE POWER FUSE
MOUNTED WITHIN 12"
FROM BATTERY RECOMMENDED
(NOT PROVIDED)(NOT PROVIDED)
+
-
CH3
+
-
CH4
+
-
BRIDGED
FUSE
SPEAKER
POWER
GND REM
+12V
+
+
-
-
CH1
CH2
IN-LINE POWER FUSE
MOUNTED WITHIN 12"
FROM BATTERY RECOMMENDED
IN-LINE POWER FUSE
MOUNTED WITHIN 12"
FROM BATTERY RECOMMENDED
(NOT PROVIDED)(NOT PROVIDED)
94.794.7
RADIO'S REMOTE
TURN-ON OUTPUT
RADIO'S REMOTE
TURN-ON OUTPUT
CAR BATTERY
+12V
CAR BATTERY
+12V
--
++

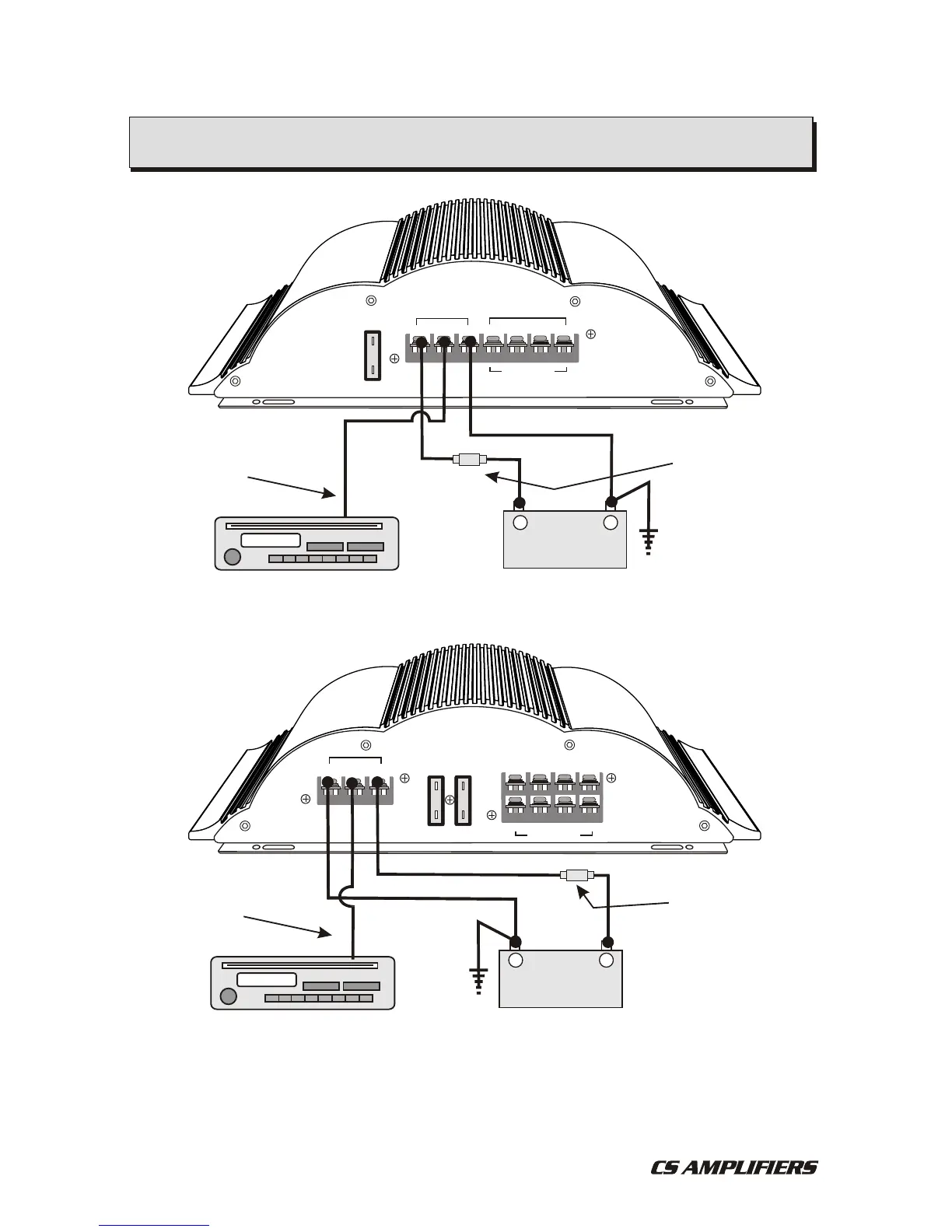

CSA50.4 & CSA200.3 POWER CONNECTIONS
CSA50.2 CSA150.1 & CSA300.1 POWER CONNECTIONS
