BBE 382ISW SONIC MAXIMIZER - Page 9

9

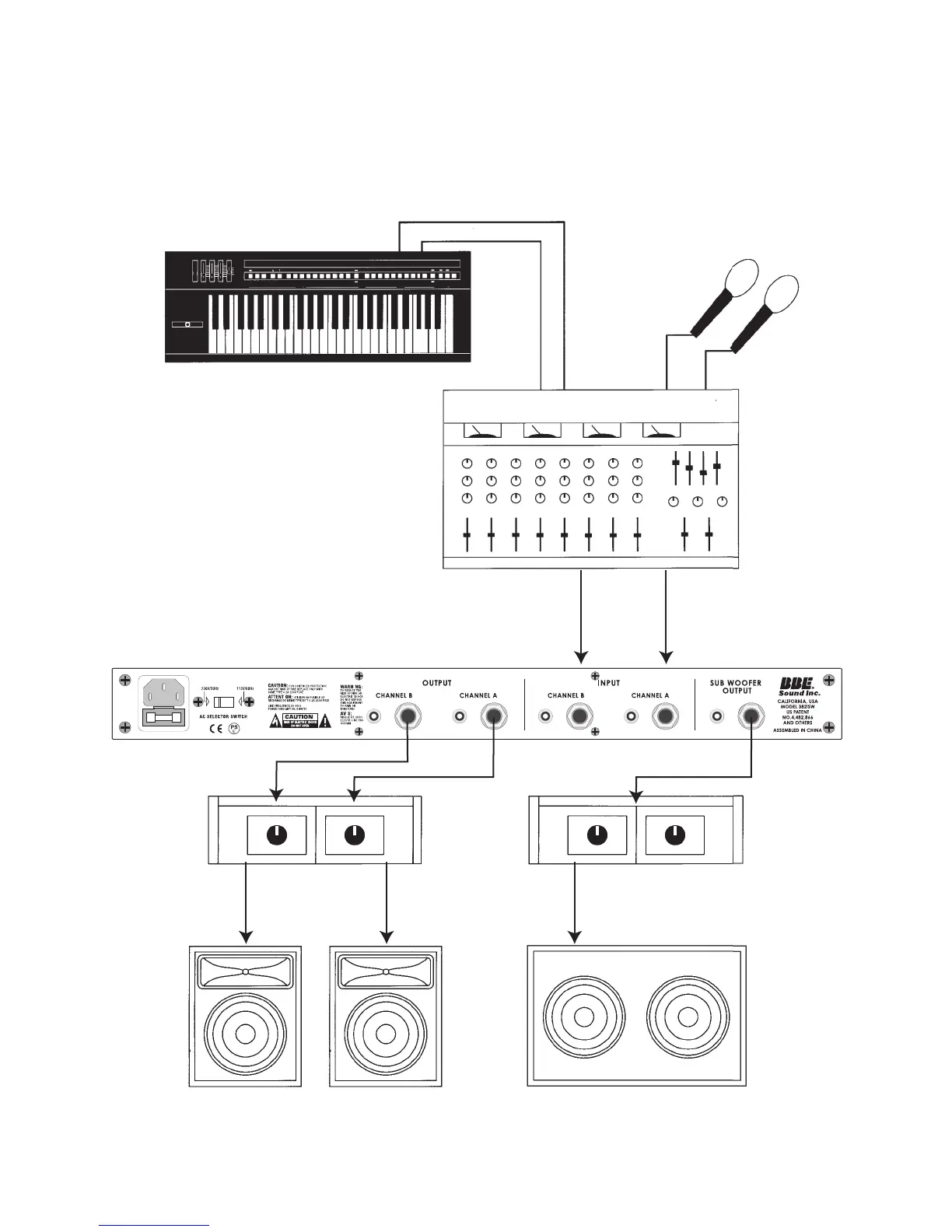

LIVE APPLICATION: NON-POWERED MIXER
Connect the BBE 382isw to the output of the mixing console or external equlization, if used. The output of
the BBE will drive either a crossover or a power amplier directly.
MAIN
OUTPUTS
115V
FULL-RANGE MIX
POWER AMP AND
SPEAKERS
SUB-WOOFER
POWER AMP AND
SPEAKERS
