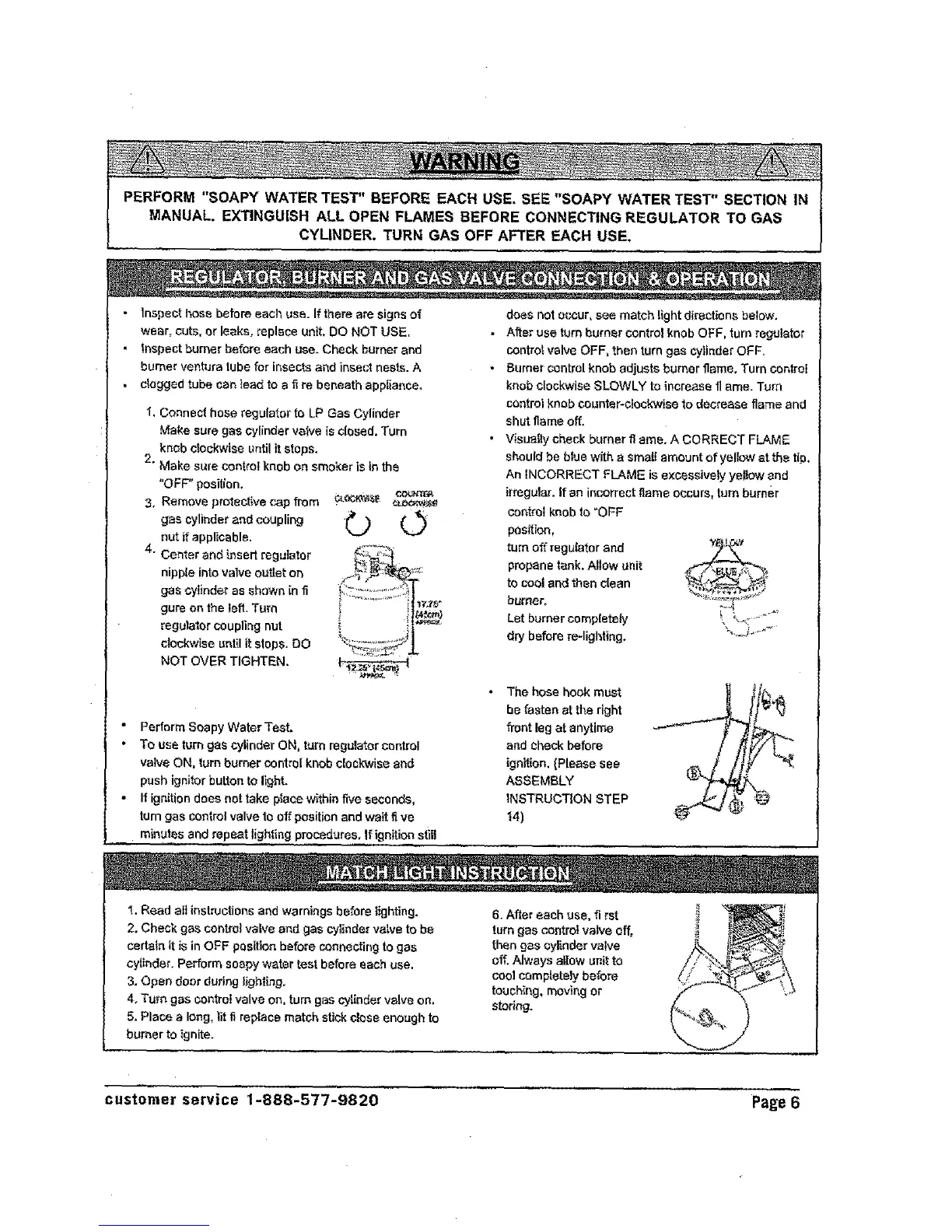

BBQ 23672 - Regulator, Burner and Gas Valve Connection & Operation; Match Light Instruction

PERFORM "SOAPY WATER TEST" BEFORE EACH USE. SEE "SOAPY WATER TEST" SECTION IN
MANUAL. EXTINGUISH ALL OPEN FLAMES BEFORE CONNECTING REGULATOR TO GAS
CYLINDER. TURN GAS OFF AFTER EACH USE.
• Inspect hose before each use. If there are signs of
wear. cuts, or leaks, replace unit. DO NOT USE.
• inspect burner before each use. Check burner and
burner venture tube for insects and insect nests. A
• c_ogged tube can lead to a f_re beneath appliance.
f, Connect hose regulator to LP Gas Cylinder
Make sure gas cylinder valve is closed. Turn
knob clockwise until it steps.
2. Make sure control knob on smoker is in the
"OFF" position.
3. Remove protective cap from v'_o_s_ ce_m_
gas cylinder and coupling O _
nut if applicable,
4. Center and _nsert regulator _:::
nipple into valve outlet on _::
gas cylinder as shown in ti
gure on the left. Turn 11_:_'_
regulator coupling nut '_ ._.o.._it*!
clockwise until it stops. DO :-:_ .L
NOT OVER TIGHTEN.
• Perform Soapy Water Test.
• To use turn gas cylinder ON, turn regulator control
valve ON, turn burnercontrol knob clockwiseand
pushignitorbutton to light.
• If ignition does not take place within five seconds,
turn gas c_onlrolvalve to off positionand wait five
minutes and repeat lighting procedures. If ignition still
does not occur, see match tight directionsbelow.
• After use turn burner control knob OFF, turn regulator
contro_ valve OFF, then turn gas cylinder OFF.
• Burner contru[ knob adjusts burner flame. Turn control
knob clockwise SLOWLY to increase 11arne. Turn
control knob counter-clockwise to decrease flame and
shut flame off.
• Visually check burner fl amel A CORRECT FLAME
should be blue with a small amount of yellow at the tip.
An INCORRECT FLAME is excessively yeliow and
irregular. If an incorrect flame occurs, turn burner
control knob to "OFF
position,
turn off regulator and _
propane tank. Allow anit
to cool and then clean
burner.
Let burner completely _. \.<- ..........
dry before re-lighting. _'_'_S"'="_
The hose hook must
befasten at the right
front leg at anytime
and checkbefore
ignition. (Please see
ASSEMBLY
INSTRUCTION STEP
t4)
1. Read eli instructions and warnings before lighting.
2. Check gas control valve and gas cylinder valve to be
certain it is in OFF position before connecting to gas
cylinder. Perform soapy water test before each use,
3. Open door during lighting.
4. Turn gas control valve on. turn gas cylinder vetve on,
5. Place a long, lit fl replace match stick close enough to
burner to ignite.
6. After eaoh use. fi rst
turn gas control valve off,
then gas cylinder valve
off.Always allow unit to
cool completely before
touching, moving or
storing.
customer service 1-888-577-9820 Page 6
