6 |
PRODUCT ASSEMBLY
2

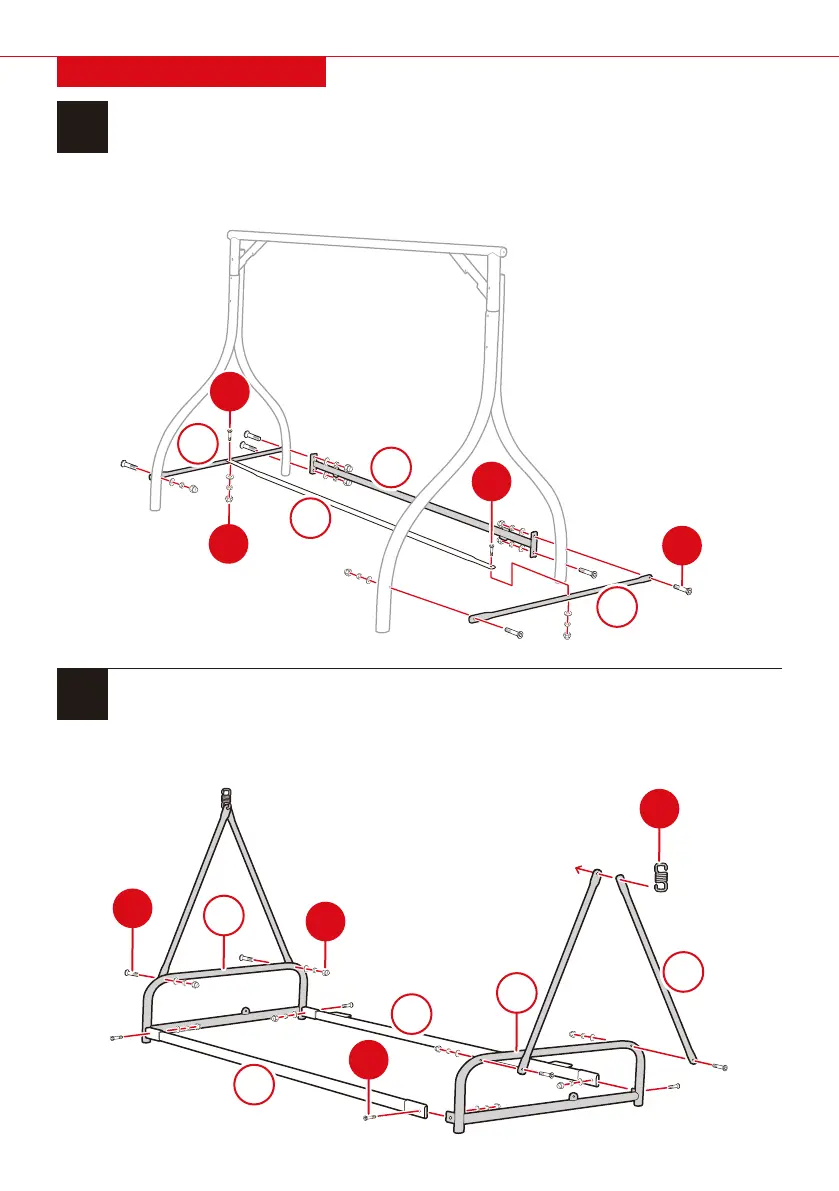

Attach a part D leg support and one side of the part E back support to the legs with three part
4 bolt sets. Repeat on the other side.
NOTE: The leg support and back support share a part 4 bolt set.
Attach the part F middle support with two part 8 bolt sets, one on each side.
Place a part 9 nut cap on every nut.
9
x8
8
8
x6
D
D
F
E
4
3
Attach the part I left seat frame to the part G front swing frame and part H back swing frame
with two part 6 bolt sets. Repeat on the other side to attach the part J right seat frame.
Attach four part K swing arms with four part 5 bolt sets.
Secure the top of the swing arms with two part 10 spring hooks.
x4
G
H
K
I
5
x4
J
9
x8
x2
10
6
x4
