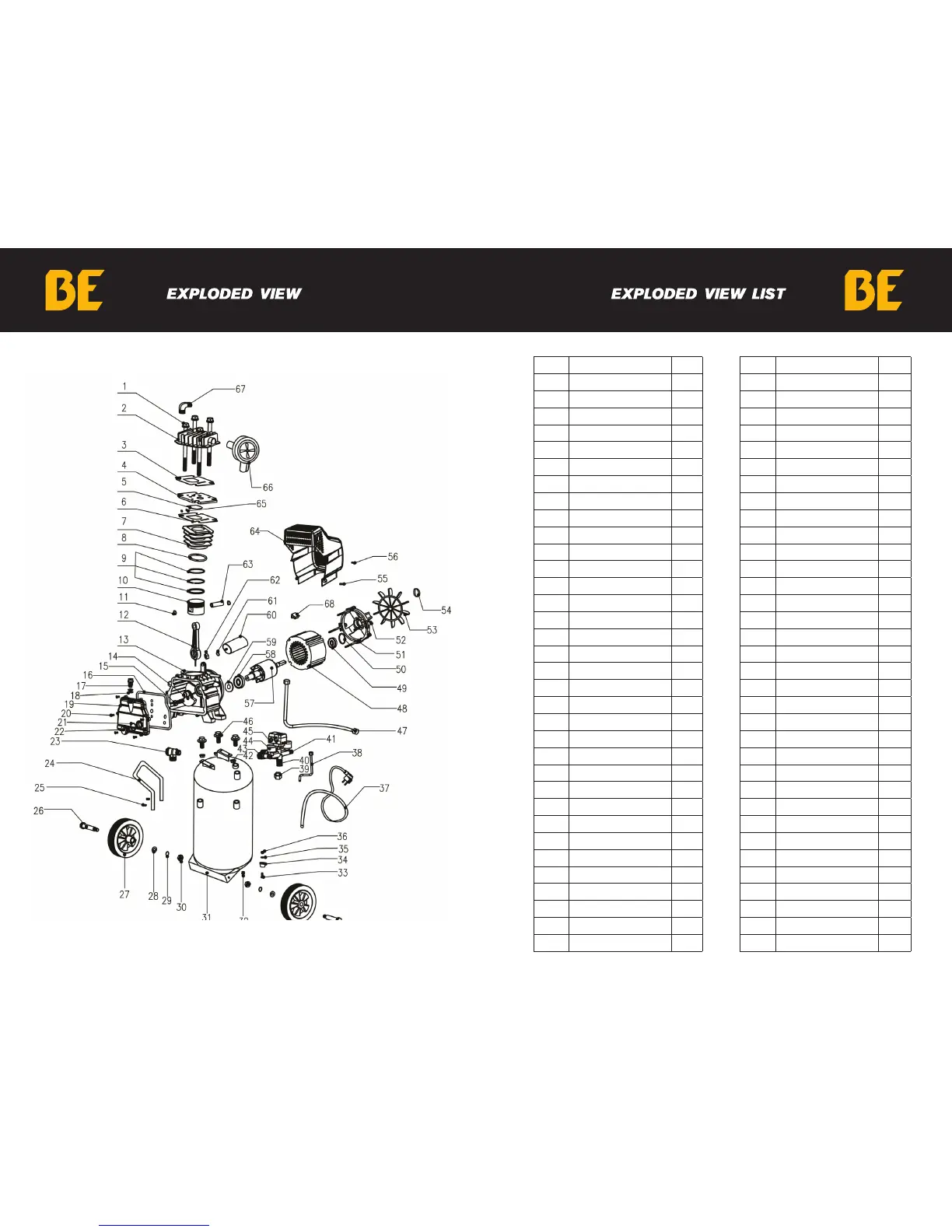

BE AC2020 - Parts and Troubleshooting

20 21
Item Description Qty
1 Blot M8 4
2 cylinder cover 1
3 cylinder cover gasket 1
4 valve plate 1
5 valve clack 1
6 valve plate gasket 1
7 cylinder 1
8 cylinder gasket 1
9 piston ring 3
10 piston 1
11 circlip 2
12 connecting rod 1
13 crank case 1
14 crank 1
15 hex bolt M8 1
16 rubber gasket 1
17 breath pipe 1
18 sealed ring 2
19 crank case cover 1
20 bolt M6 6
21 oil leveler gasket 1
22 oil leveler 1
23 only-way valve 1
24 hand 1
25 Tight settle the bolt 2
26 wheel bolt M10 2
27 wheel 2
28 spring washer 2
29 washer 2
30 lock nut M10 2
31 tank 1
32 Drain valve 1
33 bolt M8 1
34 washer foot 1
Item Description Qty
35 washer 1
36 nut M8 1
37 Plug line 1
38 release pipe 1
39 nut 1
40 regulator valve 1
41 safety valve 1
42 lock nut M8 4
43 quick couplers 2
44 pressure gauge 2
45 pressure switch 1
46 lock bolt M8 4
47 discharge pipe 1
48 stator 1
49 brearing 6203 1
50 conugated washer 1
51 motor cover 1
52 bolt M5 4
53 fan 1
54 circlip 1
55 bolt 2
56 bolt M5 2
57 rotor 1
58 brearing 6204 1
59 sealing ring 1
60 capacitance 1
61 washer 1
62 nut M8 1
63 piston pin 1
64 Fan cover 1
65 column 2
66 Air filter 1
67 Curved head 1
68 thermal protector 1
