Subject to correction and technical modifications 47 Copyright by Becker GmbH, D-76303 Karlsbad

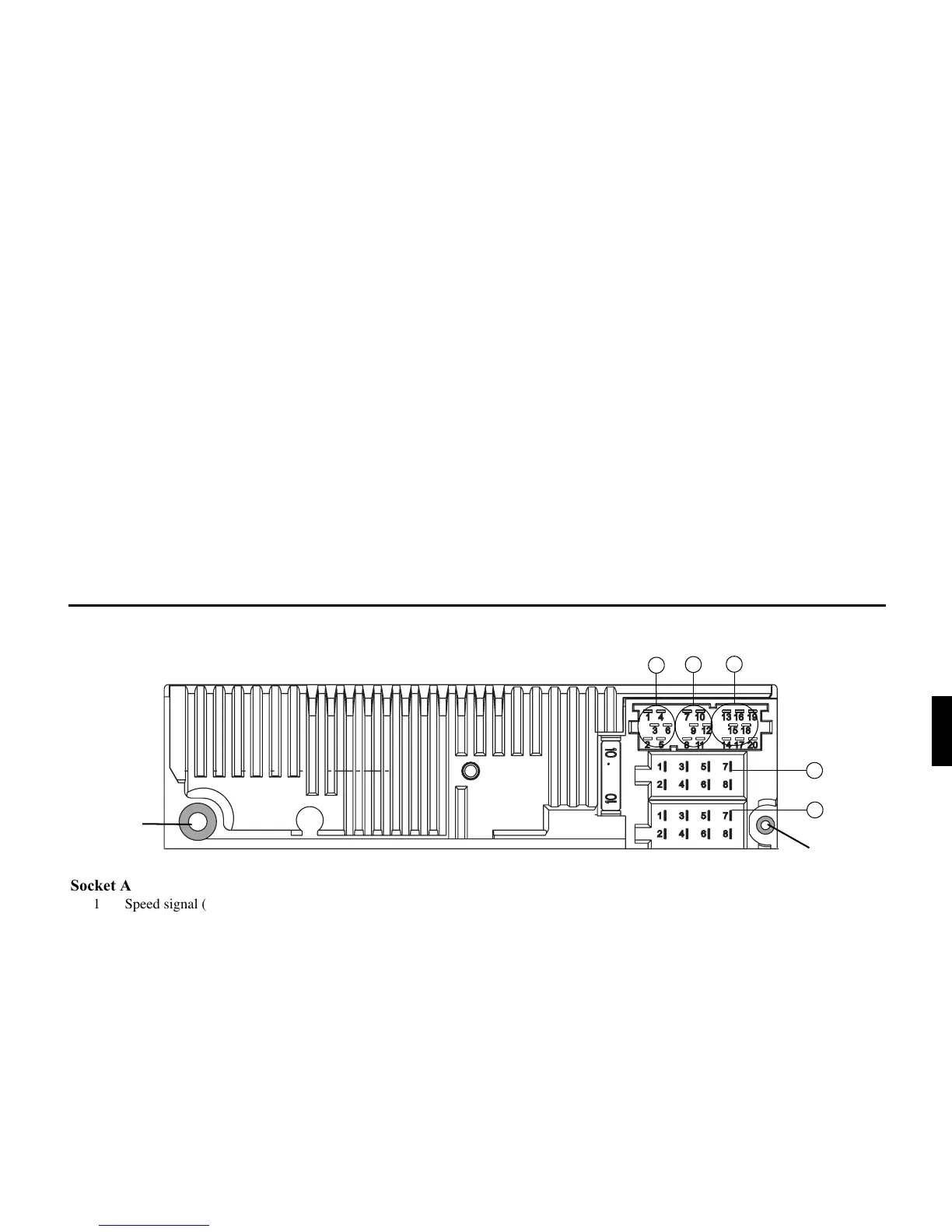

,QVWDOODWLRQJXLGH
 &RQQHFWLRQV
&RQQHFWLRQLQVWUXFWLRQV
6RFNHW$
1 Speed signal (GAL)
2 Reversing lamp signal
3 Telephone mute / clearing function
4 Permanent positive (terminal 30)
5 Control output for automatic antenna/amplifier
6 Illumination (terminal 58)
7 Switched positive (terminal 15)
8 Earth (terminal 31)
6RFNHW%
1 Loudspeaker rear right +
2 Loudspeaker rear right -
3 Loudspeaker front right +
4 Loudspeaker front right -
5 Loudspeaker front left +
6 Loudspeaker front left -
7 Loudspeaker rear left +
8 Loudspeaker rear left -
6RFNHW&
1 LineOut rear left
2 LineOut rear right
3 AF earth
4 LineOut front left
5 LineOut front right
6 Subwoofer LineOut
6RFNHW&
7-12 Special connection for Becker CD changer
6RFNHW&
13 AF telephone input
14 Earth - telephone input
15-17 Special connection for Becker CD changer
18 CD AF earth (AUX)
19 CD AF left (AUX)
20 CD AF right (AUX)
C1
C2
C3
B
A
*36
DQWHQQD
$QWHQQD
EXVKLQJ
