Operating Manual | EMS-58 | Beckmann GmbH
P.-No Parameter name/Parameter explanation Param. Range
case of a power failure. After power on again the
operation will continue. If set to “OFF”, the device will be
“free” again after power on.
Table 1 : Parameter overview
6 Technical data
Power source
230V AC
Mains frequency
50 / 60 Hz
Power consumption
5W
Max. switched power
Max. 16A / 230V
Operating temperature
0 up to 40 °C
Operating humidity
30 up to 70 %
Weight
3,5 kg
Dimensions
162 x 260 x 110 mm
Data retention in “off”-
position
40 years
Table 2 : Technical data

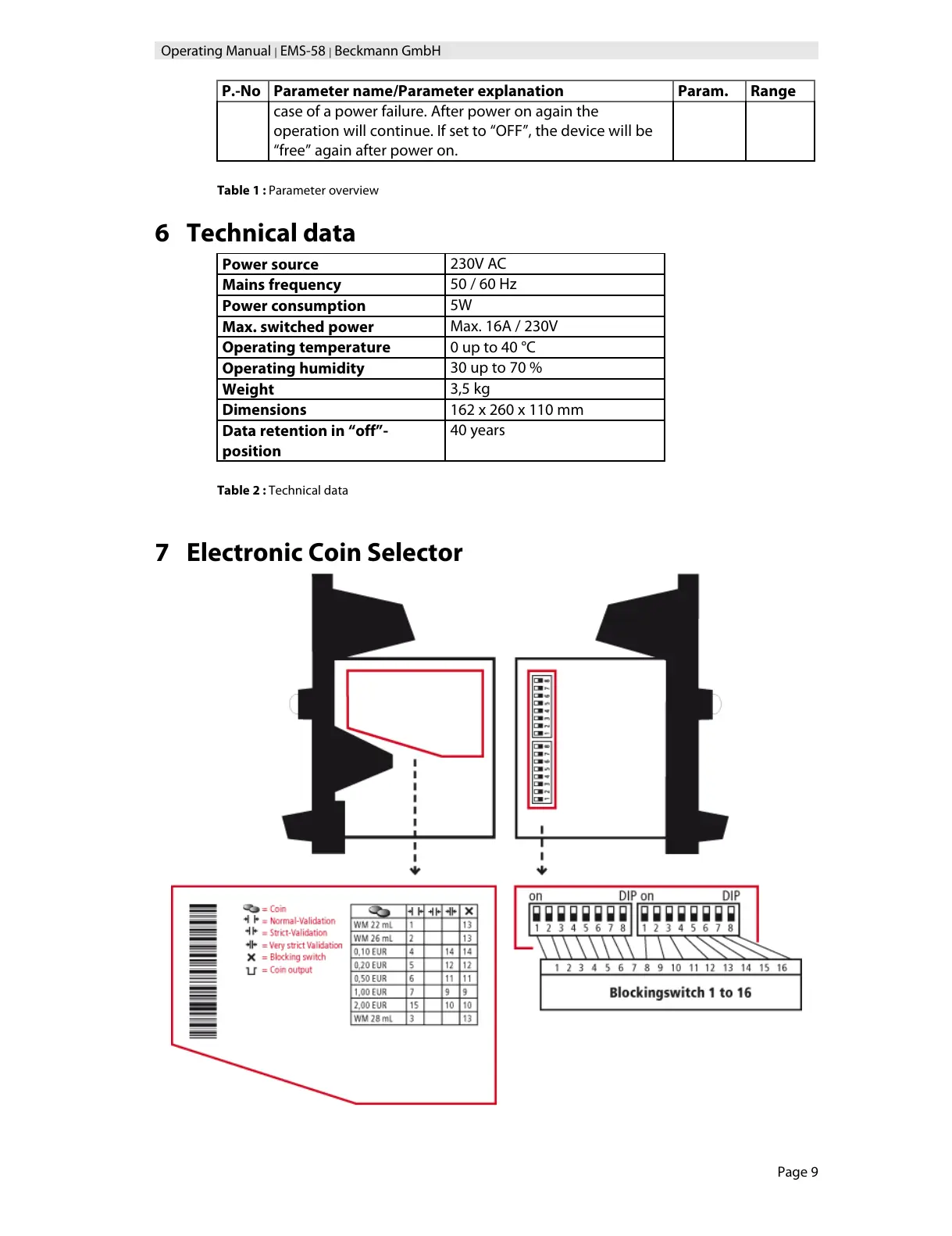

7 Electronic Coin Selector
Page 9
