Rear wheels

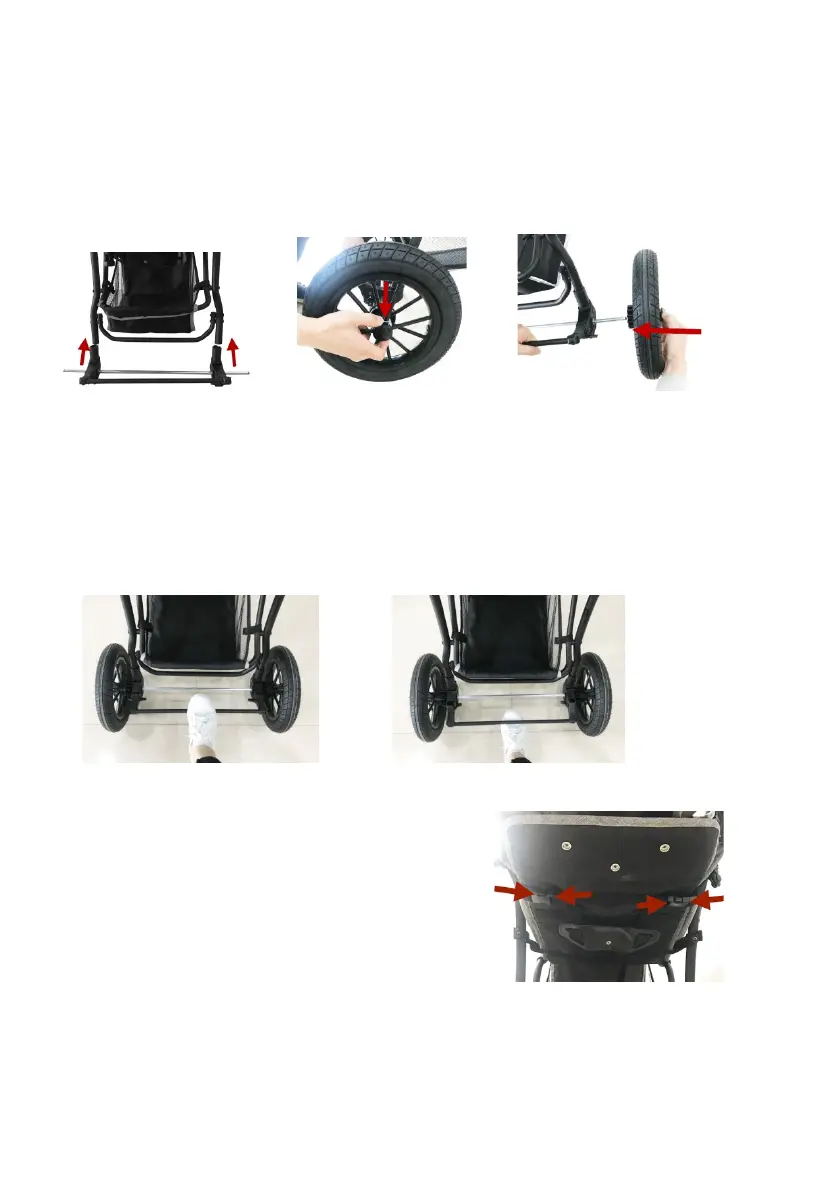

Insert the rear axle onto the two ends of the frame and push the axle
firmly until it clicks into place on both sides (Fig.8).
Press the metal side of the wheels and put both wheels onto the bolt on
the rear frame tube until the wheels mounted correctly (Fig.9-10).
Fig.8
Fig.9
Fig.10
Link brake
To engage the brakes, push down the brake lever on the rear axle with
your
foot (Fig.11). To disengage the brakes, lift the lever with your foot
(Fig.12).
Fig.11
Fig.12
BACKREST ADJUSTMENT
The seat has 3 position recline that is
controlled by buckles assembly behind
the seat.
Clip together th
e two buckles on either
side of the backrest to position in the
upright (Fig.13).
To recline the seat, loosen the buckle and
to get the required recline position.
Fig.13
邑
4
