TABLE 1

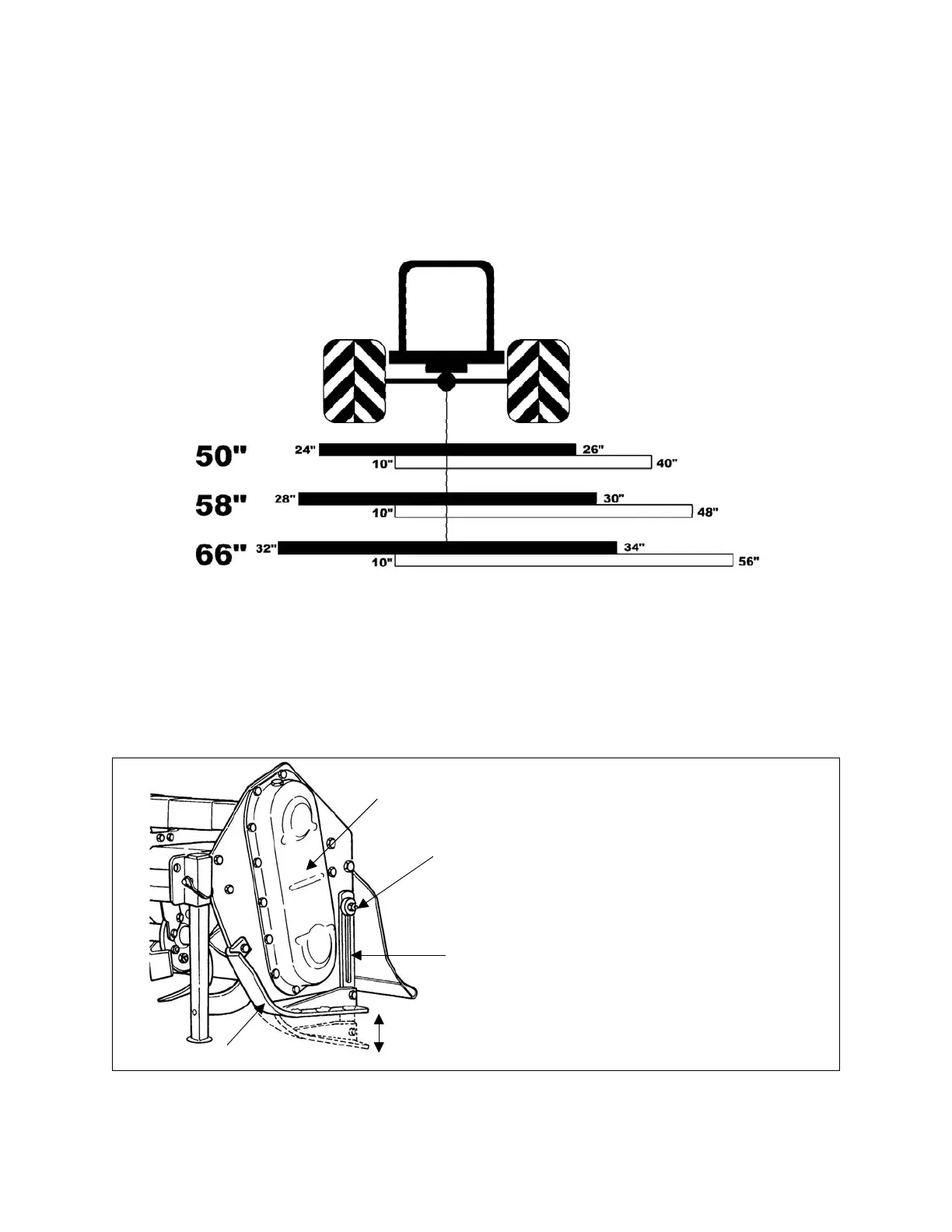

The drawing below represents the Till-Rite T50 tiller’s right side-shift capabilities.
The upper black line of the drawing shows the three point hitch of the tiller working in its
center position. The lower white line shows the three point hitch of the tiller shifted
completely to the right.
3.04 - Depth Control
The tilling depth is controlled by raising or lowering the side skids. The tilling depth is at
its maximum when the skids are touching the side plates. Lowering the skids, raises the
tiller from the ground and lowers its working depth.
OPERATION 17 BEFCO
T
ILL-RITE T50 OPERATOR’S MANUAL
Fig. 10
1
2
3
4
1. locking nut
2. adjustment arm
3. side skid
4. chain case
