WARNING: For models with a shear bolt driveline: Failure to install the snap ring
on input shaft will allow driveline to swing freely if bolt is sheared causing
possible injury or death.
OPERATION 14 BEFCO
T
ORNADO RSD & RRB OPERATOR’S MANUAL

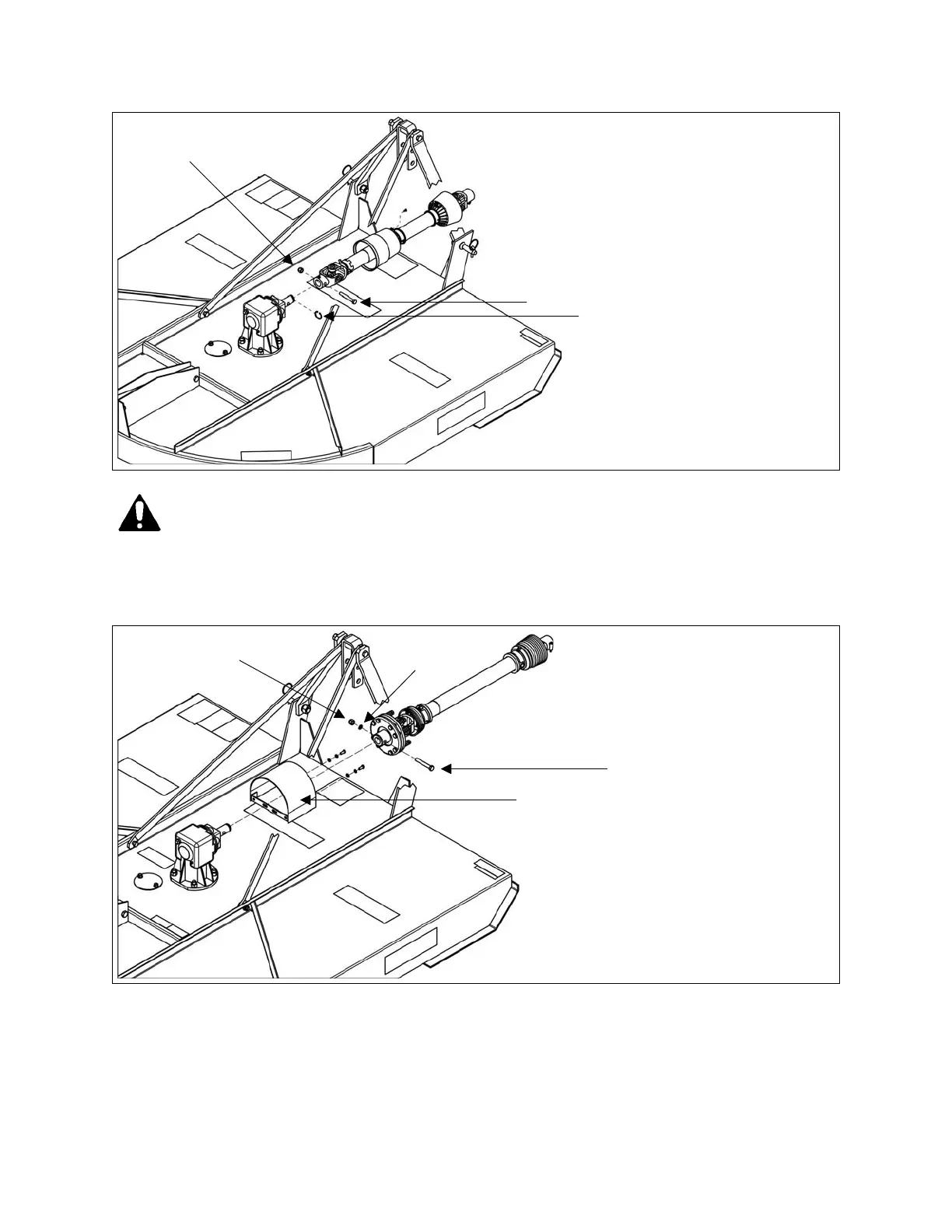

Fig. 3 - Driveline with shear bolt assembly.
shear bolt 1/2"-13x3.5" G2
nut 1/2"-13
snap ring
Fig. 4 - Driveline with slip clutch assembly.
bolt M12-1.25x70 C8.8
nut M12-1.25
slip clutch shield
lock washer
