Behringer S32 - Linking an S32 and S16

Quick Start Guide
15
S32 Hook-up
OUT 17-24
IN 33-48
VIEW
VIEW
VIEWVIEWVIEWVIEWVIEWVIEW
VIEW
VIEW
VIEW
– 6
X32
IN 1-32
OUT 1-16
Note: The signals on both units are fully defined on
the X32’s ’Routing/AES50 Output’ page.

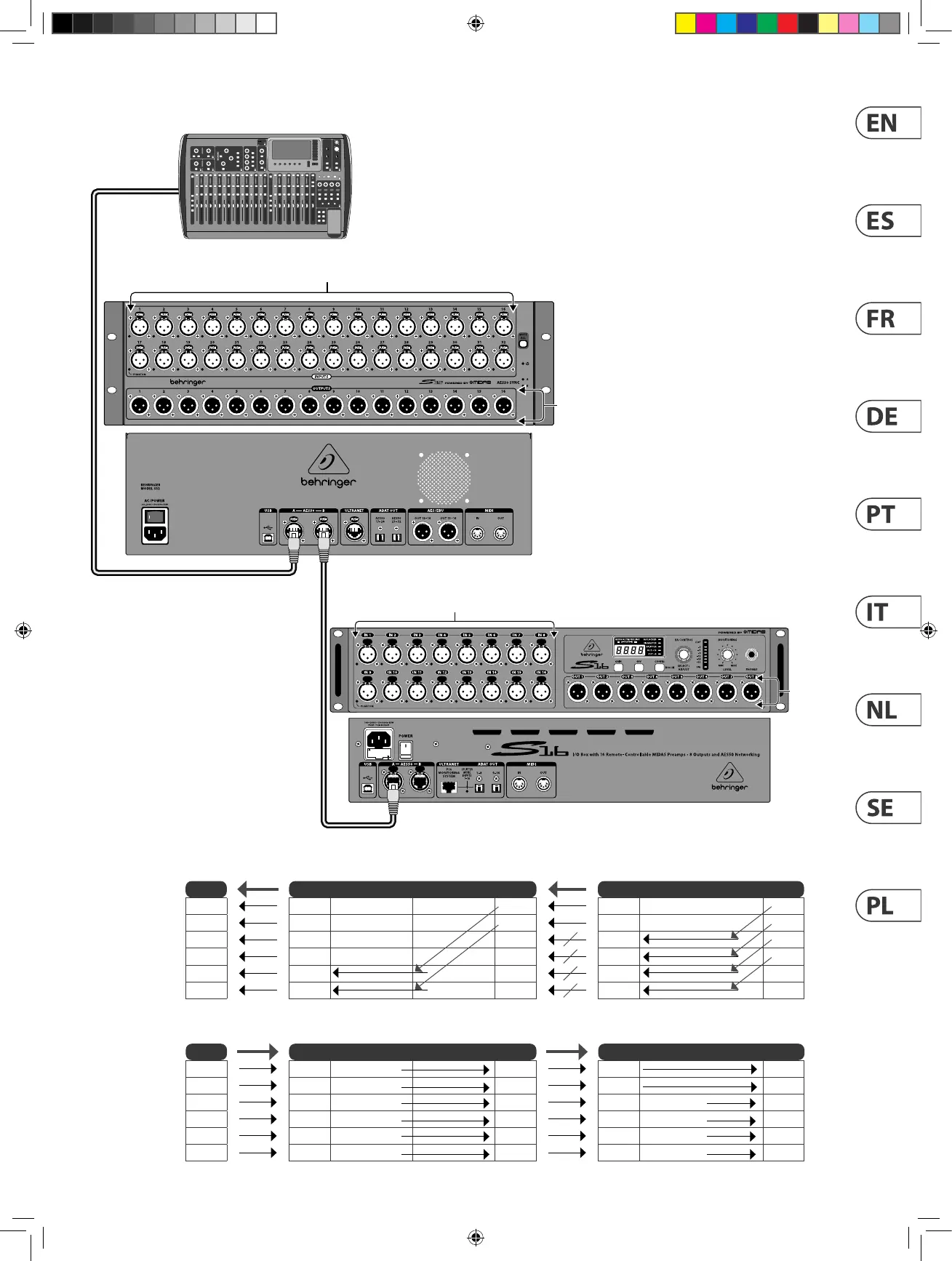

S32 with S16 and console: S32 Digital Stage Box
from stage
A
A S32 B A S16 -2- (Out 17-24) B
1-8
1-8 Local In 1-8 1-8 1-8 Local In 1-8 1-8
9-16
9-16 Local In 9-16 9-16 9-16 Local In 9-16 9-16
17-24
17-24 Local In 17-24 17-24 17-24 17-24
25-32
25-32 Local In 25-32 25-32 25-32 25-32
33-40
33-40 33-40 33-40 33-40
41-48
41-48 41-48 41-48 41-48
TX RX TX RX
Mixing Console FOH
(clock master)
RX S32 TX RX S32 TX
to stage
A
A S32 B A S16 -2- (Out 17-24) B
1-8
1-8 XLR OUT 1-8 1-8 1-8 1-8
9-16
9-16 XLR OUT 9-16 9-16 9-16 9-16
17-24
17-24 ADAT OUT 17-24 17-24 17-24 XLR OUT 1-8 17-24
25-32
25-32 ADAT OUT 25-32 25-32 25-32 ADAT OUT 25-32 25-32
33-40
33-40 P16 OUT 1-8 33-40 33-40 P16 OUT 1-8 33-40
41-48
41-48 P16 OUT 9-16 41-48 41-48 P16 OUT 9-16 41-48
Linking an S32 and S16
Enlace de un S32 y un S16
Connexion d’un S32 et d’un S16
Kopplung einer S32 und einer S16
Conectando um S32 e um S16
Collegamento di un S32 e S16
Een S32 en S16 koppelen
Länka en S32 och S16
Łączenie S32 i S16
