Speci cations
 Protection level: IP40
 V-supply: 7.5Vdc to 32Vdc
 Maximum current consumption (unloaded): Normal mode:
< 80 mA ~12/24V. Sleep mode: < 1.5 mA ~ 12/24V
 CAN Highspeed and/or CAN Lowspeed
 Networks: Inputs: CAN connections
 Outputs: all outputs are protected against shortcircuit
to V-supply and ground.
Digital outputs (connector pin 11 and 12)
 Voltage range: V-supply (from 7.5V to 32V)
 Pull Down to ground
 Max. current: 500mA per output
 Thermal protection.
Frequency/Digital outputs (connector pin 9 and 10)
 10V with Pull Down to ground (BCI-2: V-Supply
[from 7.5V to 32V] Pull Down to ground)
 Max. freq. 2 kHz
 Max. current: 50 mA/output
Digital outputs (connector pin 7, 8, 15 and 16)
 10V with Pull Down to ground
 Max. current: 50 mA/output
Temperature
Operating temperature: -40 °C / +85 °C
www.in-car.nl
Login voor één instructie | Log-in for one instruction
Username:
Password:

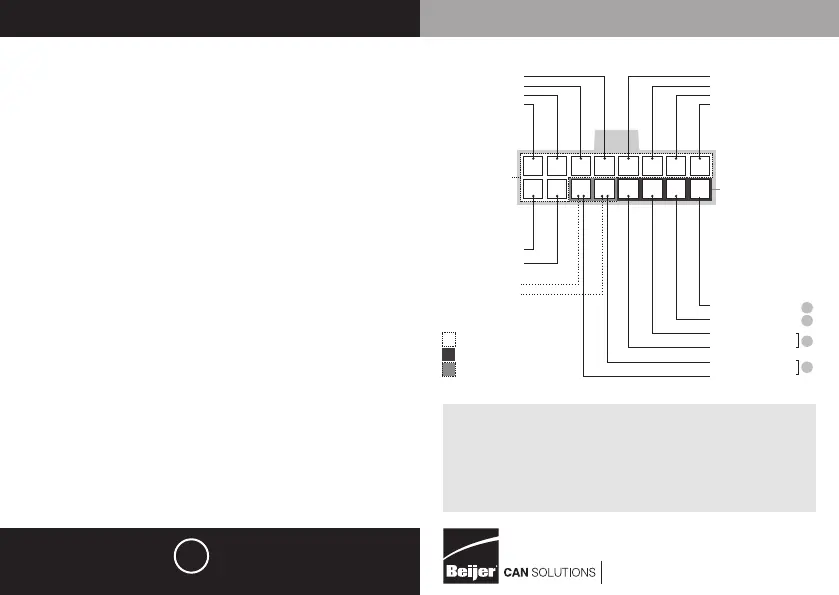

16 15 14 13 12 11 10 9
87654321
Tx RS232
Rx RS232
Power supply
GND
CH highspeed
CL highspeed
CH lowspeed
CL lowspeed
CL highspeed
CH highspeed
INPUT
OUTPUT
OUTPUT/INPUT
blue purple white green red/grey black/grey pink black
red brown red/black white/black yellow grey red/brown white/brown
yellow/black green/black
INPUT
OUTPUT
2
1
1
3
European certi cation: E4 10R-04 2371 | Patent 1024730
