BeiJer E710 - MELSEC PLC System Connections; CPU Port Connection Guidelines; MELSEC Cable Table and Series Diagrams

B-1

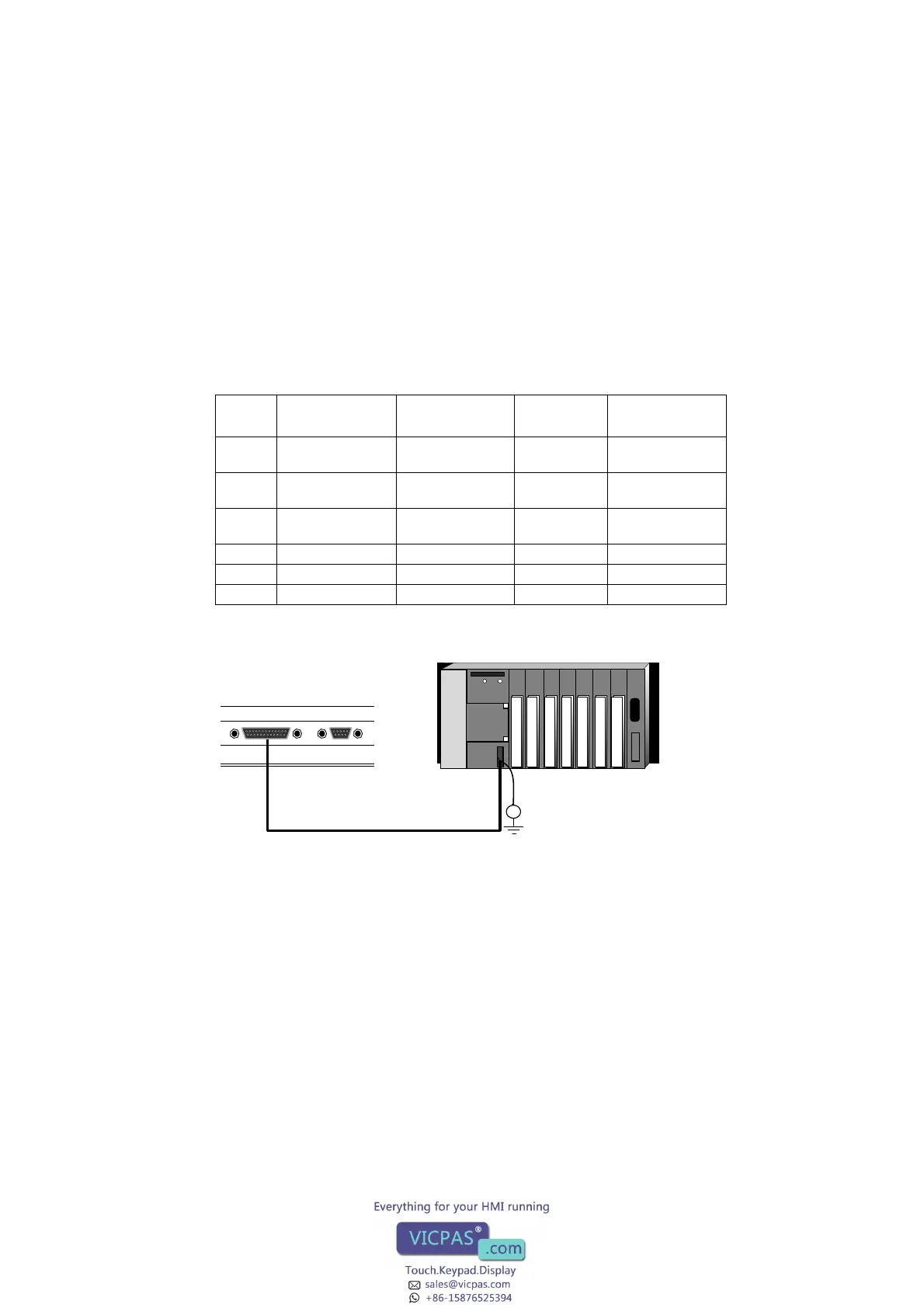

Connection to MELSEC PLC systems
Connection to the MELSEC PLC system´s CPU-port
Cable table
A and QnA series
Name
Continental
Europe
GB USA Rest of the world
Cable 1 MAC-PC-CAB-R2/
CAB5
MAC-PROG/9-CAB/
CAB5
MTA-PROG-C/
CAB5
MAC-PROG/9-CAB/
CAB5
Cable 2 MAC40-CPU-CAB-
R4/CAB18
MAC 40+ CAB/
CAB18
MTA-D25-C/
CAB18
MAC30/40-CAB/
CAB18
Cable 3 FX20P-CAB/CAB19 FX-20P-CAB/
CAB19
MTA-MINI-D25/
CAB19
FX20P-CABN/
CAB19
Cable 4 FX20P-CADP FX-20P-CADP - MAC10/FX0-CADP
Cable 5 CAB16 CAB16 CAB16 CAB16
Cable 6 CAB17 CAB17 CAB17 CAB17
A and QnA system
< 15m Cable 2
> 15m Cable 2 + CR01
RS422
RS232C
Not valid for the AnE
system.
NOTE!
Terminal
