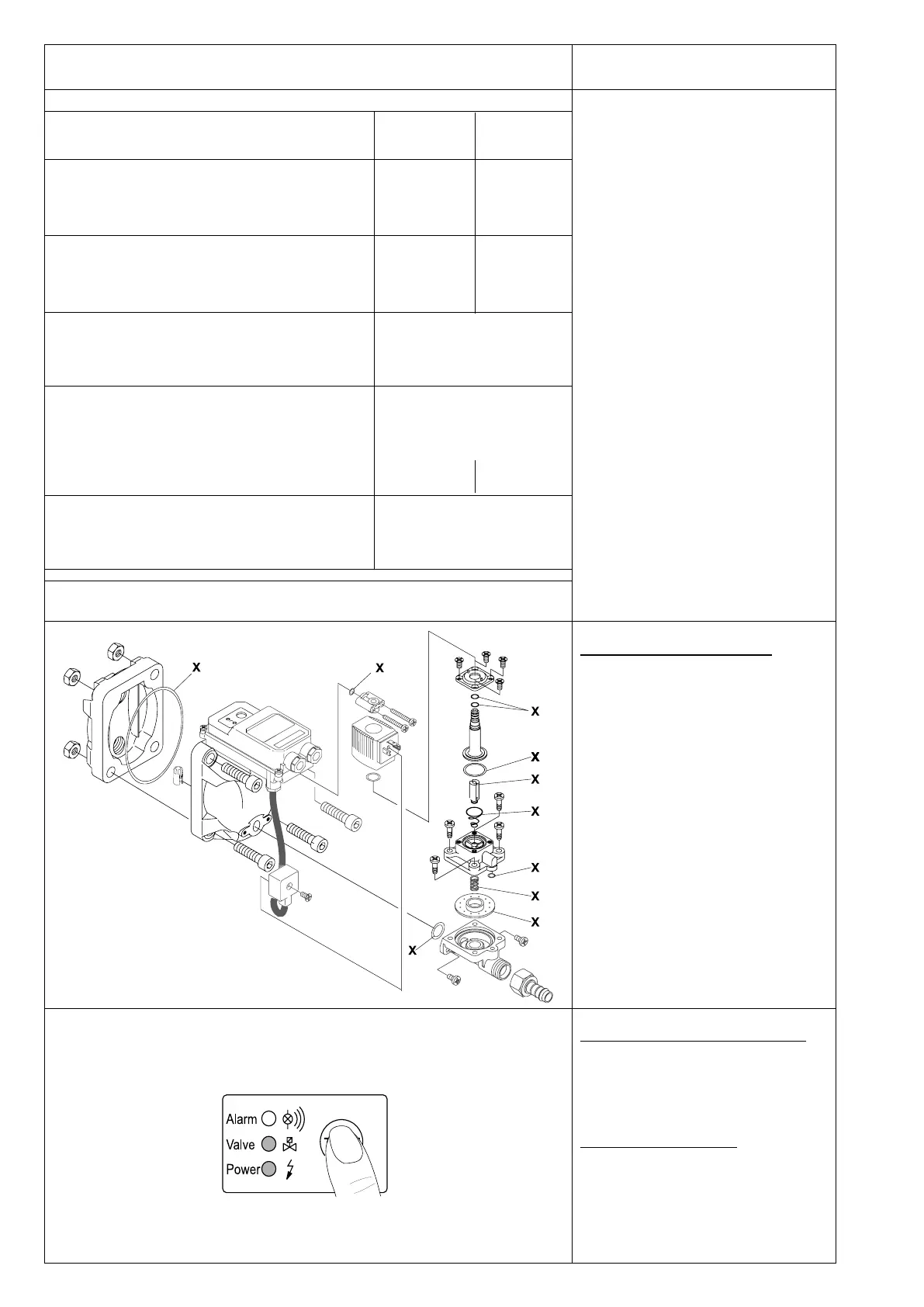

BEKOMAT 13 - Page 12

12
BEKOMAT 13, 13 CO, 13 CO PN25, 13 CO PN50
Maintenance • Mantenimiento • Entretien • Manutenção
Maintenance recommendation:
• Housing and valve should be cleaned
once a year.
• Replace wearing parts once a year.
Set of wearing parts ( x )
BEKOMAT 13 XE KA13 101
BEKOMAT 13 CO XE KA13 101
BEKOMAT 13 CO PN25 XE KA13 301
BEKOMAT 13 CO PN50 XE KA13 301
Electrical data • Caracteristicas eléctricas
Charactéristiques electrique • Dados eléctricos
230/115/24/...
VAC
24 VDC
< 250 VAC / < 0,5 A
> 12 VDC / > 50 mA
english
Max. power input
absorbida y fusible recomendado
Consommation maximale
Potência máx. absorvida
Supply voltage (see type plate)
Tensión de entrada (ver etiqueta identicativa)
Alimentation électrique (voir plaque sign.)
Tensão de rede (ver placa indicadora)
Recommanded cable jacket diameter
Diámetro exterior del cable recomendado
diamètre recommandé pour la gaine du câble
Diâmetro recomendado do invólucro de cabo
Recommanded cable cross-section and fuse
protection
Sección de cable y fusible recomendado
Section recommandé des ls et fusibles
Secção recomendadodo cabo e fusível
recomendado
Contact loading
Carga del contacto
Pouvoir de coupure
Carga de contato
P < 2,0 W
U
0
= 24 VDC
-10/+25%
P < 2,0 VA
Uac = ... ±10%
50 – 60 Hz
3 x 0,75 mm² / 5 x 0,25 mm²
0,5 A *)
100 mA *) **)
ø 5,8 - 8,5 mm
Potential-free contact
The alarm signal can be relayed via a
potential-free contact. The changeover
contact can be operated, e.g., in the fail-
safe mode.
When operating voltage is being applied
and the BEKOMAT device is functioning
correctly, the alarm relay is energized.
The contact element (0.7 - 0.8).
When there is no operating voltage or
in the case of a fault signal, the alarm
relay drops out. The contact element is
open (alarm).
Externeral test button (optional)
Here, the normal test button function
has been extended for additional use
outside the BEKOMAT unit. This makes
it possible to discharge any condensate
in the unit by remote control, if required.
When the external contact closes, the
valve will open.
*) time lag
**) min. internal resistance of
voltage source Ri> 12 Ohm
Functional test of BEKOMAT device:
• Briey press test button 2 sec.
• Valve opens for condensate dis-
charge.
Checking of alarm signal:
• Shut off condensate inow.
• Press test button for at least 1 minute.
• Red LED ashes (after 1 minute).
• Alarm signal is being relayed.
