Belimo EPIV Series User Manual

V3.3 07.2016•Subject to modifi cation
UL marked actuators is optional, please contact your local Sales Representative for details.
14

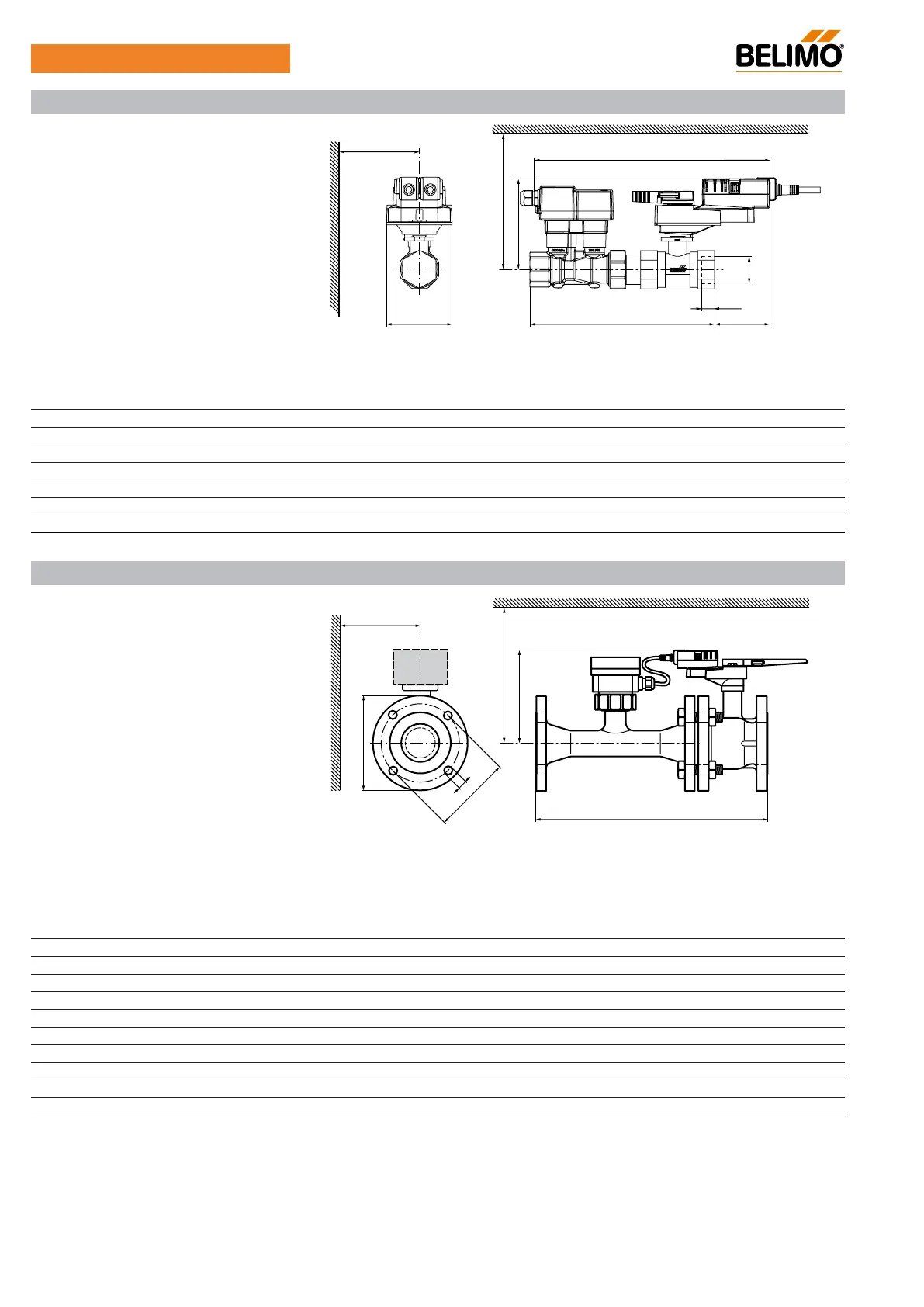

Dimensional drawings
L1
H
min. X
min. Y
L
L2B
L3
Rp
Type DN
[mm]
L
[mm]
L1
[mm]
L2
[mm]
L3
[mm]
B
[mm]
H
[mm]
X
[mm]
Y
[mm]
Weight
approx.
[kg]
EP015R+MP 15 275 192 81 13 75 125 195 77 1.5
EP020R+MP 20 291 211 75 14 75 125 195 77 1.8
EP025R+MP 25 295 230 71 16 75 127 197 77 2.0
EP032R+MP 32 323 255 68 19 85 131 201 77 2.8
EP040R+MP 40 325 267 65 19 85 141 211 77 3.3
EP050R+MP 50 343 288 69 22 95 142 212 77 4.4
EP050R+MP -N 50 343 288 69 22 95 142 212 77 4.4
Dimensional drawings
If Y <180 mm, then the extension of the hand crank must be dismantled as necessary.
Type DN
[mm]
L
[mm]
H
[mm]
D
[mm]
d
[mm]
K
[mm]
X
[mm]
Y
[mm]
Weight
approx.
[kg]
P6065W800E-MP 65 454 200 185 4 x 19 145 220 150
28
P6080W1100E-MP 80 499 200 200 8 x 19 160 220 160
33
P6100W2000E-MP 100 582 220 229 8 x 19 180 240 175
56
P6125W3100E-MP 125 640 240 252 8 x 19 210 260 190
68
P6150W4500E-MP 150 767 240 282 8 x 23 240 260 200
93
P6065W806E-MP 65 454 200 185 4 x 19 145 220 150
28
P6080W1106E-MP 80 499 200 200 8 x 19 160 220 160
33
P6100W2006E-MP 100 582 220 229 8 x 19 180 240 175
56
P6125W3106E-MP 125 640 240 252 8 x 19 210 260 190
68
P6150W4506E-MP 150 767 240 282 8 x 23 240 260 200
93
EP..R+MP / P6..W..E-MP
Dimensions [mm] / weight
Dimensions [mm] / weight
L
H
min. X
min. Y
D
f
K
d
D
f
[mm]
191
210
254
279
318
191
210
254
279
318
*
D
f
refers to flange outside diameter of temporary replaced flow sensor body due to shortage from
the existing supplier. Replacement of the new
flow bodies will commence after all the existing stock are used up, please contact your local Sales Representative for details.
D
f
D
f
D
D
