Belimo TR24-SR-T User Manual

TRY24-SR
Rotary actuator AC/DC 24 V, 2 Nm
2 / 2 T5-TRY24-SR • en • v1.1 • 05.2010 • Subject to changes www.belimo.com
Product features
Mode of operation
The actuator is controlled with a standard modulating signal of DC 0 ... 10 V and travels to the
position dened by the control signal.
Simple direct mounting
Straightforward direct mounting on the ball valve with only one screw. The mounting position in
relation to the ball valve can be selected in 90° steps.
Manual override
Manual operation with lever possible (the gearing is disengaged for as long as the self-resetting
lever is pressed).
High functional reliability
The actuator is overload-proof and automatically stops when the end stop is reached.
The actuator switches off for seven seconds in the case of blocking, then attempts to restart. If
the blocked condition persists, the actuator attempts to restart once every two minutes a total of
15 times and subsequently once every two hours.
Combination valve actuators
Refer to the valve documentation for suitable valves, their permitted media temperatures and
closing pressures.
Further documentation
• The complete range of water solutions
• Data sheets for ball valves
• Installation instructions for actuators or ball valves, respectively
• Notes for project planning (hydraulic characteristic curves and circuits, installation regulations,
commissioning, maintenance, etc.)

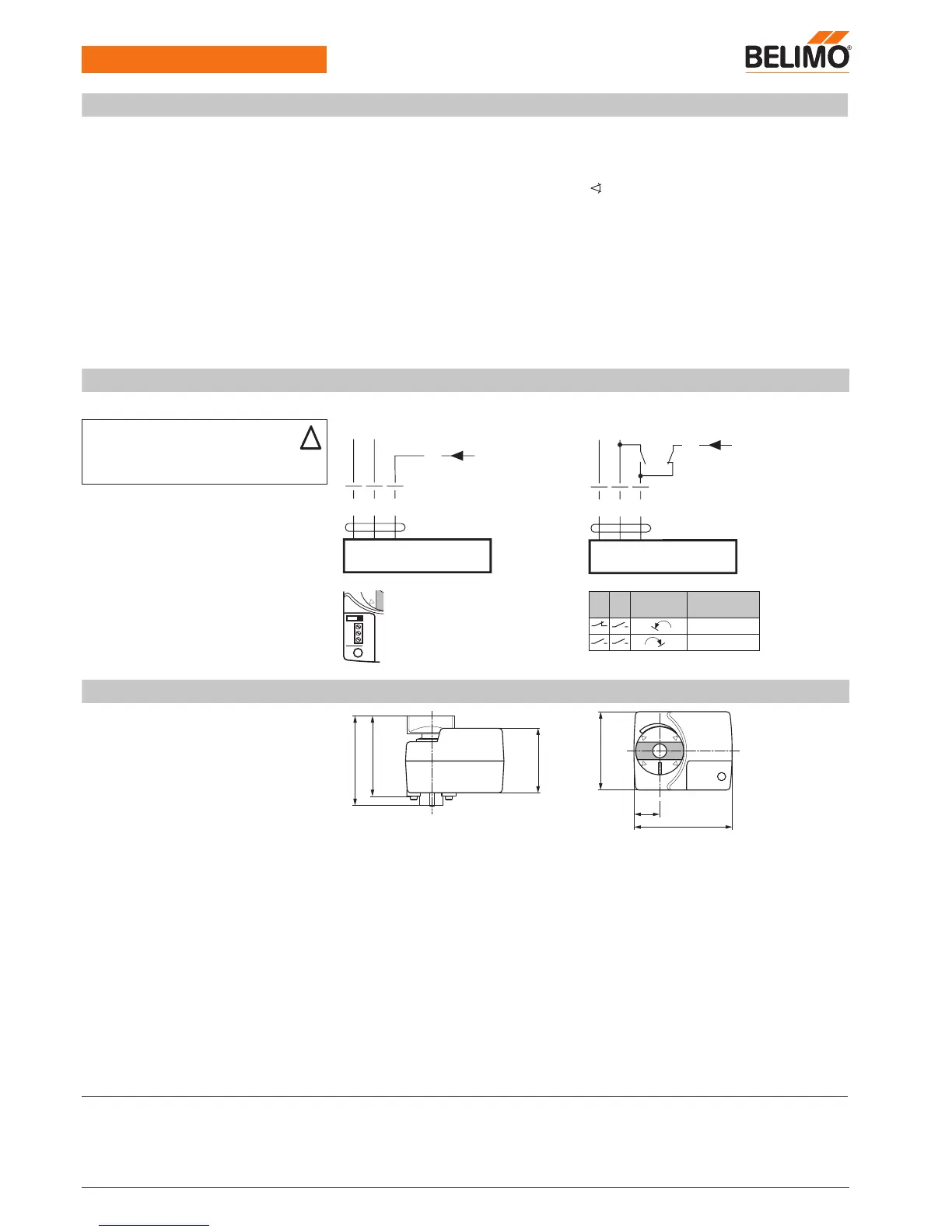

Electrical installation
Wiring diagrams Standard Override control (frost protection circuit)
Y
1
32
DC 0 ... 10 V
– +
T
~
Y
Y
1
32
DC 0 ... 10 V
– +
T
~
Y
c
d
R
1 2 3
c d
Rotary
actuator Rotary valve
1
A – AB = 100%
0
A – AB = 0%
Dimensions [mm]
Dimensional drawings
69
78
55
22
84
67
Control of controller
Direction of rotation R
(standard) with switch
position on the right
Control of controller
Information
• Connect via safety isolation transformer.
• Parallel connection of other actuators possible.
Note performance data for supply.
!
.
.
.
.
.
.
.
.
