SECTION C38.323
N
CONTACTS
SWlTCHHOOK
ASSEMBLY
P-371779
GN SPRING ASSEMBLY (CHROMIUM)
R MOUNTING SCREWS
W
BH i
YY
TERMINAL BLOCK

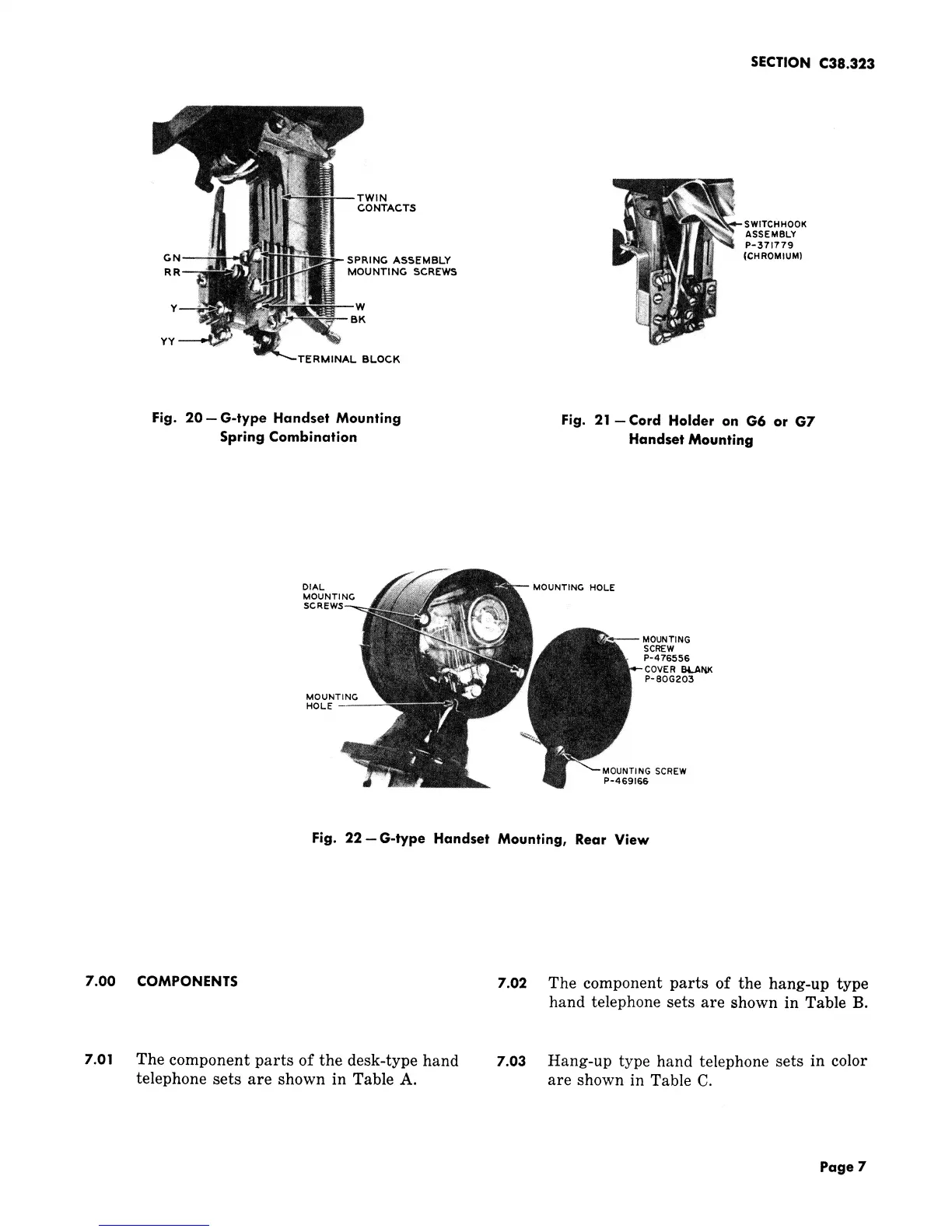

Fig. 20--G-type Handset Mounting Fig. 21-Cord Holder on G6 or G7
Spring Combination Handset Mounting
DIAL MOUNTING HOLE
MOUNTING
$CR
MOUNTING
SCREW
P-476556
COVER B4.AI_
P-80G203
MOUNTING
HOLE
MOUNTING SCREW
i P-469166
Fig. 22--G-type Handset Mounting, Rear View
7.00 COMPONENTS 7.02 The component parts of the hang-up type
hand telephone sets are shown in Table B.
7.01 The component parts of the desk-type hand 7.03 Hang-up type hand telephone sets in color
telephone sets are shown in Table A. are shown in Table C.
Page 7
