Parameters shown in Display
SCM Module
Shows type of SCM module used in CH.A and CH.B.
Impedance Mode (SCA4MR)
Shows the selected minimum output impedance (2Ω / 4Ω).
Level
Indicates the input damping as set by the Level control or via external remote controller.
Heat sink temperature
Actual operating temperatur in °C of CH.A and CH.B.
Page 2

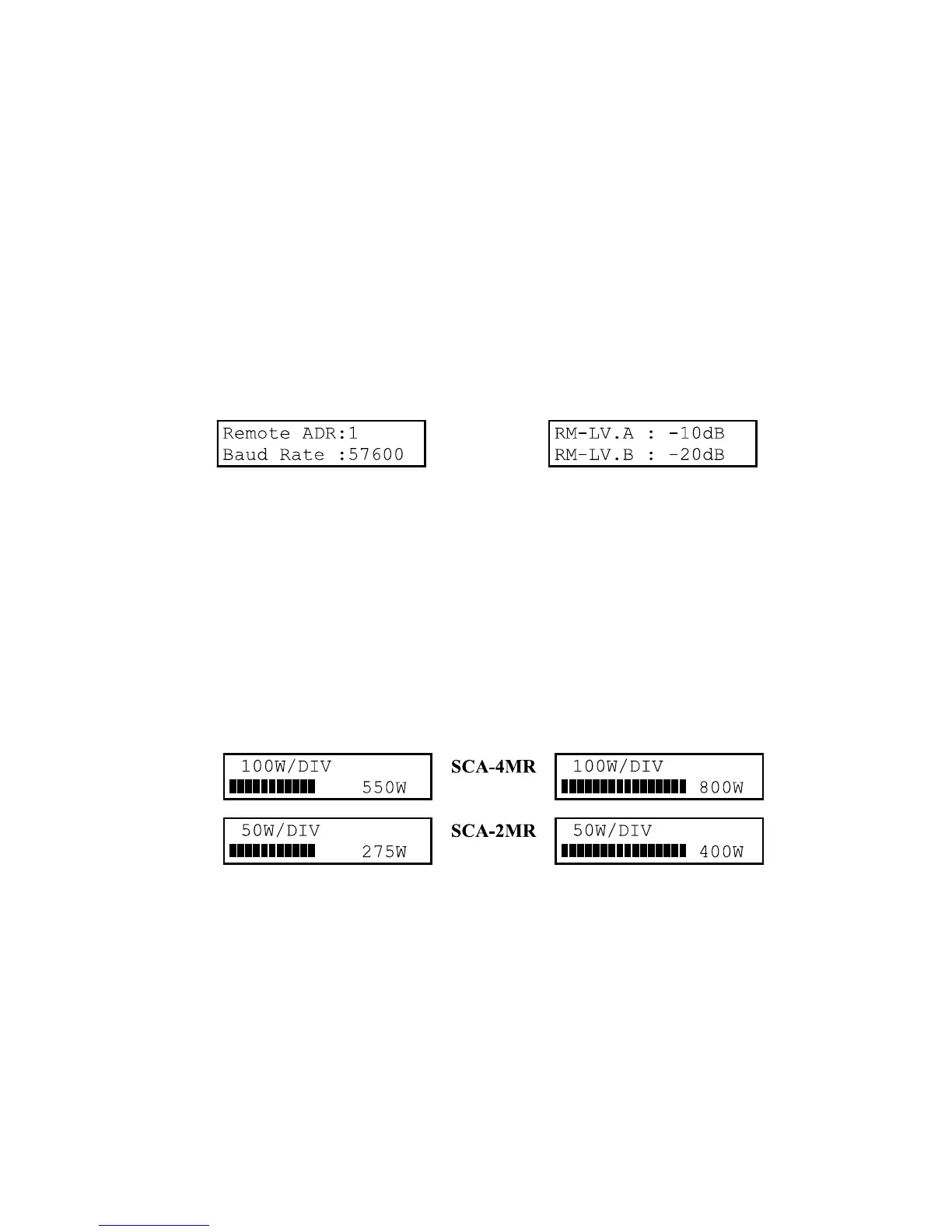

Parameters in Display
Remote address: Remote Control Address of one individual power amplifier
Baud Rate: transmission speed of the RS485 port
Remote Level: Actual Input daming set for CH.A and CH.B (display in dB)
Page 3
Parameters shown in display:
Output power
Informs the actual power output of CH.A and CH.B in Watts (True RMS / numeric plus
bargraph).
Scale of bargraph for SCA4MR is 100W / div. = 50W per segment.
Scale of bargraph for SCA2MR is 50W / div. = 25W per segment.
