PANOVISION™ SHIELD and MECHANISM

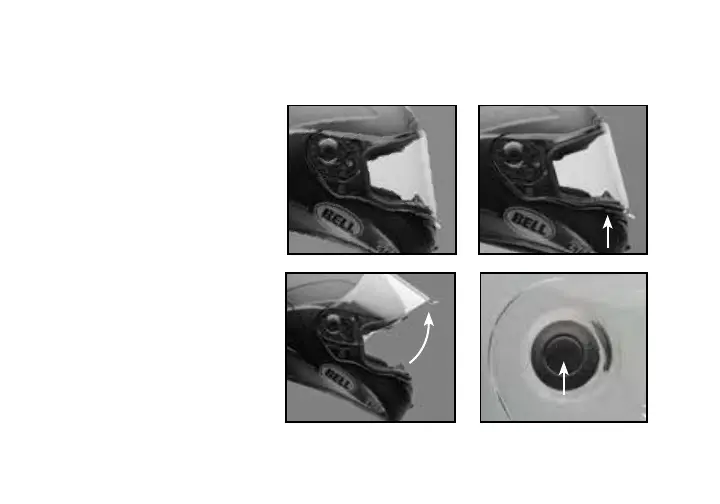

The shield mechanism is designed for quick and easy Panovision™ shield swapping as weather

or light conditions change.

1. Fully-Closed & Locked Position

2. Cracked Position

3. Fully-Open Position

4. Shield Release Button

5. Shield Pivot

6. Pivot Guide Post

7. Pivot Guide

8. Installation/Removal Ring

9. Pivot Ring

10. Pivot Track

11. Pivot Plate Screw

1 2

3 4
