Belle BMD 300 - Page 30

30

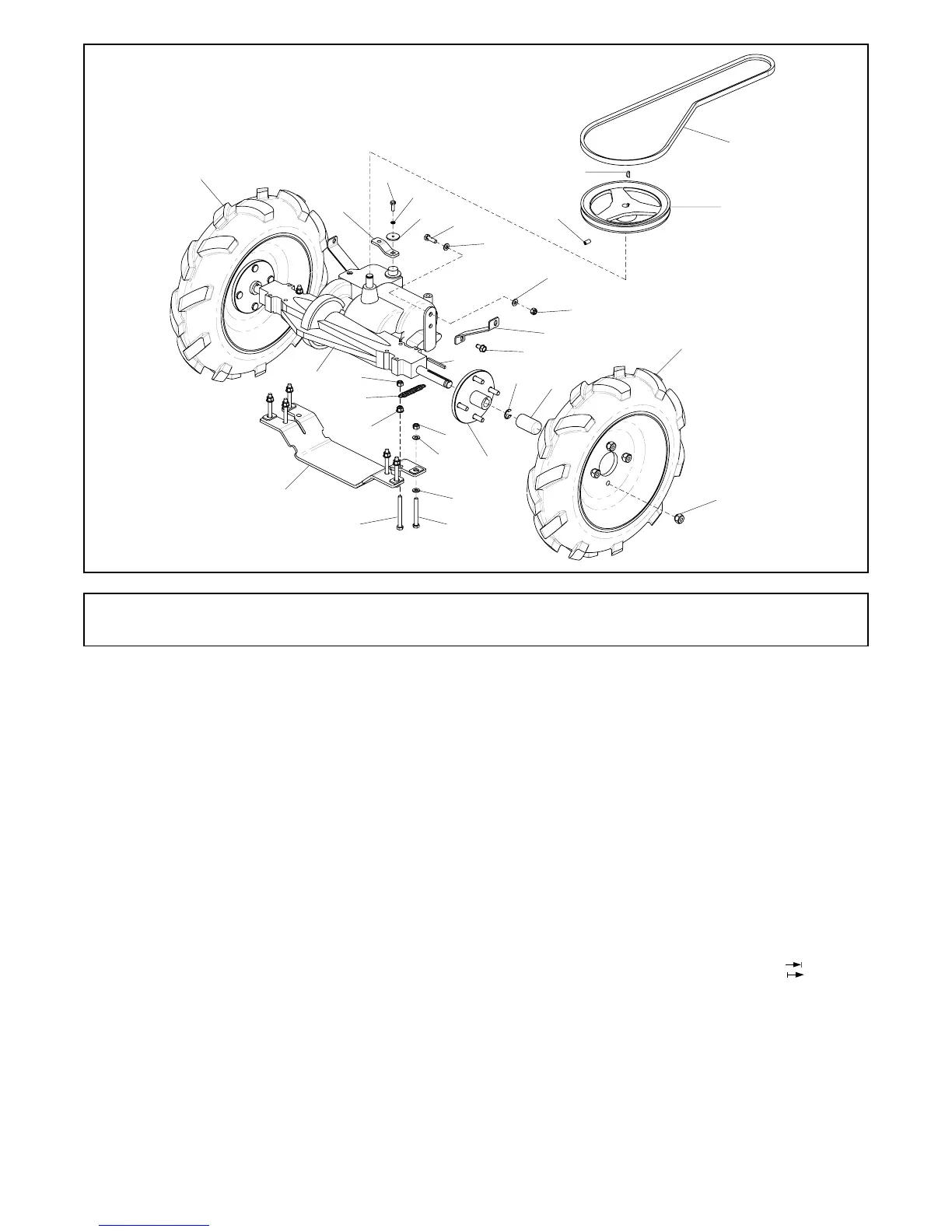

5-01
Gearkassemontage, Getriebe-Zsb.,
Versnellingsbak., Gruppo scatola ingranaggi
5-01
1 961/99922 ..........Gearkasse .........................Getriebe ........................................ Versnellingsbak............................. Scatola Ingranaggi ....................................................1
2 961/99921 ..........Wielnaaf .............................Nabe ............................................. Hjulnav .......................................... Mozza ....................................................................... 2
3 961/00400 ..........Steun ..................................Halterung ...................................... Beslag ........................................... Staffa ........................................................................ 1
4 961/99940 ..........Steun ..................................Halterung ...................................... Beslag ........................................... Staffa ........................................................................ 1
5 961/99904 ..........Steun ..................................Halterung ...................................... Beslag ........................................... Staffa ........................................................................ 1
6 06.8.003 .............Spie ...................................Keil ............................................... Kile ................................................ Chiave .............................................. 3/16”sq X 2” ....2
7 961/99923 ..........Deksel ................................Abdeckung .................................. Kappe .......................................... Coperchio ................................................................. 2
8 3/1017 ................Clip .....................................Klem ............................................. Klemme......................................... Fermaglio ......................................... 5/8” .................2
9 60/0438 ..............Wiel - Rechts ......................Rad - Rechts ................................ Hjul - Højre.................................... Ruota - Lato Destro .................................................. 1
9A 60/0444 ..............Banden & Buis ...................Reifen & Rohrstück ...................... Dæk & Rør .................................... Gomme & Tubo ......................................................... 1
9B 60/0445 ..............Buis ....................................Rohrstück ..................................... Rør ................................................ Tubo ..........................................................................1
10 60/0436 ..............Wiel - Links.........................Rad - Links ................................... Hjul - Venstre ................................ Ruota - Lato Sinistro .................................................1
11 9/8022 ................Bouten ................................Bolzen .......................................... Skruebolt....................................... Bullone ............................................. M8 X 70 .......... 7
12 4/8006 ................Afdichtring ..........................Scheibe ........................................ Spændeskive ................................ Rondella ........................................... M8 ................ 18
13 8/8008 ................Moer ...................................Mutter ........................................... Møtrik ............................................ Dado ................................................ M8 ................. 10
14 21/0249 ..............Poelie .................................Riemenscheibe ............................. Remskive ...................................... Puleggia ....................................................................1
15 7/8063 ................Schroef ...............................Schraube ...................................... Skrue ............................................ Vite ................................................... 8 x 16 ..............1
16 961/99929 ..........Spie ...................................Keil ............................................... Kile ................................................ Chiave .............................................. 16 X 4 .............1
17 961/99937 ..........Moer ...................................Mutter ........................................... Møtrik ............................................ Dado ......................................................................... 8
18 7/8059 ................Schroef ...............................Schraube ...................................... Skrue ............................................ Vite ................................................... M8 X 12 .........2
19 21/0247 ..............Riem ...................................Riemen. ........................................ Rem .............................................. Cinghia ......................................................................1
20 9/8048 ................Bouten ................................Bolzen .......................................... Skruebolt....................................... Bullone ............................................. M8 X 80 ......... 1
21 7/8060 ................Bouten ................................Bolzen .......................................... Skruebolt....................................... Bullone ............................................. M8 X 20 .......... 1
22 7/6038 ................Schroef ...............................Schraube ...................................... Skrue ............................................ Vite ............................................................................1
23 4/6015 ................Afdichtring ..........................Scheibe ........................................ Spændeskive ................................ Rondella ........................................... 30 X 6.2 X 3 ...1
24 961/99930 ..........Plaat ...................................Platte ............................................ Plade............................................. Piastra ..............................................
141423 .... 1
24 961/99944 ..........Plaat ...................................Platte ............................................ Plade............................................. Piastra ..............................................
141424 .... 1
25 961/99925 ..........Veer ....................................Feder ............................................ Fjeder............................................ Mola .......................................................................... 1
26 4/6005 ................Afdichtring ..........................Scheibe ........................................ Spændeskive ................................ Rondella ........................................... M6 ...................1
Not Shown
27 961/99988 ..........Vang Onderplaat ................Bremsschuhe ............................... Klodsbremse ................................ Tampone di Freno ..................................................... 2
9
20 11
12
12
13
2
17
7
8
18
4
19
14
16
13
12
15
12
21
23
26
22
24
25
3
13
1
13
6
9A
9B
10
9A
9B
