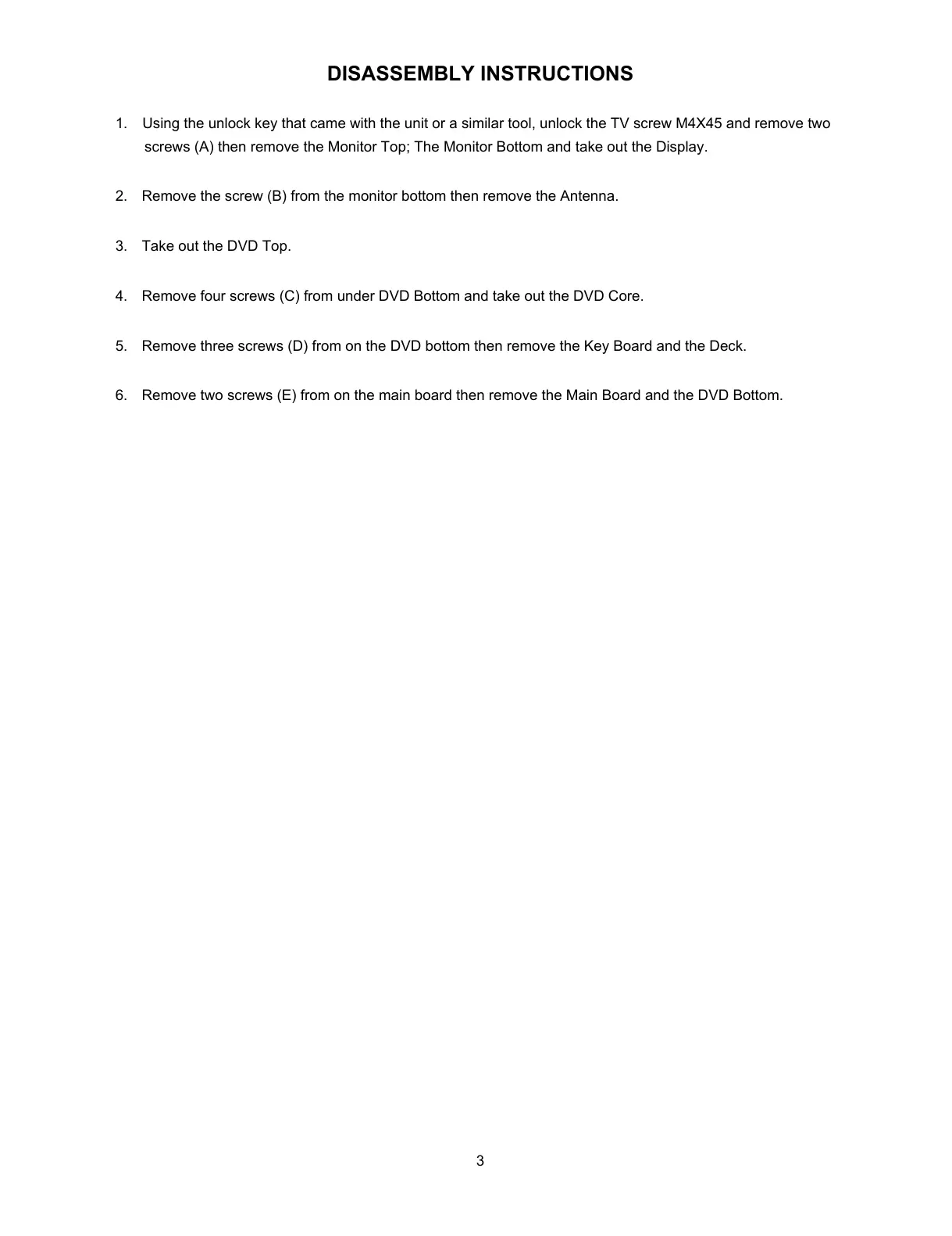

DISASSEMBLY INSTRUCTIONS
1. Using the unlock key that came with the unit or a similar tool, unlock the TV screw M4X45 and remove two
screws (A) then remove the Monitor Top; The Monitor Bottom and take out the Display.
2. Remove the screw (B) from the monitor bottom then remove the Antenna.
3. Take out the DVD Top.
4. Remove four screws (C) from under DVD Bottom and take out the DVD Core.
5. Remove three screws (D) from on the DVD bottom then remove the Key Board and the Deck.
6. Remove two screws (E) from on the main board then remove the Main Board and the DVD Bottom.
