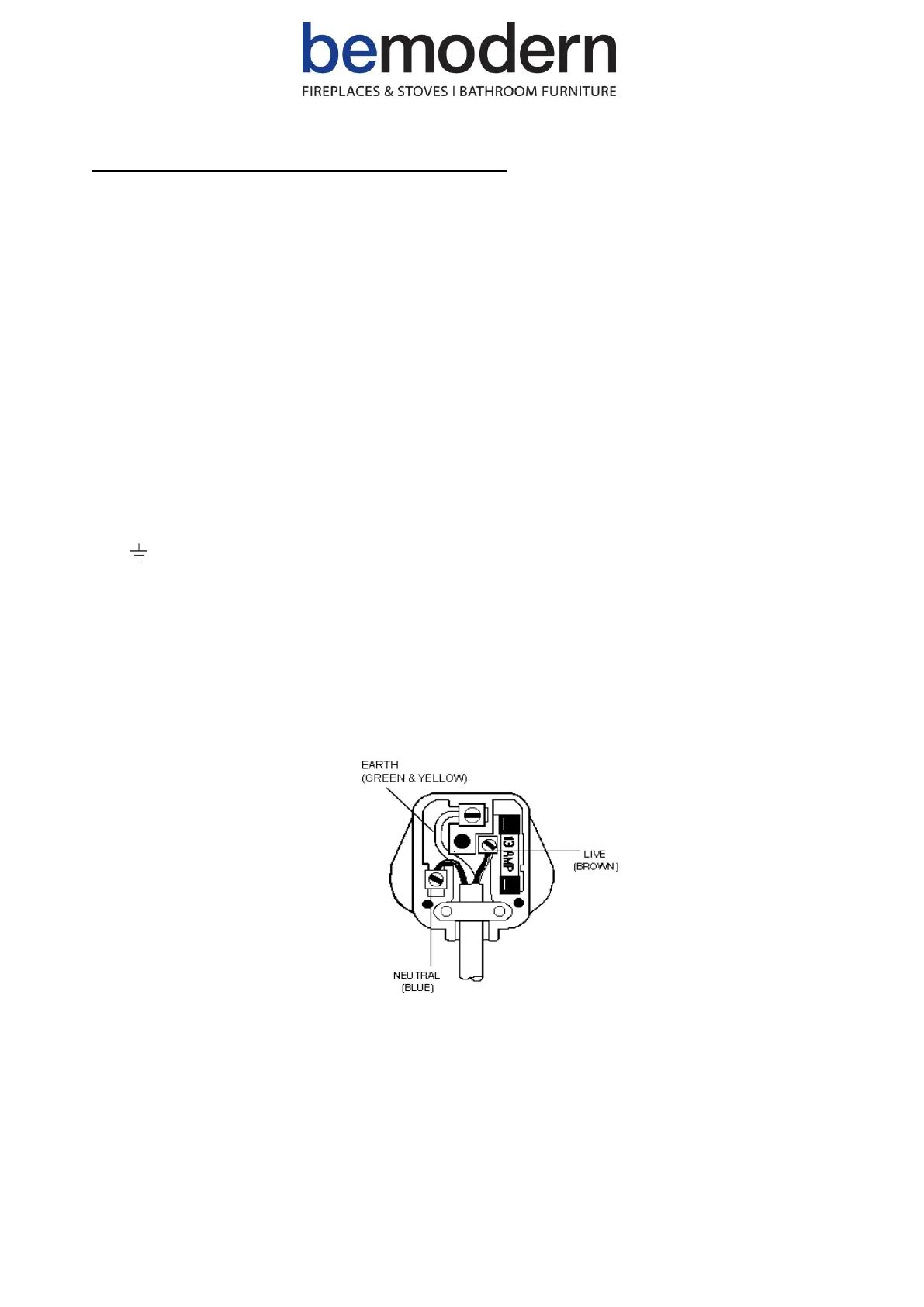

Electrical Connections - UK Plug Wiring Instruction
· If the plug has to be changed because it is not suitable for your socket, or due to damage, please follow the
wiring instructions shown below.
· The wires in the mains lead are coloured in accordance with the following code:
BROWN : LIVE (L)
BLUE : NEUTRAL (N)
GREEN / YELLOW : EARTH (E)
As the colours of the wires in the mains lead of this appliance may not correspond with the
coloured markings identifying the terminals in your plug, as follows
· The BLUE wire is the NEUTRAL and must be connected to the terminal which is marked with the letter N or
coloured BLACK.
· The BROWN wire is the LIVE and must be connected to the terminal that is marked with the letter L or coloured
RED.
· The wire which is coloured GREEN / YELLOW must be connected to the terminal which is marked E or the earth
symbol or coloured GREEN or GREEN / YELLOW.
· Always ensure that the cord grip is positioned and securely fastened.
· WARNING: THIS APPLIANCE MUST BE EARTHED.
· If a 13A (BS1363) fused plug is used it must be fitted with a BS1362 13A fuse. If in doubt
consult a qualified electrician.
