S.p.A. FT 7500
3
IDENTIFICATION AND TECHNICAL CHARACTERISTICS
Model: FT 7500
Weigh: 131 Kg.
Motor: 4 tempi
Make: BRIGGS & STRATTON
Model: HP 8,5
Swept volume: 319 cc.
Max. power to driving shaft:
8,5 HP (Kw 6,25)
Model: FT 7500 H
Weight: 135 Kg.
Motor: 4 tempi
Make: HONDA
Model: GXV 270
Swept volume: 270 cc.
Max. power to driving shaft:
8,5 HP (Kw 6,25)
• Fuel for 4-stroke engine: Petrol 100/130 Octane
• Transmission: belt-clutch with tightener and worm with oil
bath gearbox
• Start-up with self-winding cord
• Dry air filter
• 4-STROKE ENGINE OIL : AGIP DIESEL SIGMA SAE 30 0.6 l
• 2 forward speeds with clutch lever and 1 reverse motion
• Blade engagement lever on handle
• Electrical safety stop above hand clutch
• Handle with vertical and transverse adjustment
• Cutting height adjustment in 5 positions
• Rubber wheels with air tube type 16/650.B” disk 5.00.8 (vespa flange)
• Speed: first forward speed: 2,25 Km/h; second forward speed: 4 Km/h; reverse motion: 1,9 Km/h
• Cutting width: c m. 65
• It is possible to have a support with height adjustable wheel instead of the front bumper. (See fig.
13)

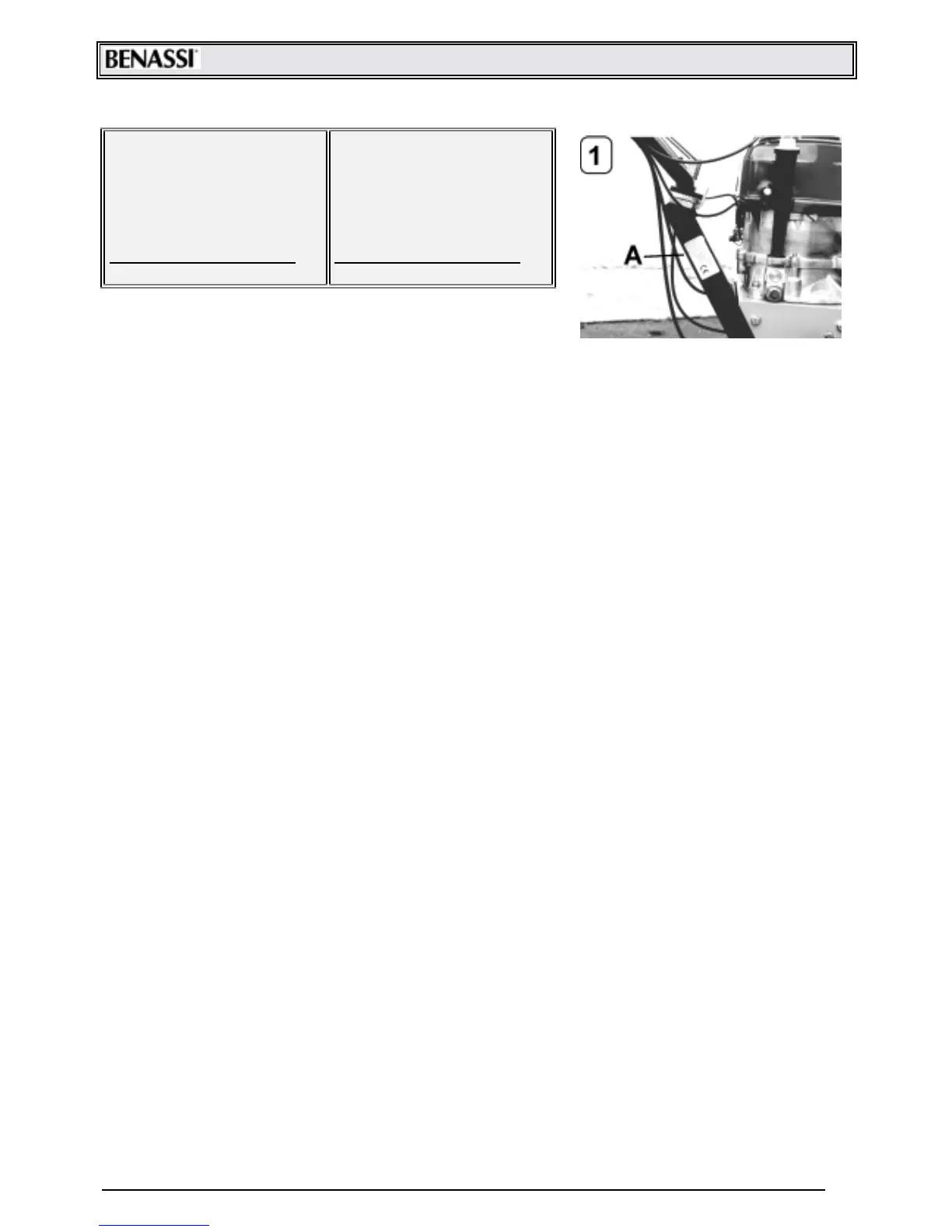

For machine identification (serial number, engine, weight, power) read the data plate as shown in
the photo. See Picture 1, Ref."A".
PACKING AND TRANSPORT
◊ WIDTH: 130 cm
◊ DEPTH: 80 cm
◊ WEIGHT: 80 cm
⇒ The machine is delivered in its own packing.
⇒ The machine is delivered with oil in the gearbox.
⇒ After unpacking the high grass mower, fasten the handle to the handle support using the screws
provided, and adjust the height to the most comfortable position
⇒ Fasten the bumper slide by two screws Ref. 15 of the picture with captions page 2 onto its
supports Ref. C Pics. 5. Lock it in the wished position by means of the knob Ref. A Fig. 5.
⇒ Ensure that the blade engagement lead "D" is not tightened when the blade is disengaged. If it
is tightened, move the register of the tightening pulley under the hood Ref. B Pics.2
⇒ For transporting convenience, the handle may be disassembled by unscrewing the two knobs
(Ref. "A" Pics 4).
⇒ During the operations of transport, it is necessary to:
1. disconnect the blade
2. switch off the engine
3. take off the cable of the sparking plug (see ref. 18 in the picture at page 2), in order to prevent
the engine to sw itch on accidentally.
