Installation, connection and commissioning

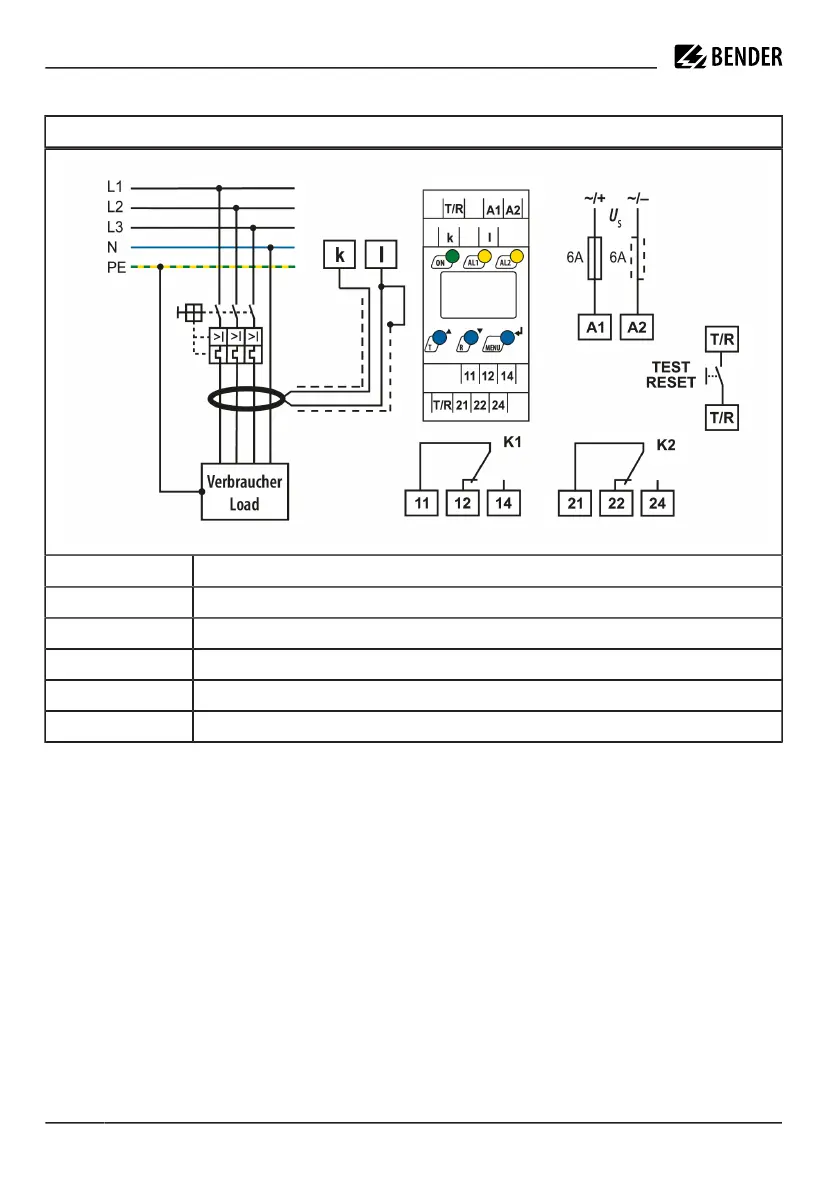

Wiring diagram
Terminal Connections
A1, A2 Connection to supply voltage
k, l Connection of measuring current transformers
T/R Connection to the combined test/reset button
11, 12, 14 Alarm relay K1
21, 22, 24 Alarm relay K2
12 RCM420_D00057_06_M_XXEN/12.2023
