BendPak XPR-10S Service Manual

8015
2
3
1
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
E
WAS 8040 NOW 8015, REPLACED 5570110
WITH 5570129 TO REFLECT INVENTORY,
UPDATED TITLE TO REFLECT WHERE USED AND
NEXT ASSEMBLIES
11/20/2014 TM 00673
F
UPDATED TITLE TO REFLECT MARKETING,
UPDATED NEXT ASSEMBLY
12/01/2015 TM 00738
G
UPDATED TITLE TO REFLECT STANDARDS,
UPDATED NEXT ASSEMBLY
01/15/2020 TM 01107
NEXT ASSEMBLY
5250088
5250xxx 1107
ITEM NO. PART NUMBER DESCRIPTION QTY. REV
1 5570129 Ø6.4 ID HYDRAULIC HOSE 7965mm* --
2 5550325 FTG NPL Ø1/4 CRIMP x -04 JIC 1 --
3 5550345 FTG ELB Ø1/4 CRIMP x -04 JIC 1 --
WHERE USED
10AP
XPR-10S
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
G
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
GJ
5570038

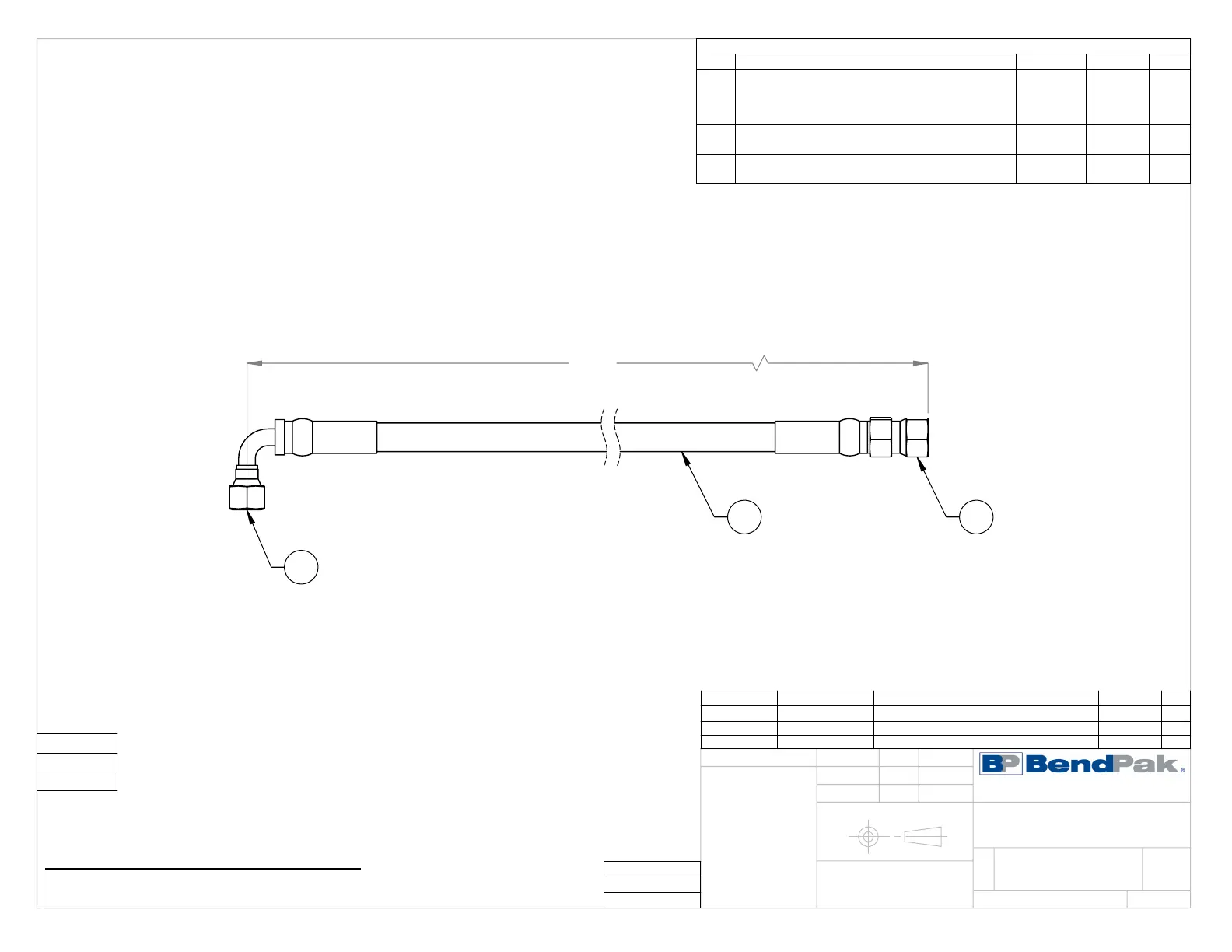

HYDRAULIC HOSE ASSEMBLY
Ø6.35 x 8015 SB
10/22/2008
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
OR 04/10/2020
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED .
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 1.
ITEM 1 QTY FOR REFERENCE ONLY 2.
