TRANSMISSION CHAIN AND SWING ARM
4
103
CHAS

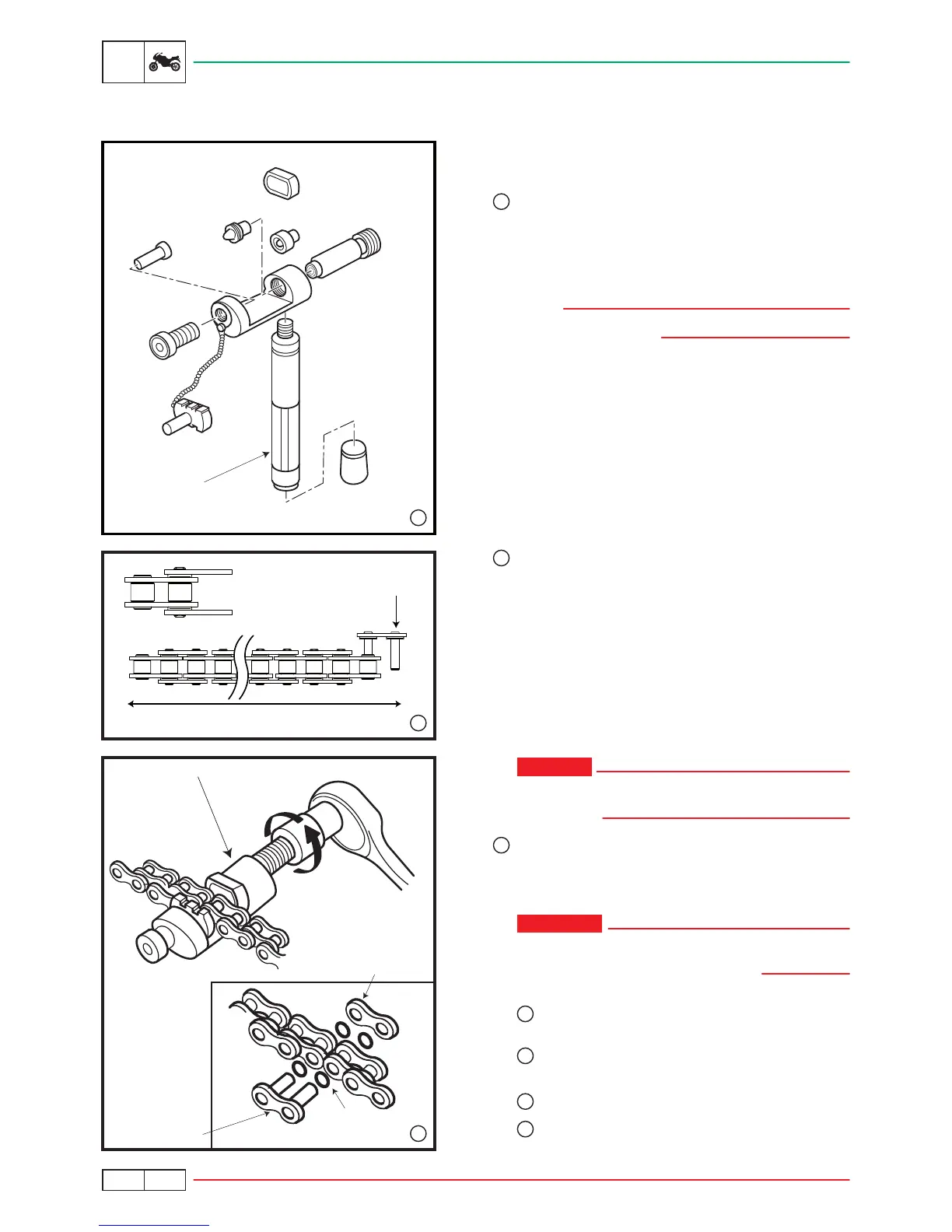

TRANSMISSION CHAIN REPLACE-
MENT
Loosen:
• the transmission chain
This chain uses a master link transmission chain with
safety jump ring.
Using the provided tool according to the chain
manufacturer specifications.
1
STANDARD NUMBER OF LINKS: 108
2
1
Insert:
• the master link
• the O-Rings
• the jump ring
3
3
NOTE:
Following the manufacturer instructions when
using the special tool.
2
TRANSMISSION
CHAIN TOOLS SET
TRANSMISSION CHAIN TOOLS SET
JUMP RING
O-RING
MASTER LINK
108 LINKS
MASTER
LINK
LINK
WARNING
Do not reuse the old transmission chain, the
master link, the jump ring of the master link and
the O-Rings.
ATTENTION
Insert the master link from inside the transmission
chain, therefore apply the jump ring with the
identification mark facing outwards.
Assemble and fix the tools set for the transmission
chain.
Ensure that the pins of the master link are correctly
assembled.
Clinch the master link pins sideways.
Ensure that the pins are correctly spotted.
a
b
d
c
