Benelli 2009 TREK1130 User Manual

DRAIN PLANT
DRAIN COLLECTOR DECOMPOSITION
4
157

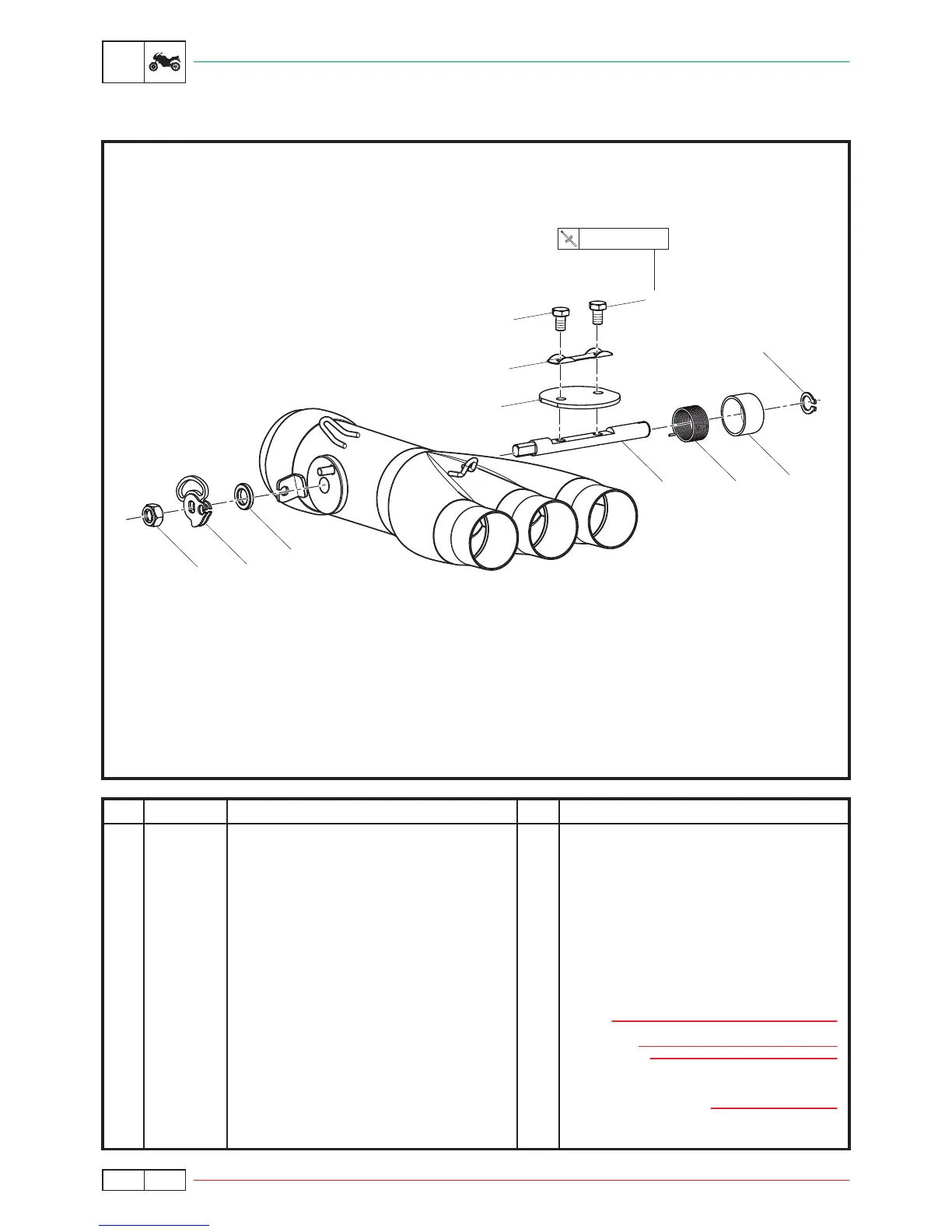

Drain Collector Decomposition
Elastic Ring
Drain Valve Cap
Spring
Nut
Drain Valve Flange
Washer
Screw
Plate
Drain Valve
Drain Valve Shaft
SQ.
SYMBOLS
INTERVENTION/DESCRIPTION
Q.TY
OBSERVATIONS
1
2
3
4
5
6
7
8
9
10
1
1
1
1
1
1
2
1
1
1
Remove the pieces in the given order.
Spread the wings of plate n. 8 to free the heads of
screws n. 7.
NOTE:
To install, invert the order of the removal
operations.
ATTENTION:
To install, after having installed screws n. 7,
tighten the wings of plate n. 8 on the hexagonal
sides of the screws.
Manually fasten nut n. 4.
2
CHAS
3
10
1
9
8
7
7
4
5
6
T
.
R.
12 N m - 1.22 Kgf•m
