START-UP
Z25 GEAR/SPLINED SHAFT, FEMALE
COLLAR JOINT REMOVAL
5
128
Clutch Lid Removal
Clutch Removal
Clutch Command Removal
Water Pump Removal
Alternator Removal

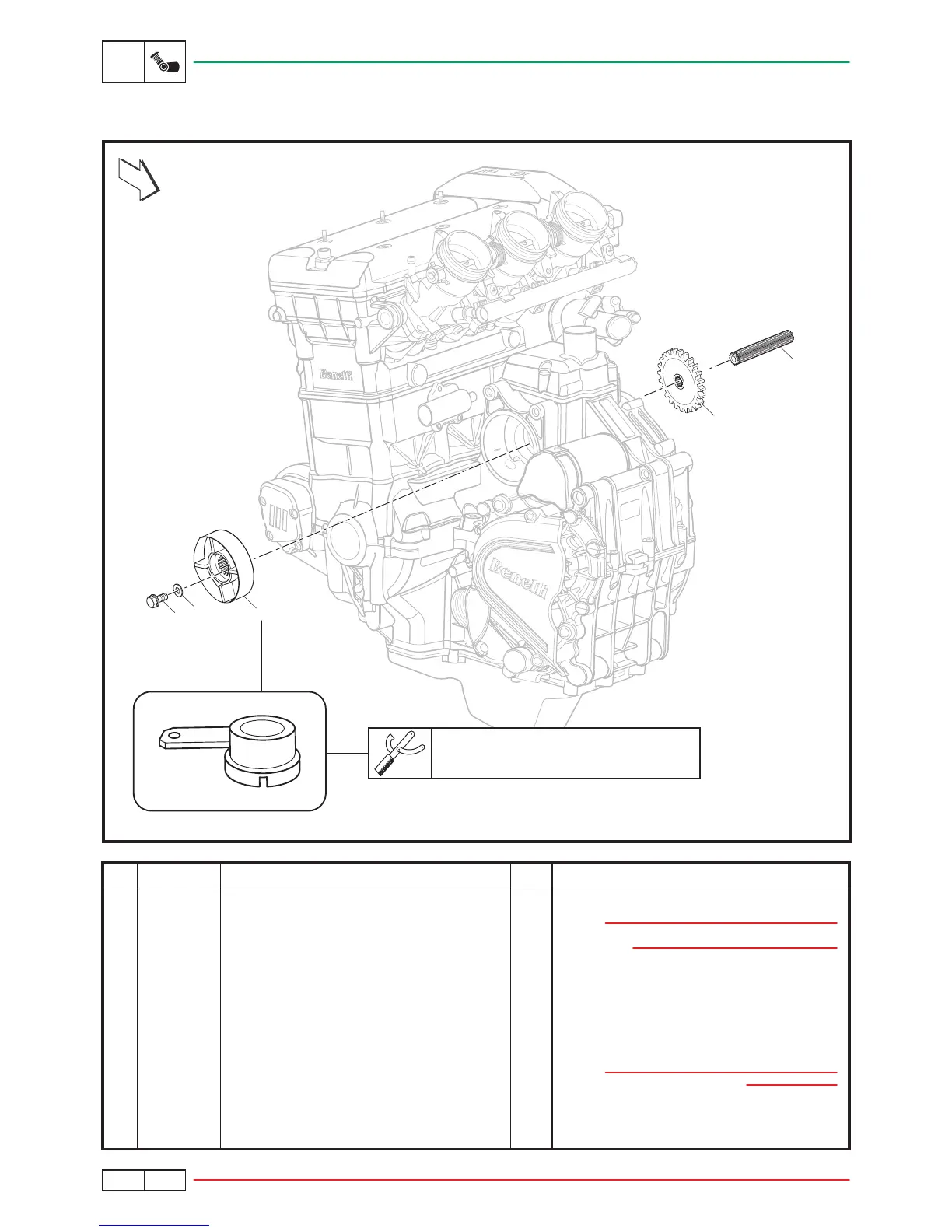

Female Collar Joint Removal
Screw
Washer
Female Joint
Z25 Gear/Splined Shaft Removal
Splined Shaft
Z25 Gear
SQ.
SYMBOLS
INTERVENTION/DESCRIPTION
Q.TY
OBSERVATIONS
1
2
3
4
5
1
1
1
1
1
Remove the pieces in the given order.
NOTE:
Drain the engine oil before carrying out the
operations.
See paragraph "5.69"
See paragraph "5.71"
See paragraph "5.88"
See paragraph "COOLING PLANT 6.15"
See paragraph "5.122"
NOTE:
Remove it using the special tool.
1
2
3
4
5
ENG
Special Tools: ALTERNATOR SPANNER
Code: R300097161000
