FRONT FORK

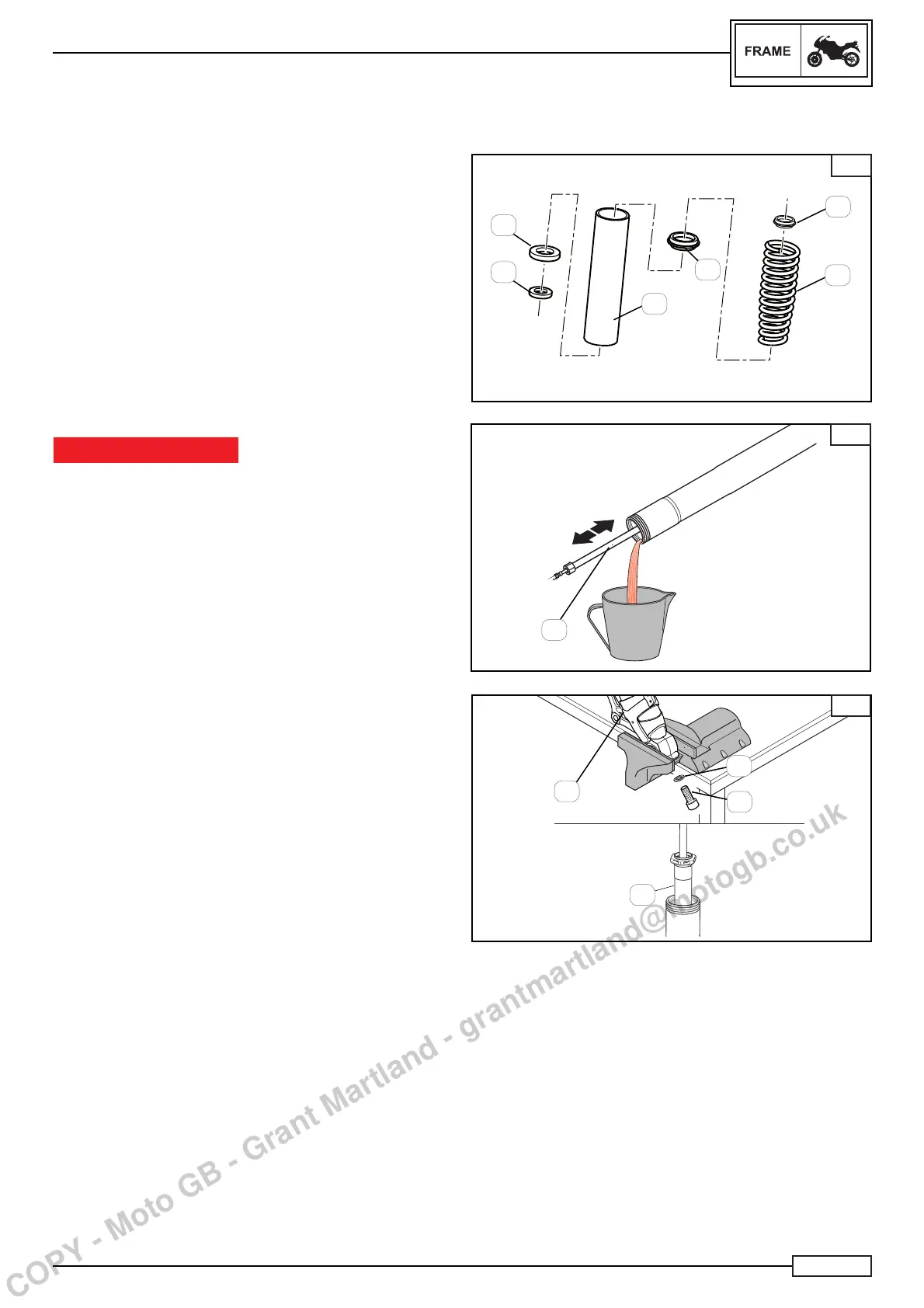

FRONT FORK STEM DISASSEMBLY
Slide out from inside the sleeve Fig. C:
• The tip (2)
• The spring (5)
• The bush (6)
• Shim (7)
• The lower bush (8)
• The tip (9).
Release:
• The rod from the clamp
• Turn the rod towards a suitably sized container so as to
allow the oil it contains to fl ow out Fig. D.
NOTE:_________________________________
To help drain the rod, it is necessary to pump a few times by
pushing the pump rod forwards and backwards (15) Fig. D.
IMPORTANT NOTICE
This operation is only necessary after draining the oil from
inside the rod.
• Lock the wheel shoe (A) in a clamp Fig. E.
Remove:
• The screw (18) fastening the pump unit (15)
• The washer (17)
• The pump unit (15)
C
D
8
9
2
5
7
6
15
E
A
15
18
17
