Benelli TRK 502 Service Station Manual

1 - 11

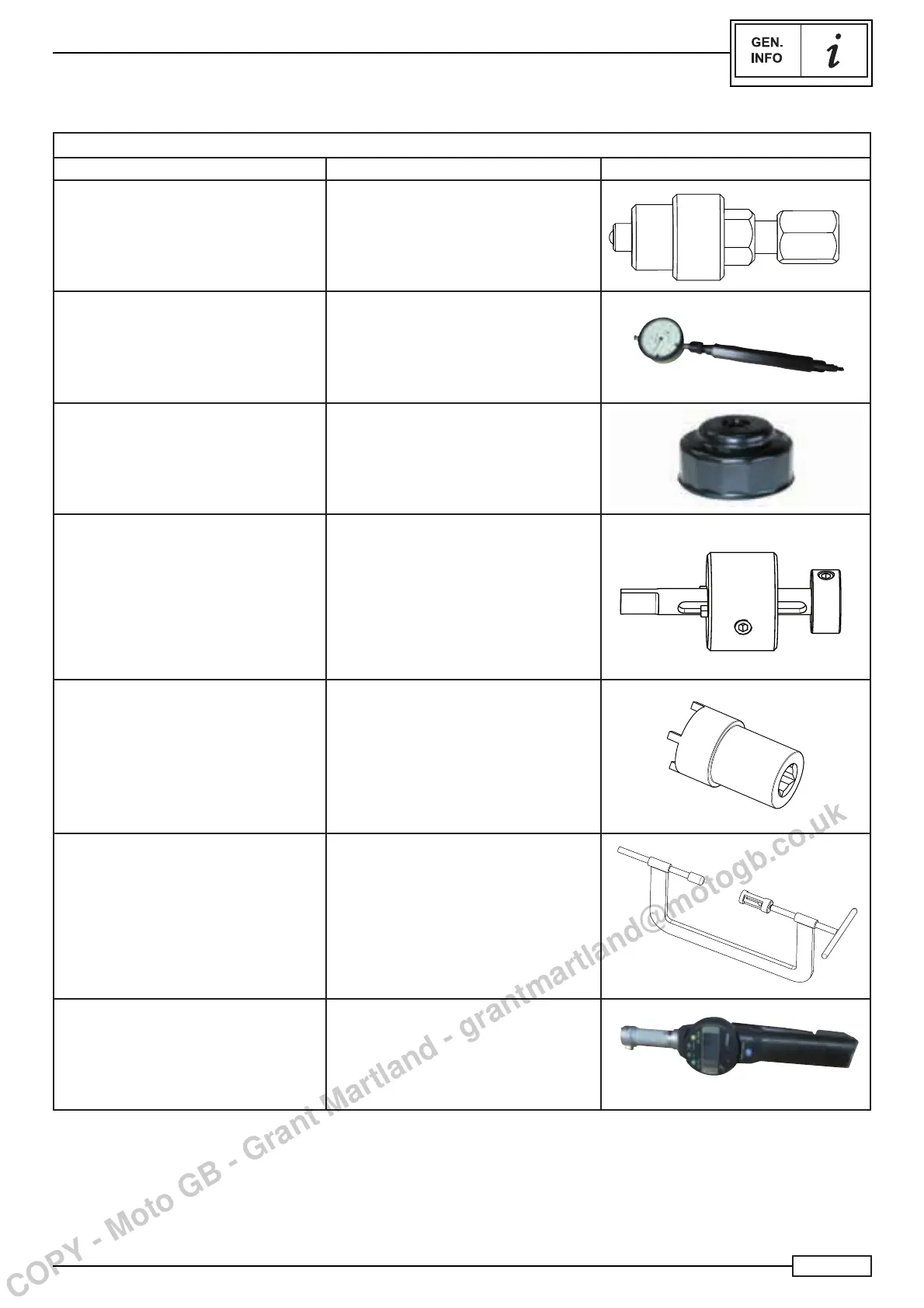

SPECIAL TOOLS
ENGINE SPECIAL TOOLS
Tool Code Tool Name-Function Image
0320097045000
Flywheel cover extractor
This tool serves to extract the fl ywheel
housing cover.
R180197022000
Engine phasing tool
This tool serves to determine the position
of the top dead centre.
Standard tool commonly found
Oil fi lter tool
This tool serves to tighten or disassemble
the engine oil fi lter.
0320097046001
Chain tensioner lock tool
This tool serves to lock the tensioning pis-
ton during the assembly phase of the chain
tensioner.
03200097052000
Tool to remove/assemble the clutch bell
ring nut
This tool is used to disassemble/assemble
of the notched ring nut, which clamps the
clutch bell.
0320097050000
Valve spring compressor tool
This tool is used to remove the valve
springs.
Standard tool commonly found
Measuring tool commonly found
This tool is used to measure the hole inner
dimensions.
COPY - Moto GB - Grant Martland - grantmartland@motogb.co.uk

Benelli TRK 502 Specifications

General

Displacement	500 cc
Transmission	6-speed
Fuel Tank Capacity	20 liters
Seat Height	800 mm
Wet Weight	235 kg
Bore x Stroke	69 mm x 66.8 mm
Compression Ratio	11.5:1
Clutch	Wet multi-plate
Frame	Steel trellis
Wheelbase	1505 mm
Ground Clearance	190 mm
Max Power	47.6 hp (35 kW) @ 8500 rpm
Max Torque	46 Nm @ 6000 rpm
Front Suspension	50 mm upside-down fork
Front Brake	Double floating discs, 320mm, 4-piston calipers
Rear Brake	Single 260 mm disc
Fuel System	Electronic Fuel Injection (EFI)
ABS	Dual-channel ABS
Front Tire	120/70 R17
Rear Tire	160/60 R17
Engine Type	Liquid-cooled, four-stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
