BENETEAU FIRST 45 - Page 85

81

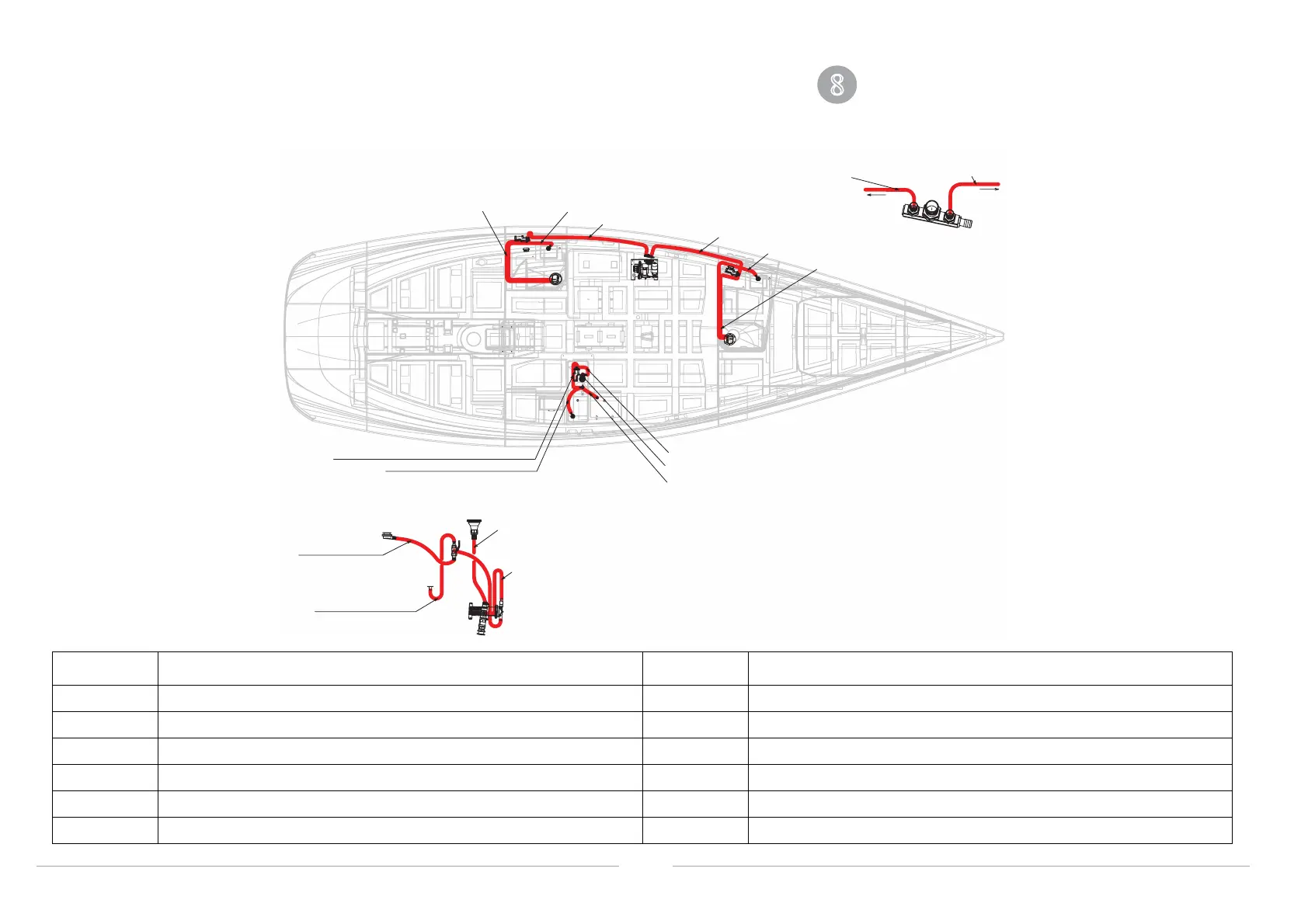

Water and sewage water
8
Water system Drainage
REF Designation REF Designation
19 Shower draining / Port aft pump 25 Cooler emptying by pump Icebox drainage
20 Hand sink evacuation in port aft shower 26 Dishrack evacuation by gate valve
21 Shower pump evacuation by port aft collector 27 Cooler pump emptying by collector
22 Shower pump evacuation by port bow collector 28 Sink evacuation by gate valve
23 Hand sink evacuation in port bow shower 29 Cooler evacuation by 3-way gate valve
24 Shower evacuation by port bow pump
19
20
21
22
21
22
23
24
25
26
27
28
29
26
29
28
25
